Wiring Diagrams

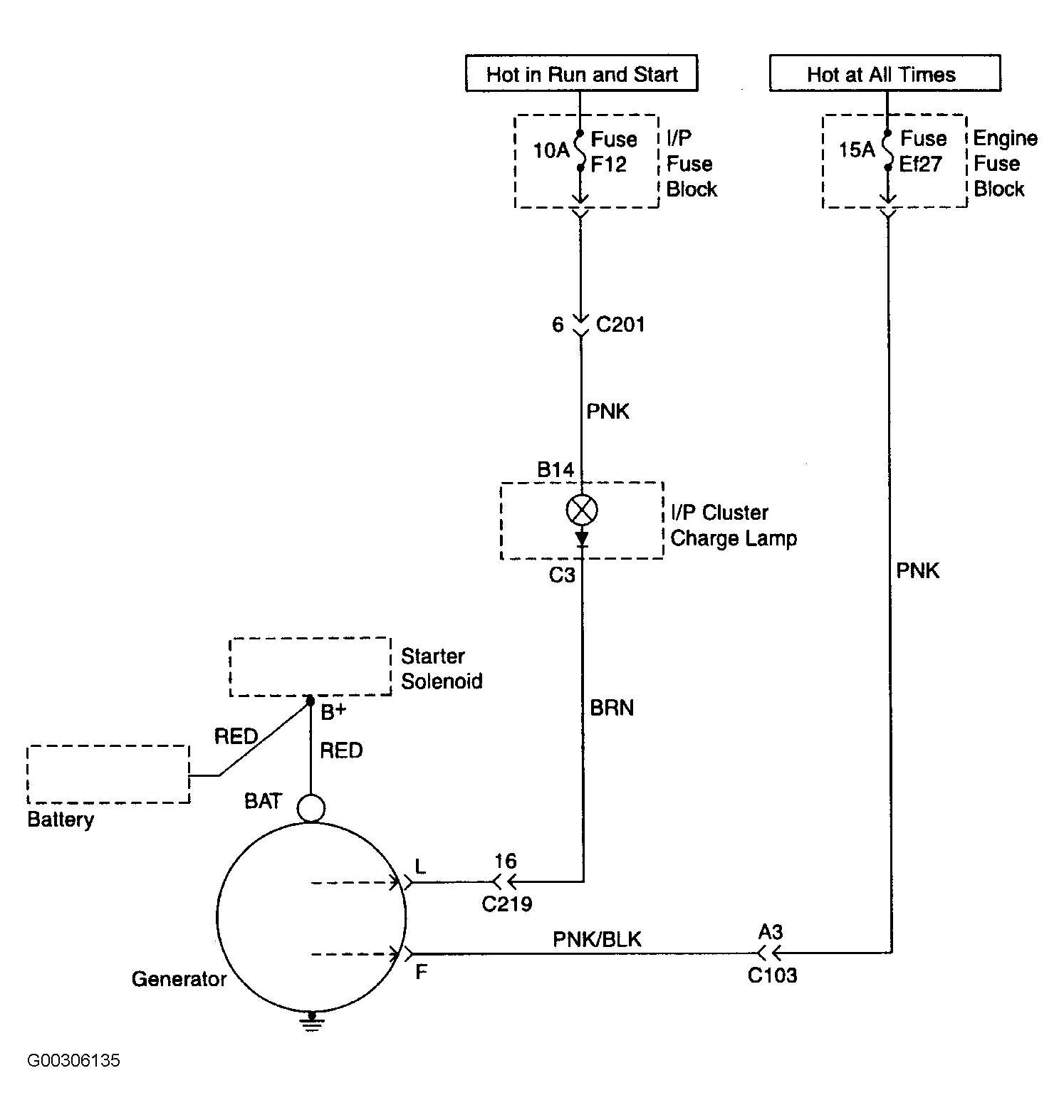

Fig 1: Charging System Wiring Diagram (2004 Verona)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
