Electrical Schematic Diagram

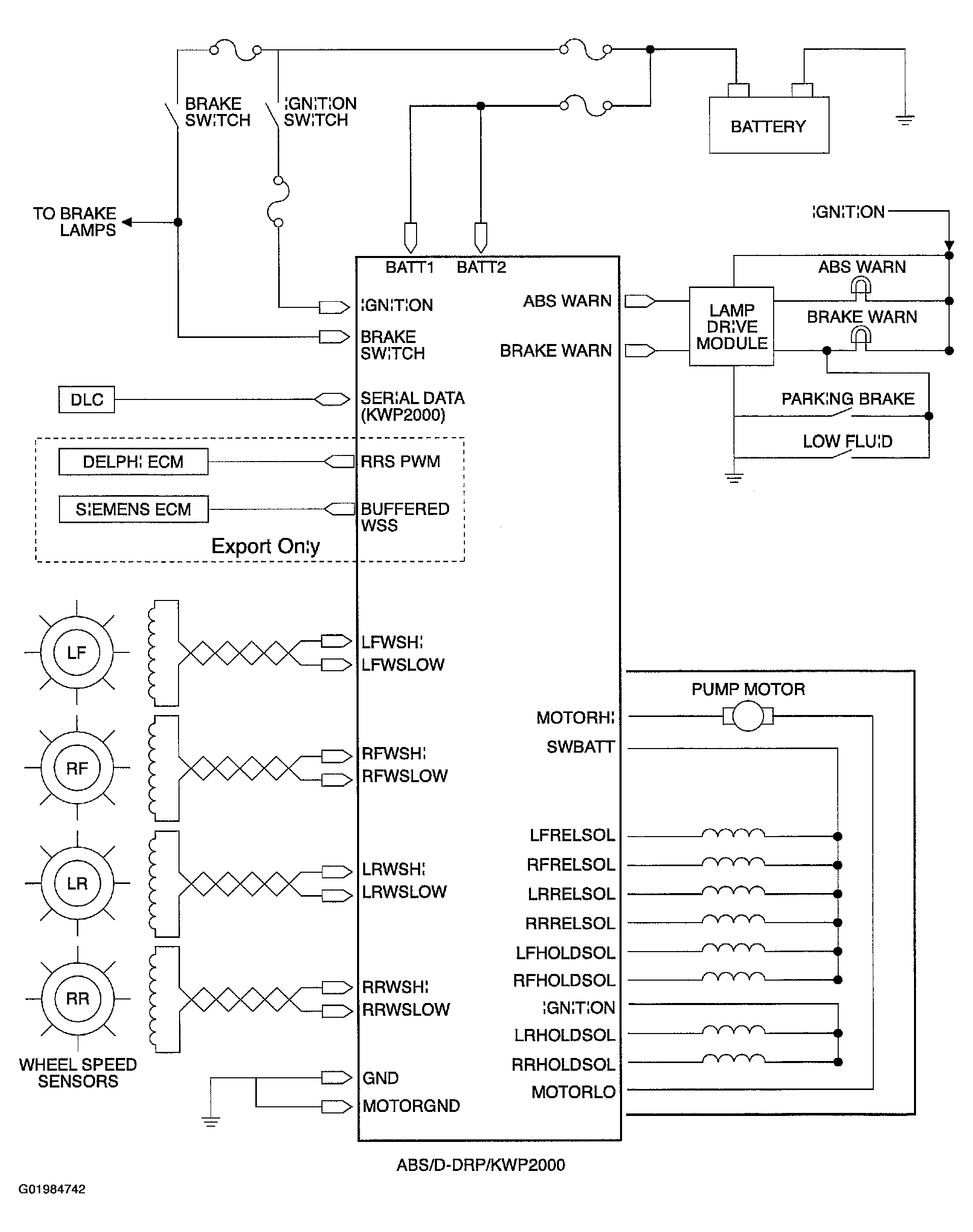

Fig 1: Electrical Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
