EBCM Harness Connector End View and Pin Layout Diagram

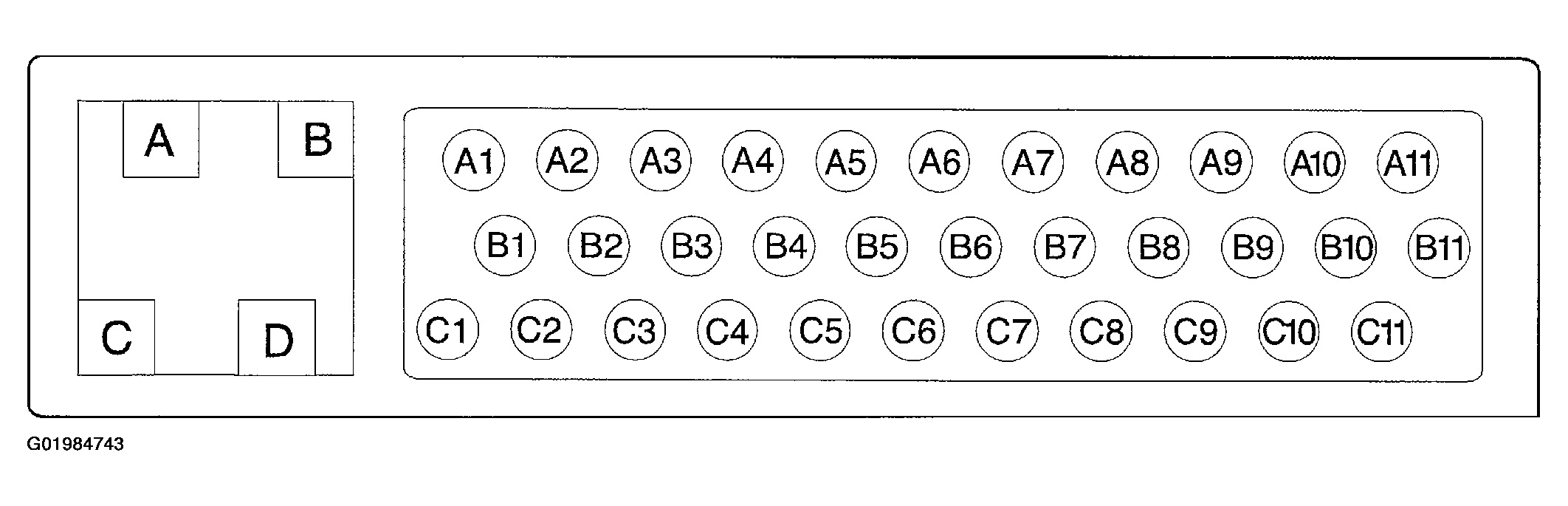

Fig 1: EBCM Harness Connector End View & Pin Layout Diagram
G01984743Courtesy of SUZUKI OF AMERICA CORP.

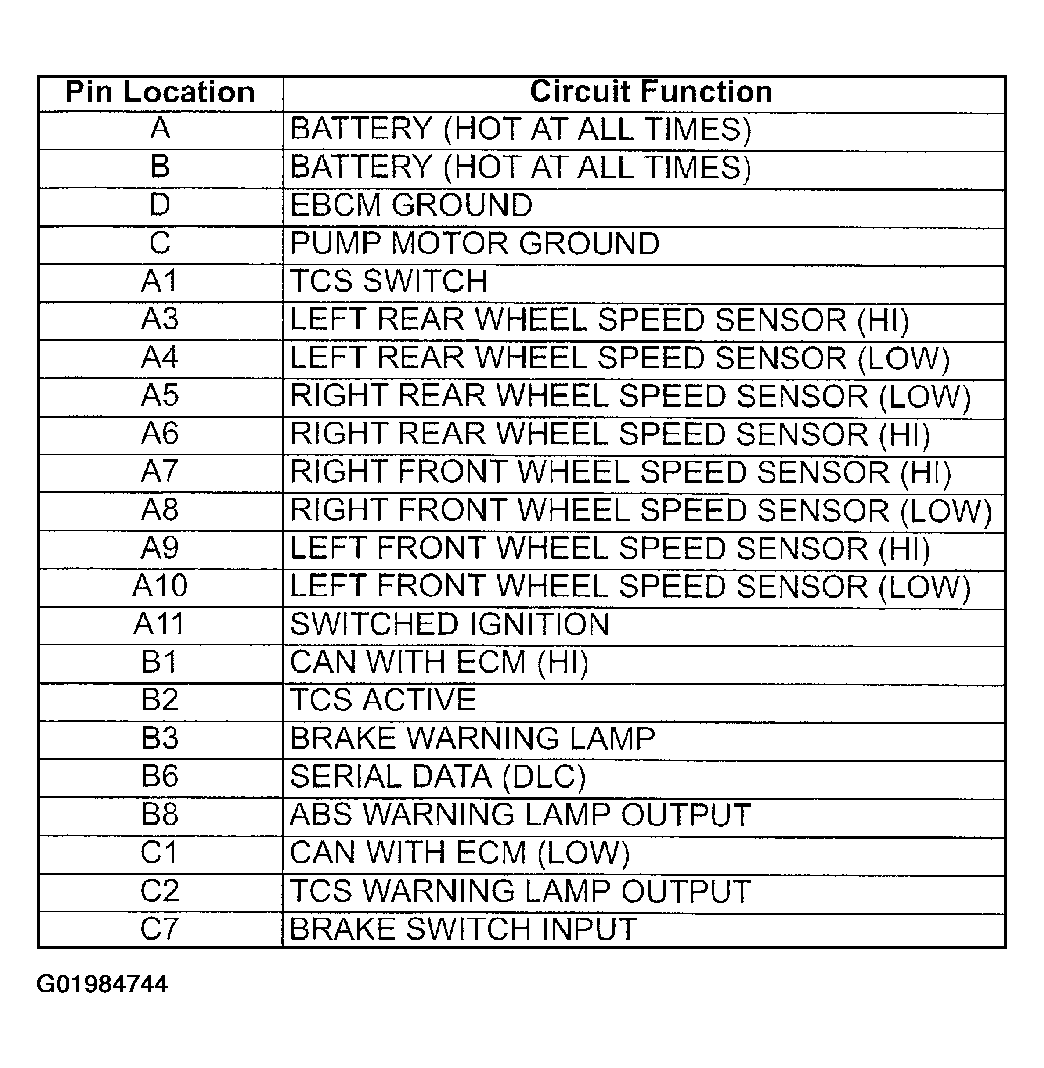

Fig 2: Identifying ABS (Export) Pin Assignments Table
G01984744Courtesy of SUZUKI OF AMERICA CORP.
