ABS System Circuit Diagram

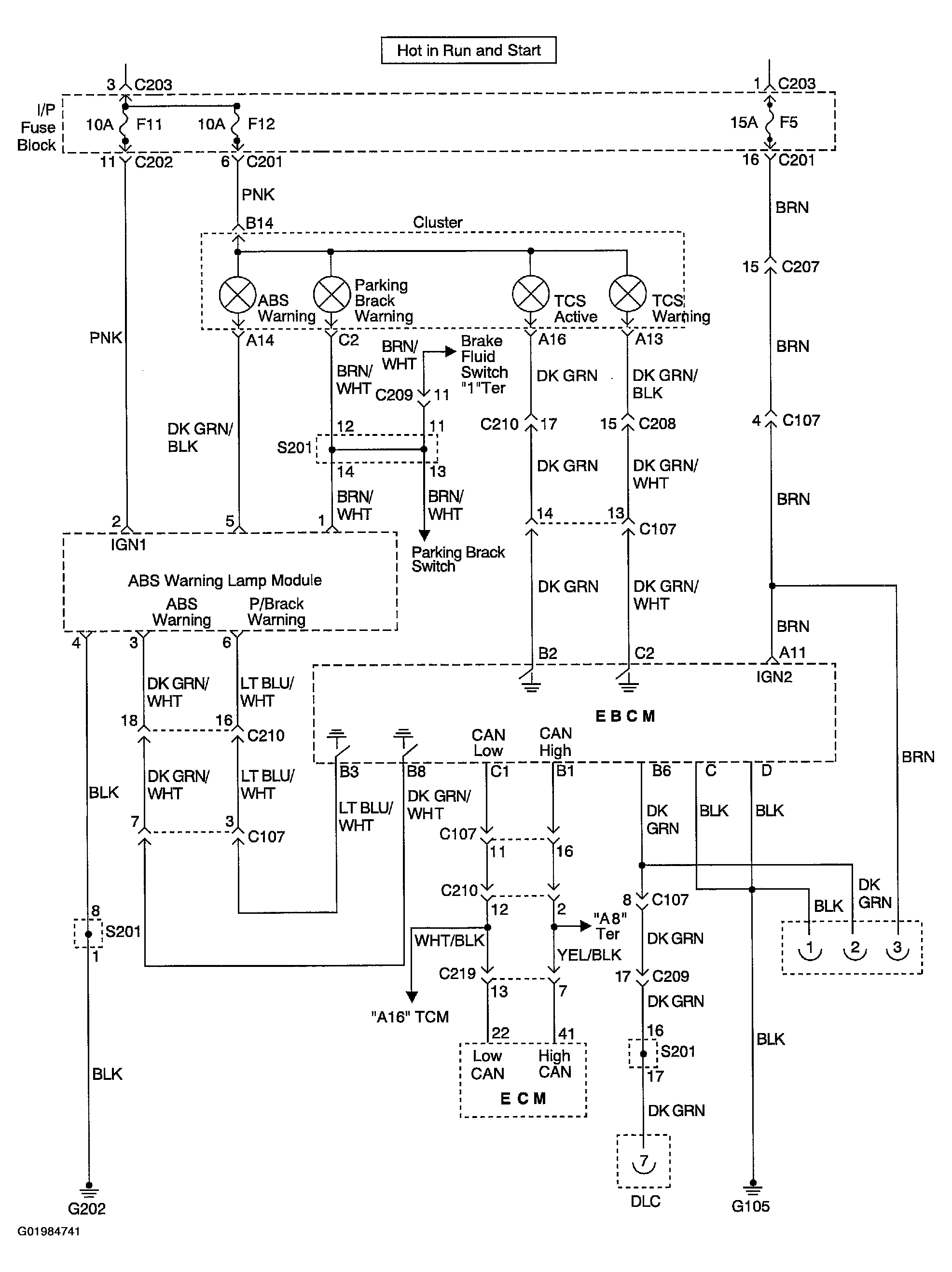

Fig 1: ABS System Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

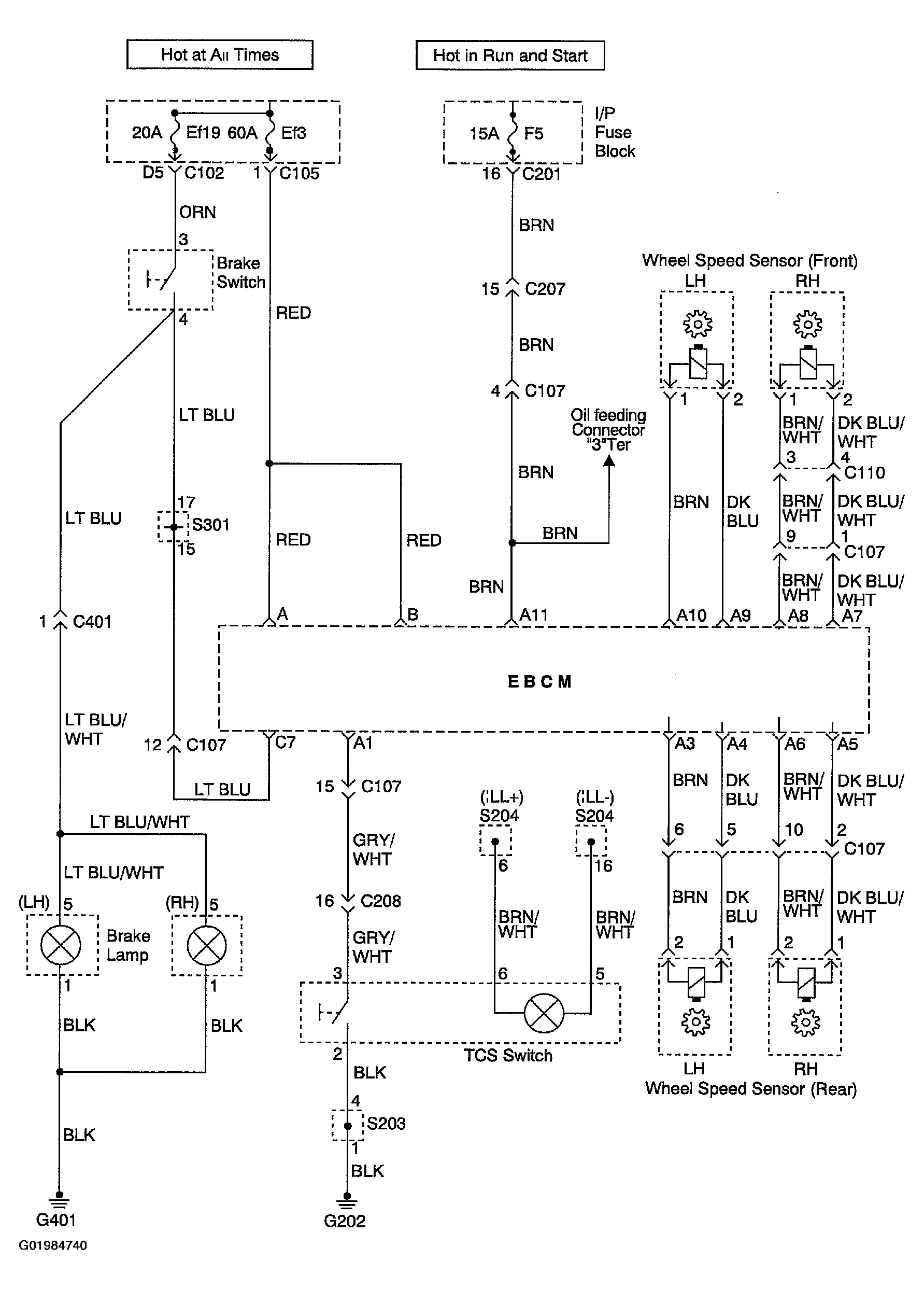

Fig 2: ABS System Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
