Installation Notice

Tighten

• Tighten the torque brake pipe fitting nuts to 16 N.m (12 lb-ft)
• Tighten the torque ABS mounting bracket Bolts to 22 N.m (16 lb-ft)

• Add new brake fluid.
• After the installation, bleed the brake system. Refer to BLEEDING BRAKE SYSTEM .
• Check the brake system for leaks.
• Care must be taken to prevent the brake fluid from contacting any painted surface to prevent damage to the paint finish.

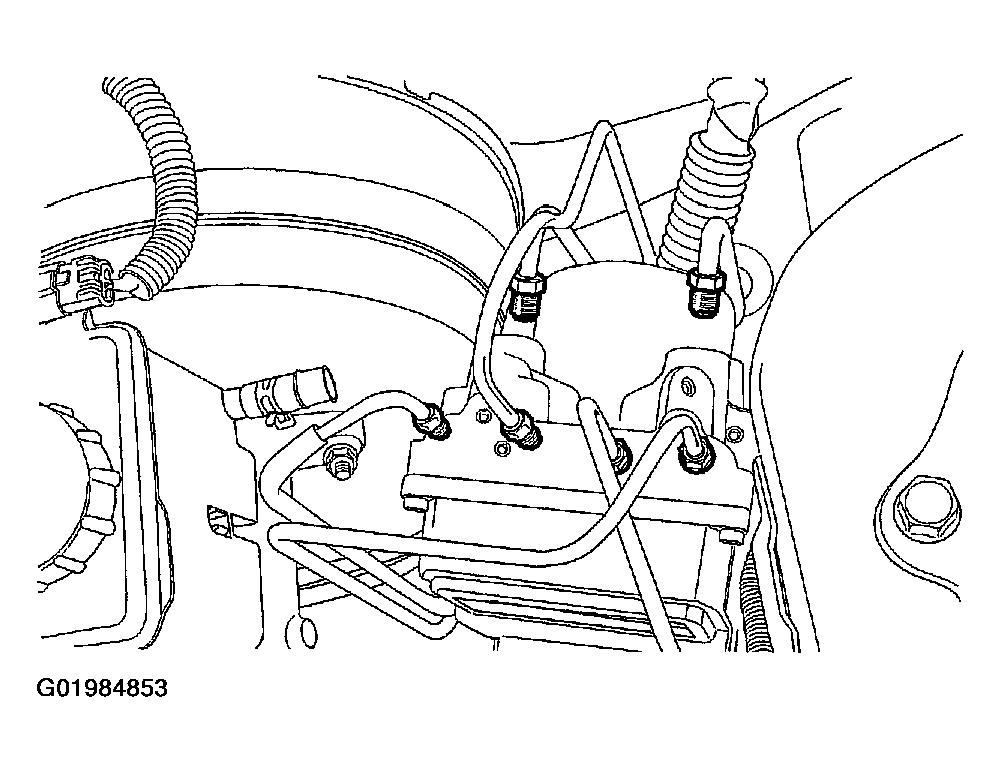

Fig 1: Installing DBC 7 ABS Assembly

Courtesy of SUZUKI OF AMERICA CORP.
