TCS Warning Lamp On: Notes

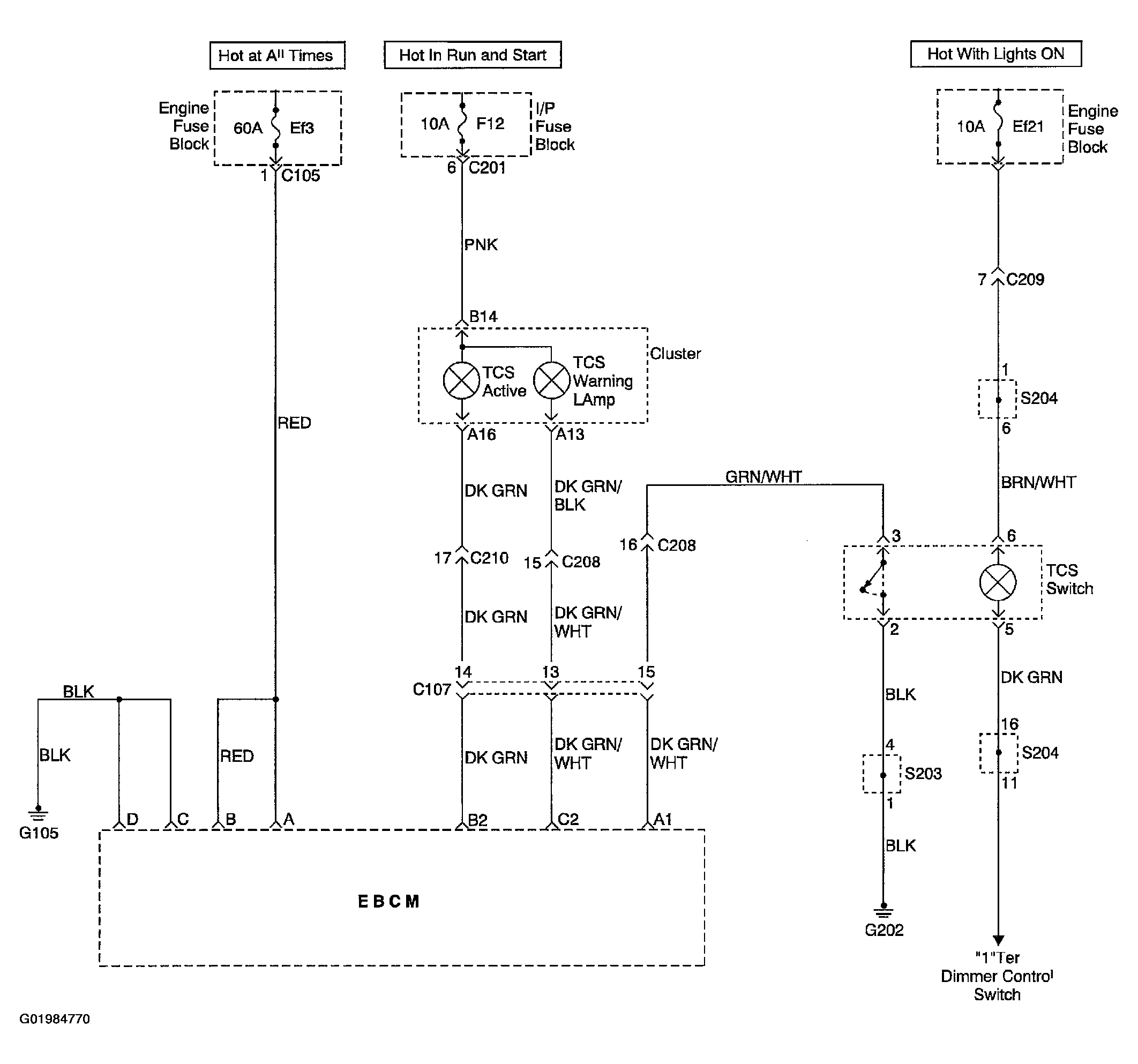

Fig 1: TCS Warning Lamp On - Wiring Diagram

G01984770

Courtesy of SUZUKI OF AMERICA CORP.
