Diagnostic Aids

Typical cause of the TCS Lamp ON with no DTC(s) set is mainly EBCM wiring harness short to battery.

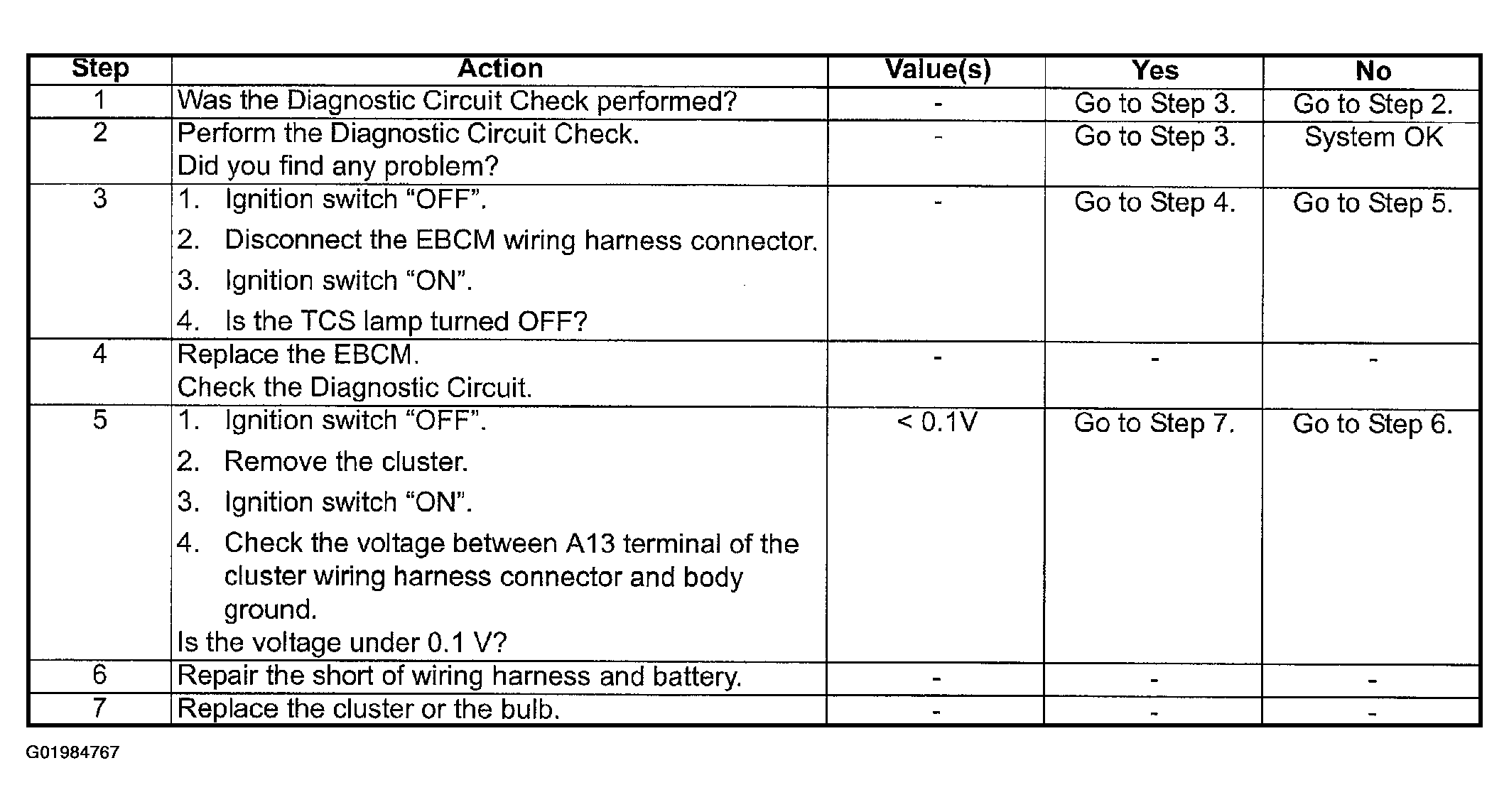

Fig 1: TCS Indicator Lamp ON Diagnostic Chart
G01984767Courtesy of SUZUKI OF AMERICA CORP.
