Diagnostic Aids

The following are typical causes of DTC C0095.

1. One or more stop lamp bulb filaments open.
2. One or more stop lamp bulb and/or socket connections loose.
3. One or more stop lamp grounds loose or open.
4. Terminal C7 brake switch input terminal connection poor or open.
5. Terminal C7 brake switch input circuit open.

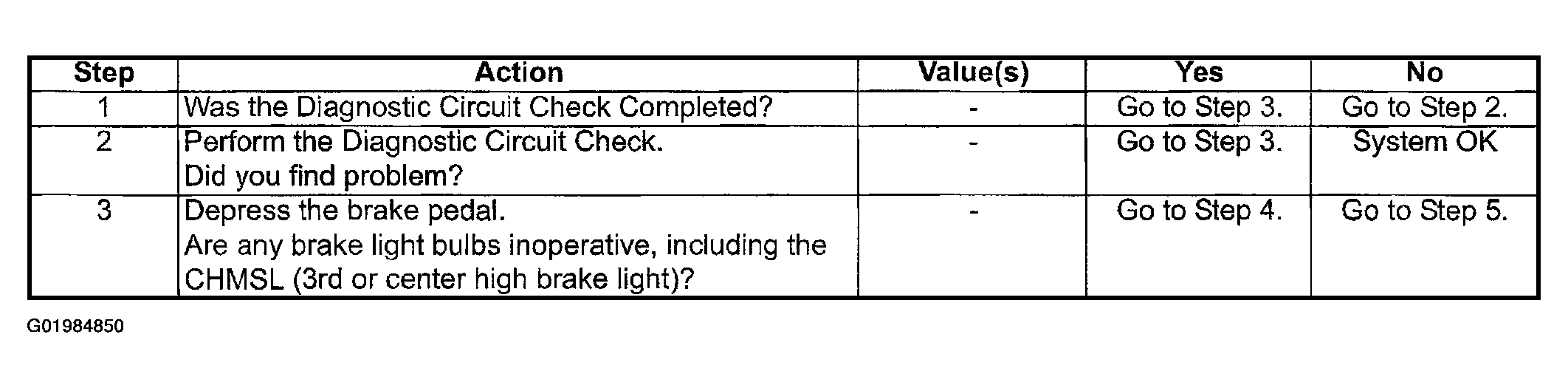

Fig 1: DTC C0095: Brake Switch Circuit Open (Stop Lamp Circuit Open) Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

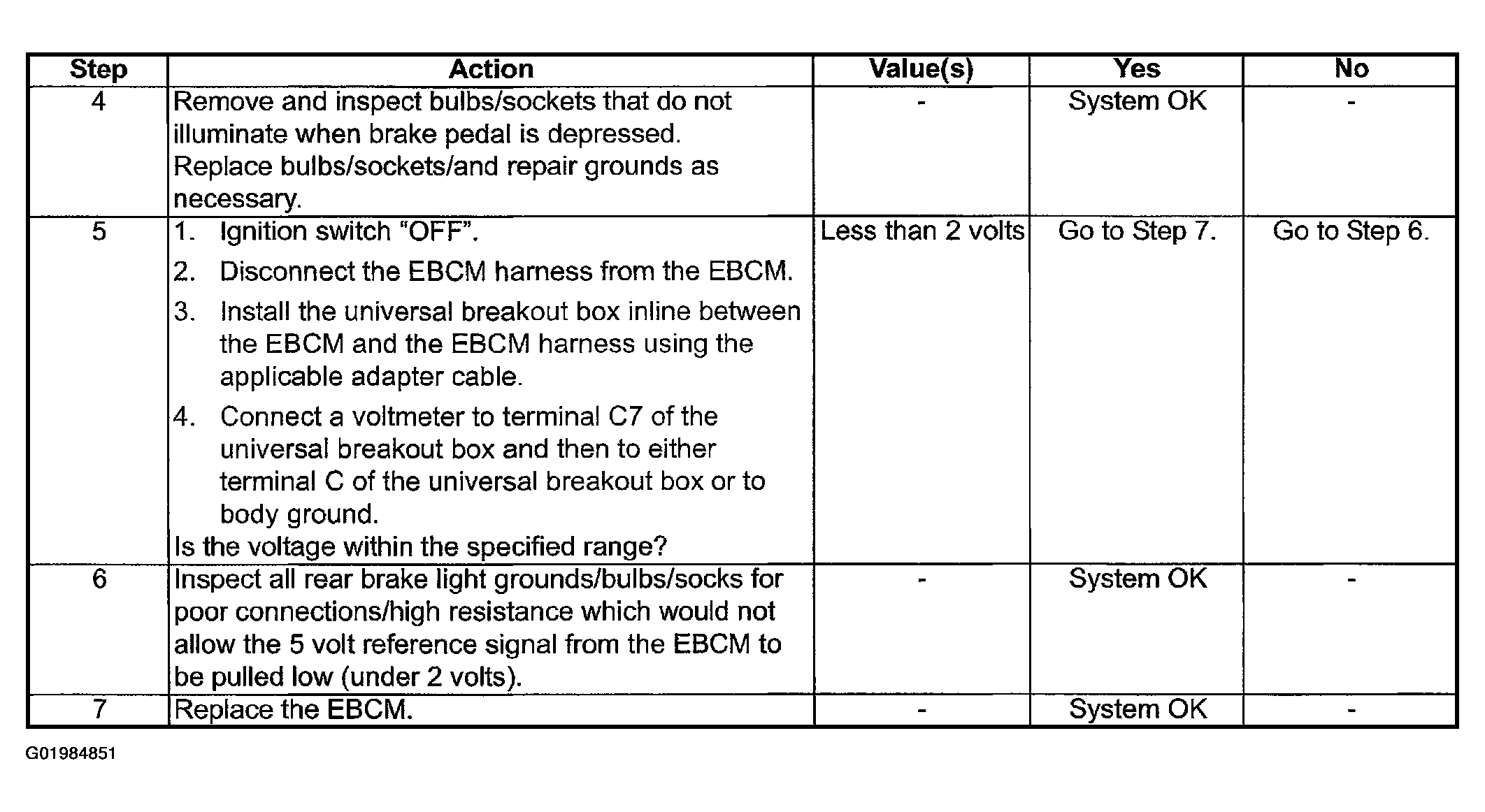

Fig 2: DTC C0095: Brake Switch Circuit Open (Stop Lamp Circuit Open) Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
