DTC C0072, C0074: Left/Right TCS Solenoid Inoperative: Notes

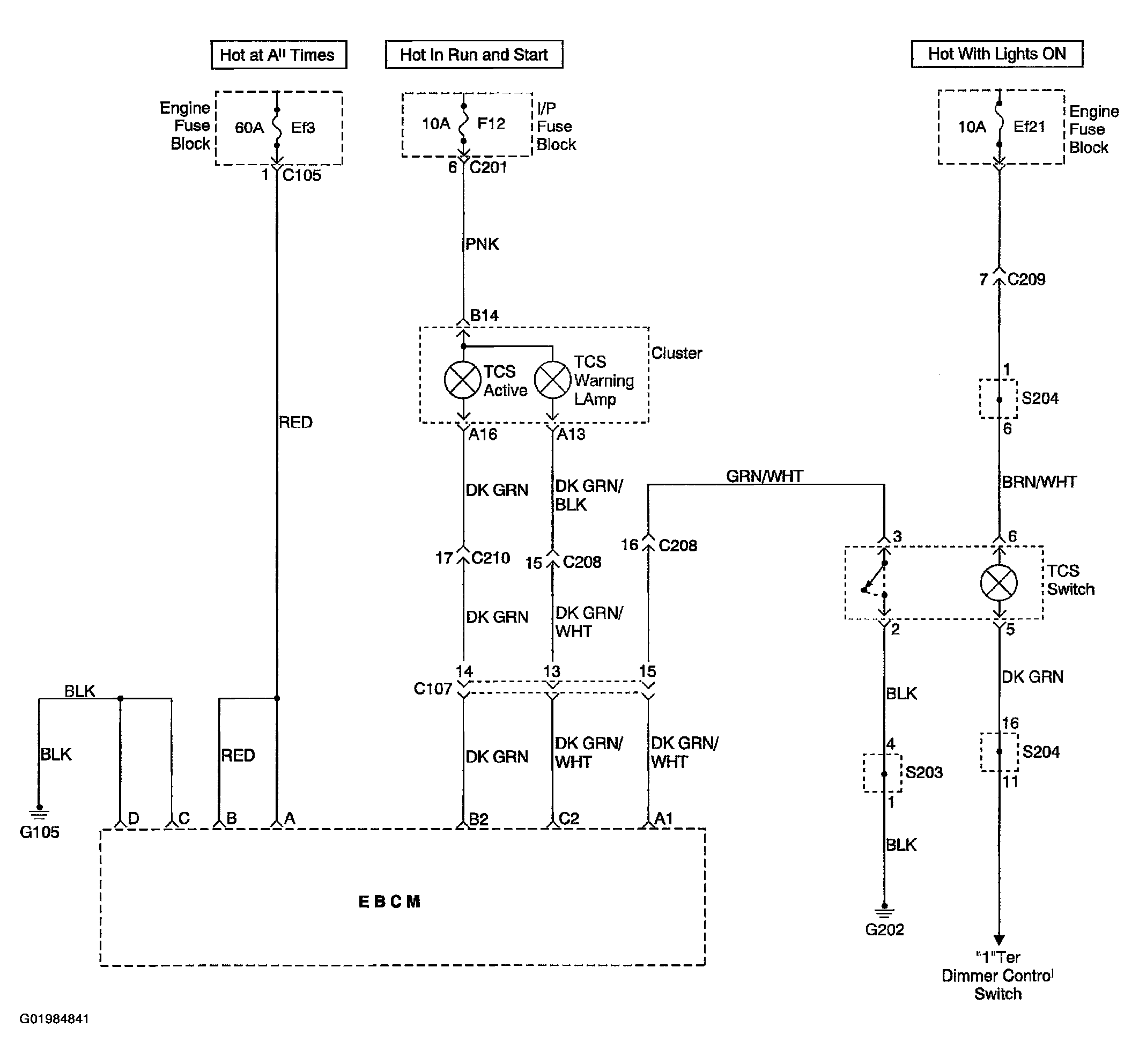

Fig 1: DTC C0072, C0074: Left/Right TCS Solenoid Inoperative - Wiring Diagram
G01984841Courtesy of SUZUKI OF AMERICA CORP.
