DTC C0054: Abnormal Shutdown Detected: Notes

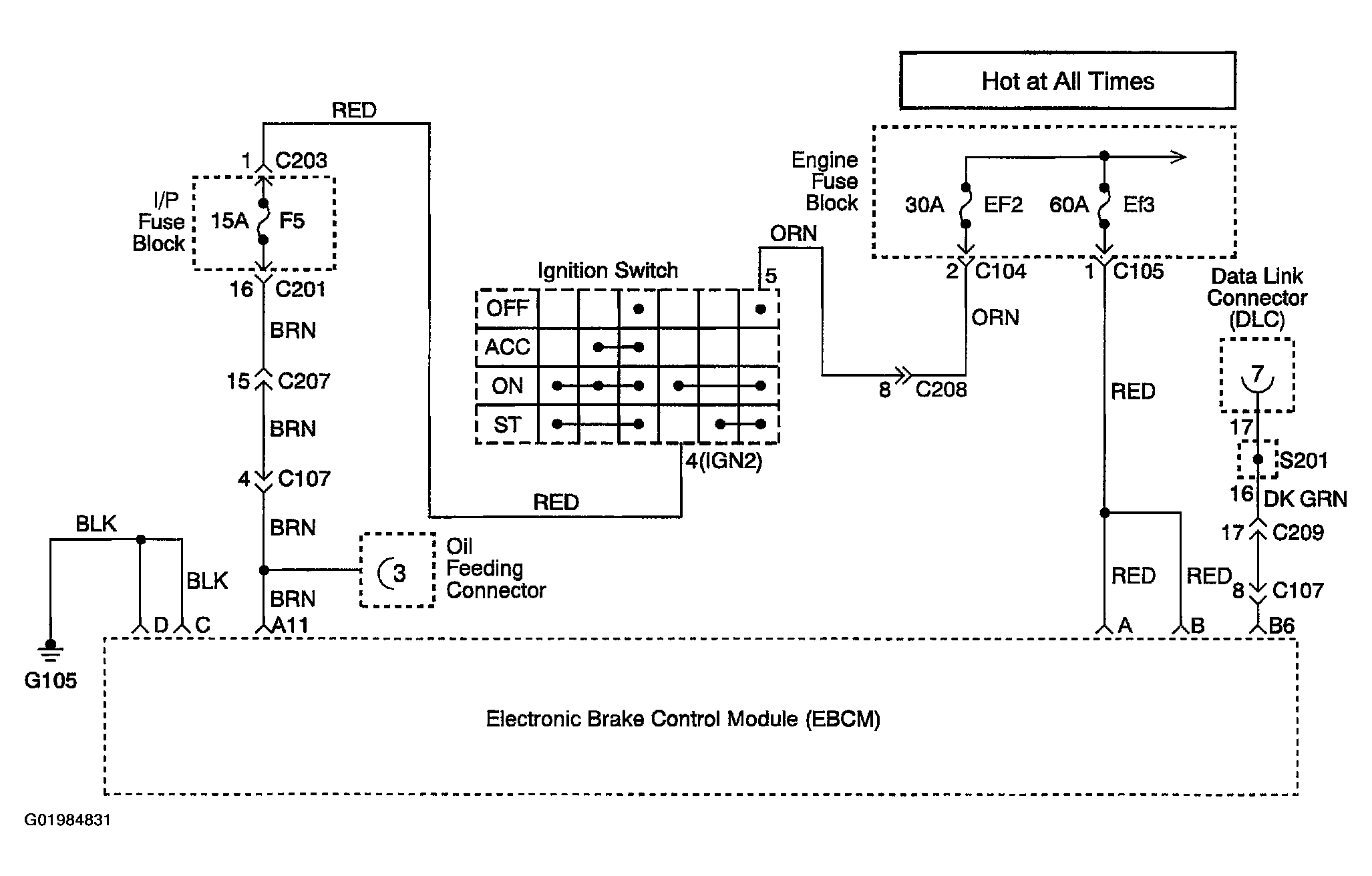

Fig 1: DTC C0054: Abnormal Shutdown Detected - Wiring Diagram
G01984831Courtesy of SUZUKI OF AMERICA CORP.
