Diagnostic Aids

Typical causes of DTC C0042.

1. BPMV pump motor open or high resistance.
2. EBCM malfunction.

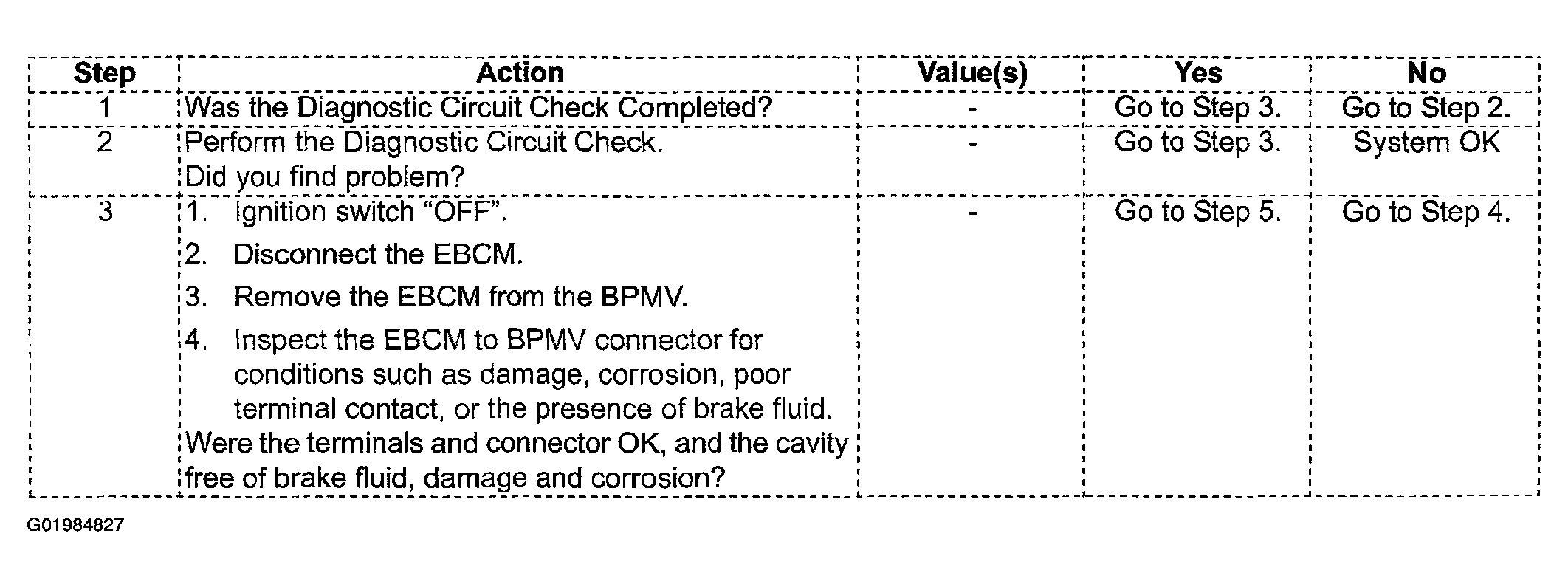

Fig 1: DTC C0042: Pump Motor Circuit Open Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

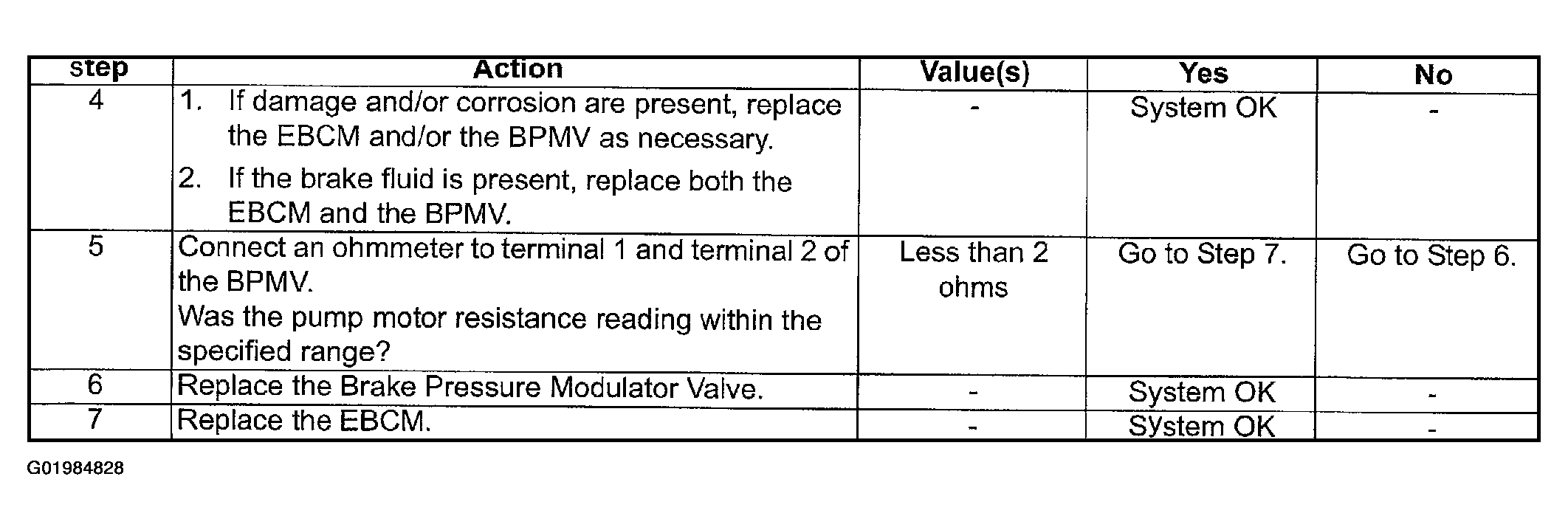

Fig 2: DTC C0042: Pump Motor Circuit Open Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
