DTC C0035: Right Rear Wheel Speed Sensor Circuit Open or Shorted: Notes

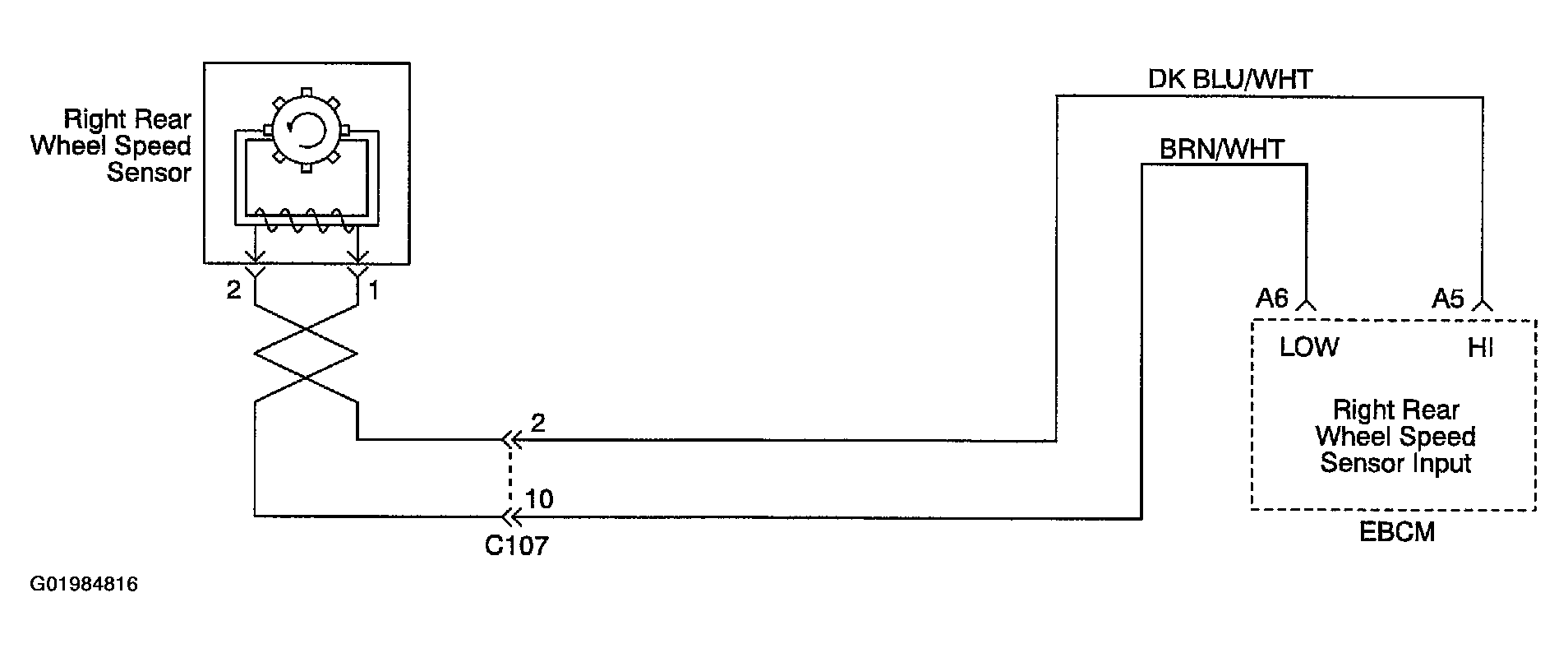

Fig 1: DTC C0035: Right Rear Wheel Speed Sensor Circuit Open Or Shorted - Wiring Diagram
G01984816Courtesy of SUZUKI OF AMERICA CORP.
