Diagnostic Aids
Thoroughly inspect the wiring and connectors when diagnosing intermittent DTC(s). This will include the following.
- Removal of the protective conduit and inspection of wiring for damage, shorts and contamination.
- Inspection for improperly formed and/or damaged terminals.
- Checking terminal contact (retention force) by using a spare male/female terminal.
- Removal of the terminals from the connectors to check for proper terminal to wire crimp.
If the drivers comments reflect that the ABS warning lamp is on only during moist environmental changes (rain, snow, vehicle wash), all wheel speed sensor circuitry should be thoroughly inspected for signs of water intrusion. If the DTC is not current, simulate the effects of water intrusion. Use the following procedure. Spray the suspected area with a 5 percent salt-water solution. Then test-drive the vehicle over various road surfaces such as (bumps, turns, etc.) above 24 kph (15 mph). If the DTC sets then replace the suspected harness and/or sensor.
When measuring wheel speed sensor resistance insures the vehicle is at room temperature, since resistance will increase with temperature.

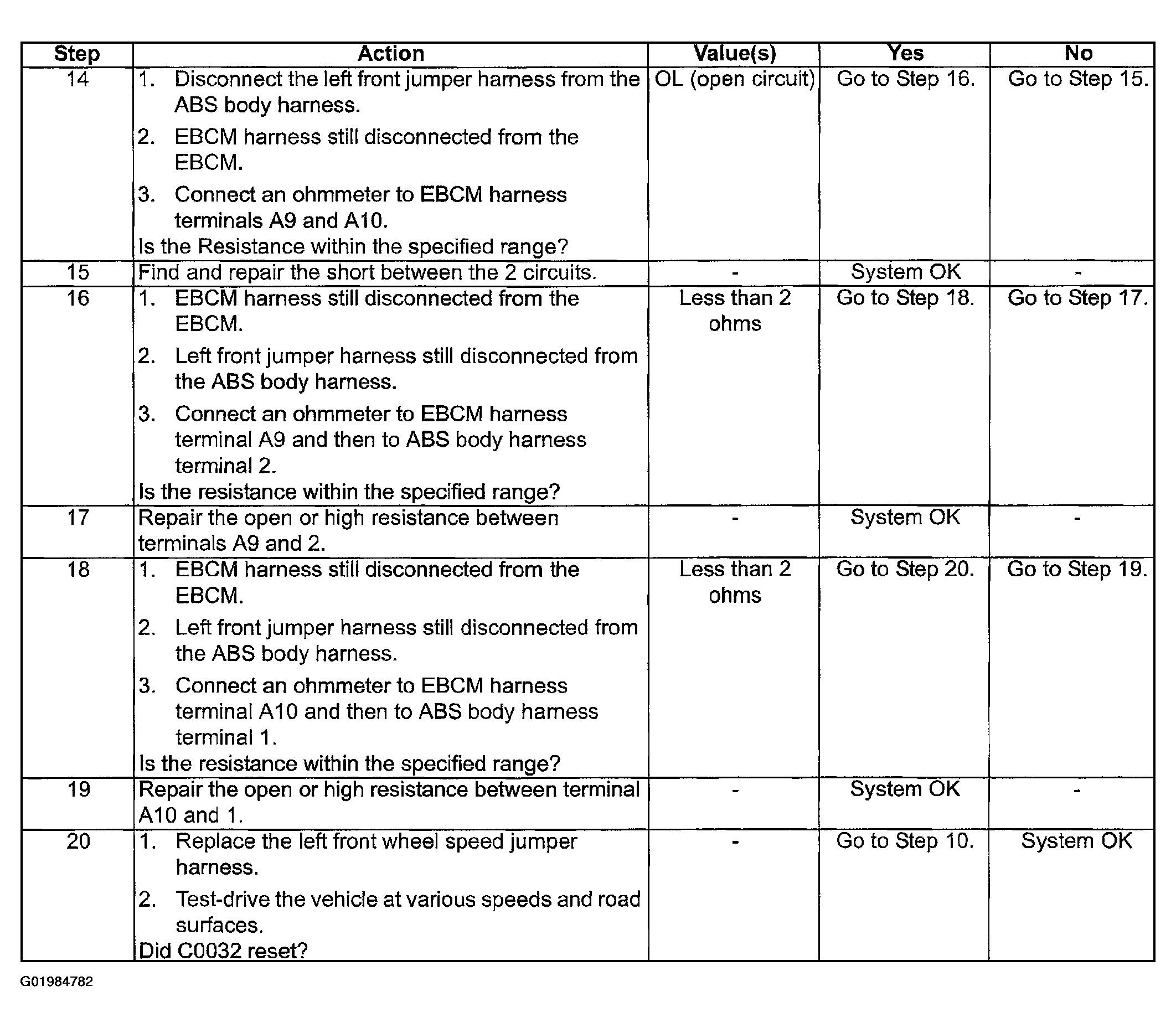

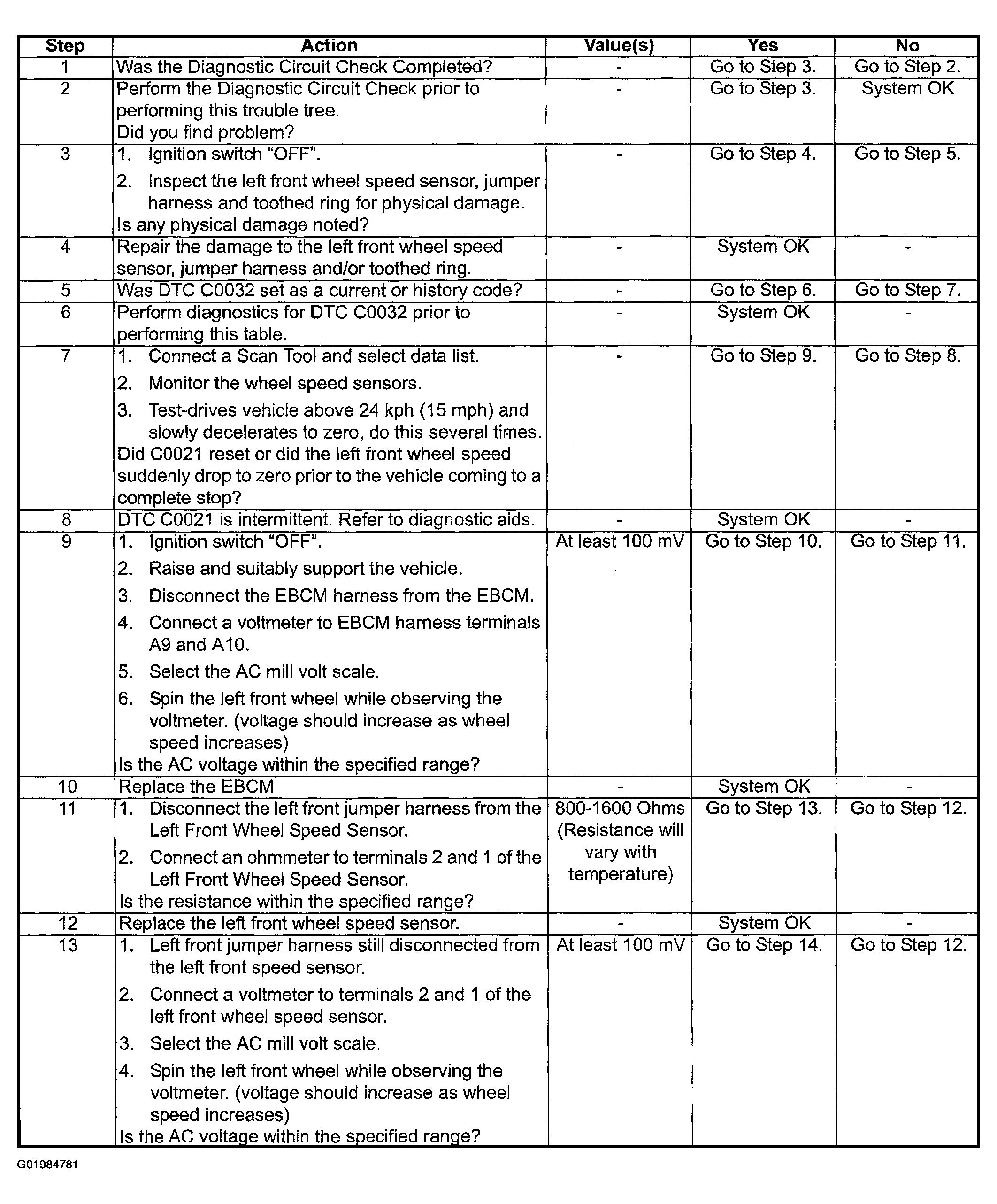

Failure to perform the previous steps carefully and fully can result in misdiagnosis, unnecessary component replacement and reoccurrence of DTC C0021.
