ABS Warning Lamp ON/ No DTC Set
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ABS Warning Lamp ON/ No DTC Set: Notes

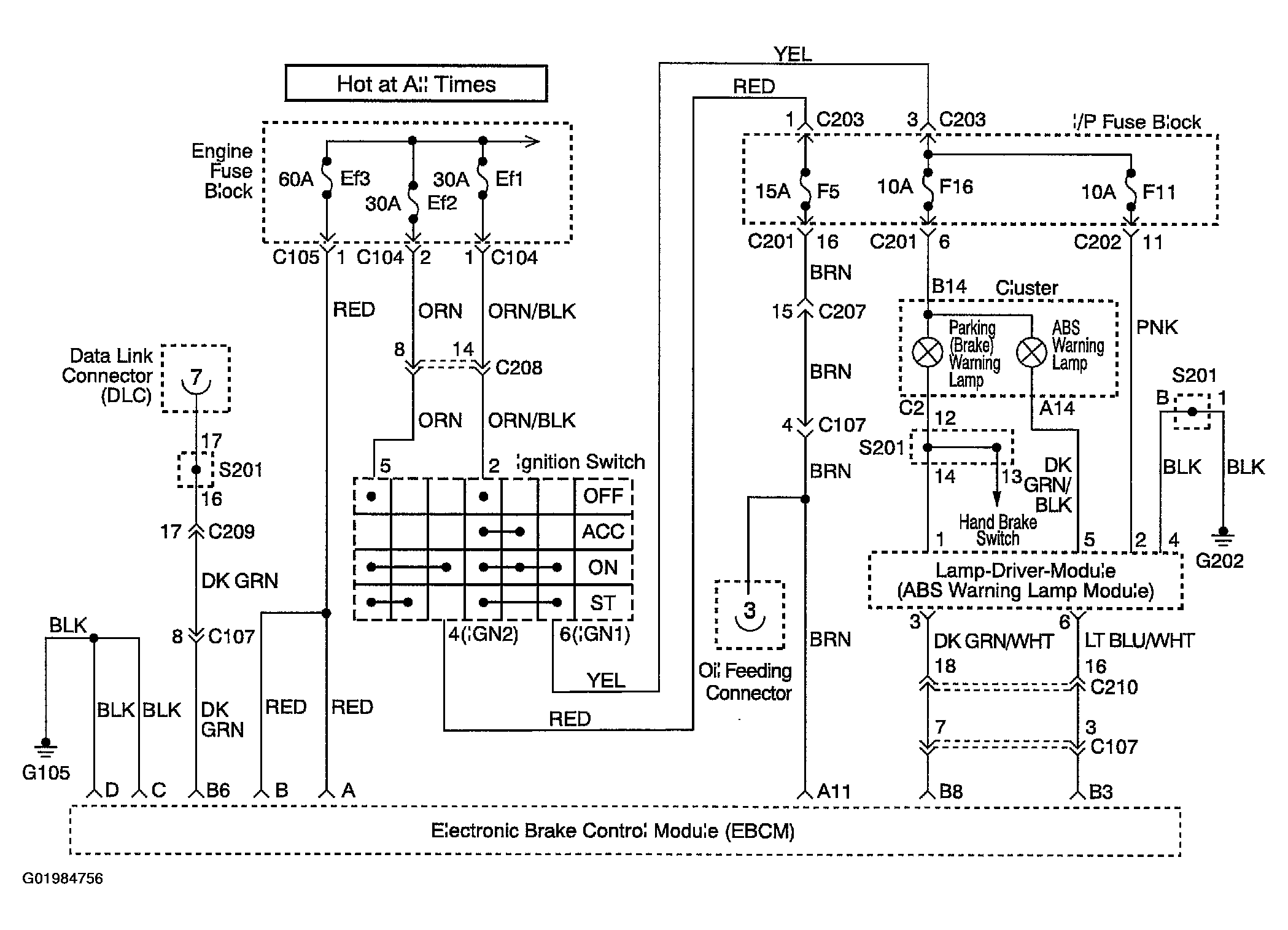

Fig 1: ABS Warning Lamp ON/ No DTC Set - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
