Split Rear Seatback Lock Striker Removal

  1. Lower the rear seatbacks.
  2. Remove the rear seat side bolster cushion. Refer to Rear Seat Side Bolster Cushion Removal  .
  3. Remove the retaining clips and the back panel trim cover.
  4. Remove the bolts and the seatback lock strikers.

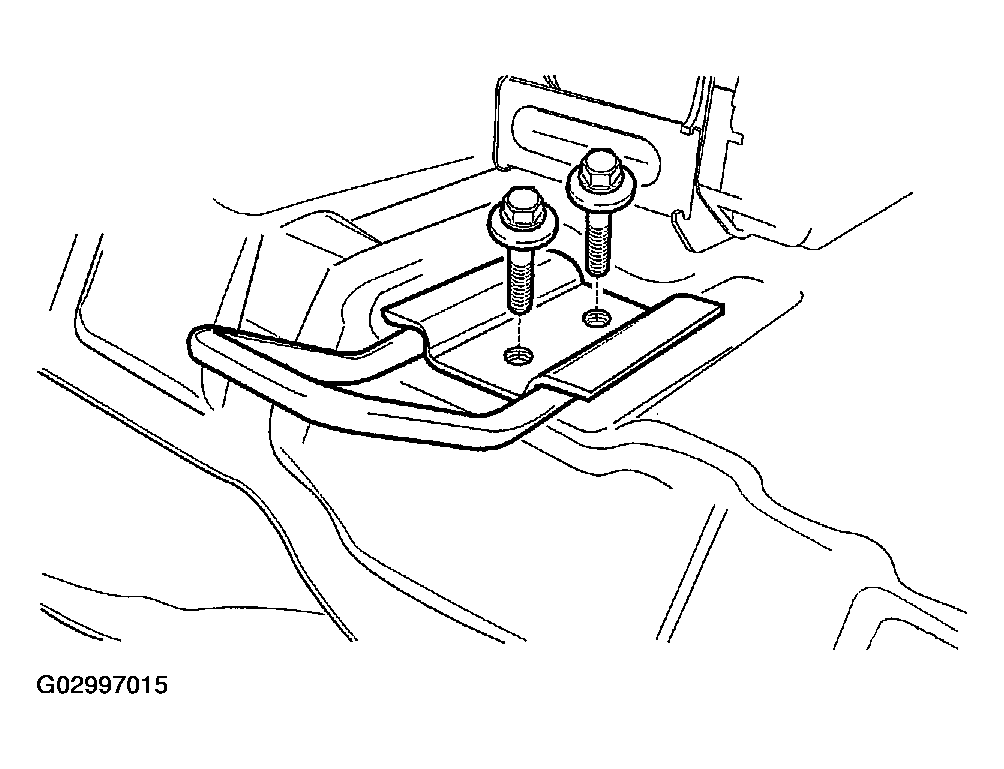

Fig 1: Removing Bolts & Seatback Lock Strikers
G02997015Courtesy of SUZUKI OF AMERICA CORP.
