Split Rear Seatback Hinge Removal

Remove the rear seatback and the rear seat cushion. Refer to Split Rear Seatback Removal and Rear Seat Cushion Removal .
Remove the bolts and the seatback center hinge.

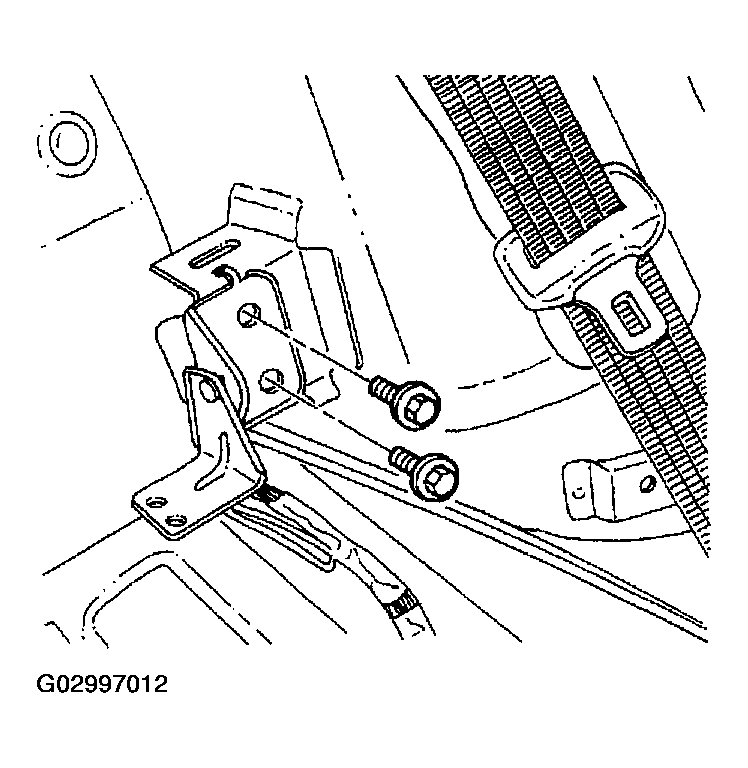

Fig 1: Removing Bolts & Seatback Center Hinge
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear seat side bolster cushion. Refer to Rear Seat Side Bolster Cushion Removal .
Remove the bolts and the seatback outer hinge.

Fig 2: Removing Bolts & Seatback Outer Hinge

Courtesy of SUZUKI OF AMERICA CORP.
