Power Driver Seat Slide Assembly Removal

  1. Remove the driver seat. Refer to Front Bucket Seat Removal (for Power Driver Seat)  .
  2. Remove the front seat cushion. Refer to Front Seat Cushion Removal (for Power Driver Seat)  .
  3. Disconnect the electrical connector.
  4. Remove the bolts the screws, and the slide assembly.

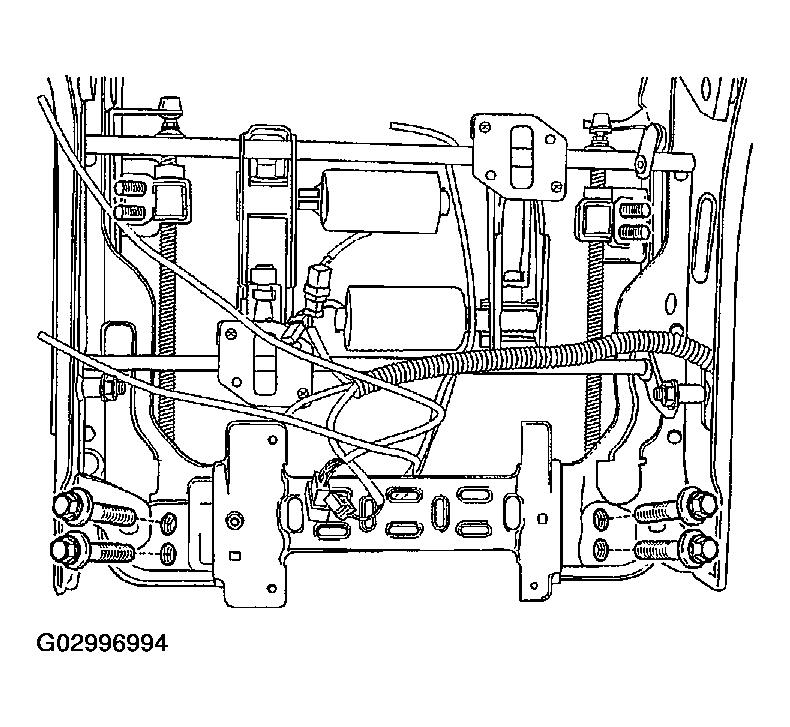

Fig 1: Removing Bolts & Sliding Assembly
G02996994Courtesy of SUZUKI OF AMERICA CORP.
