Headlamp / Turn Signal Switch and Lever Installation

1. Connect the electrical connections to the turn signal switch.
2. Install the turn signal switch by snapping it into the switch housing.

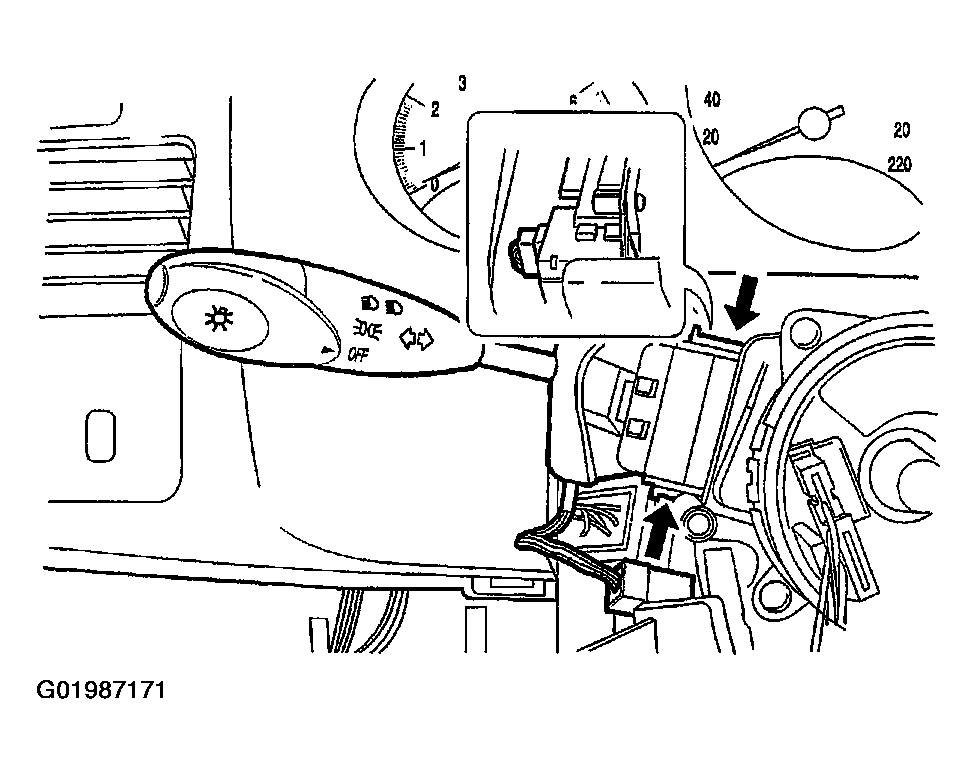

Fig 1: Installing Turn Signal Switch Snapping Into Switch Housing
Courtesy of SUZUKI OF AMERICA CORP.
3. Install the upper and the lower steering column cover panels. Install the upper and the lower steering column cover panel screws.
   1. Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in).
4. Connect the negative battery cable.

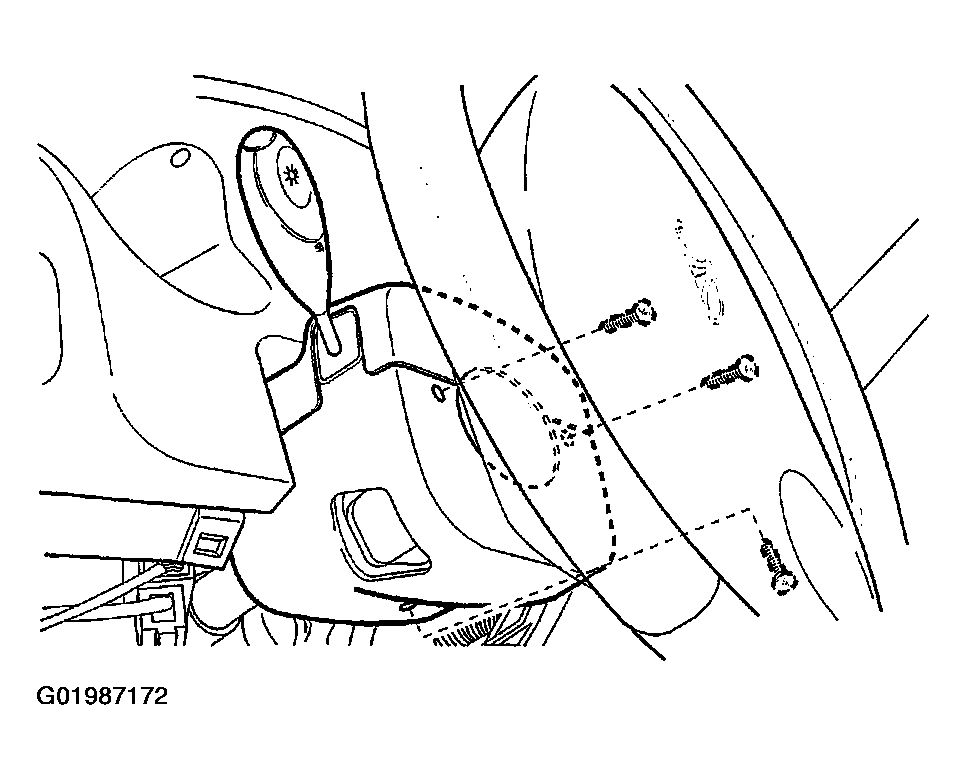

Fig 2: Installing Upper & Lower Steering Column Cover Panel

Courtesy of SUZUKI OF AMERICA CORP.
