Turn Signal / Dimmer Switch

Fig 1: Turn Signal Will Not Stay In Turn Position Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

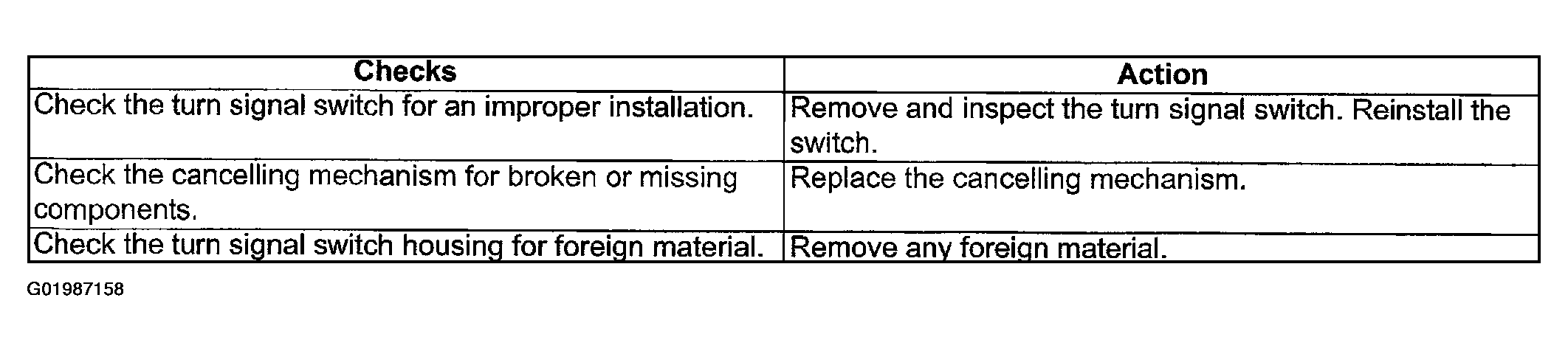

Fig 2: Turn Signal Will Not Cancel Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

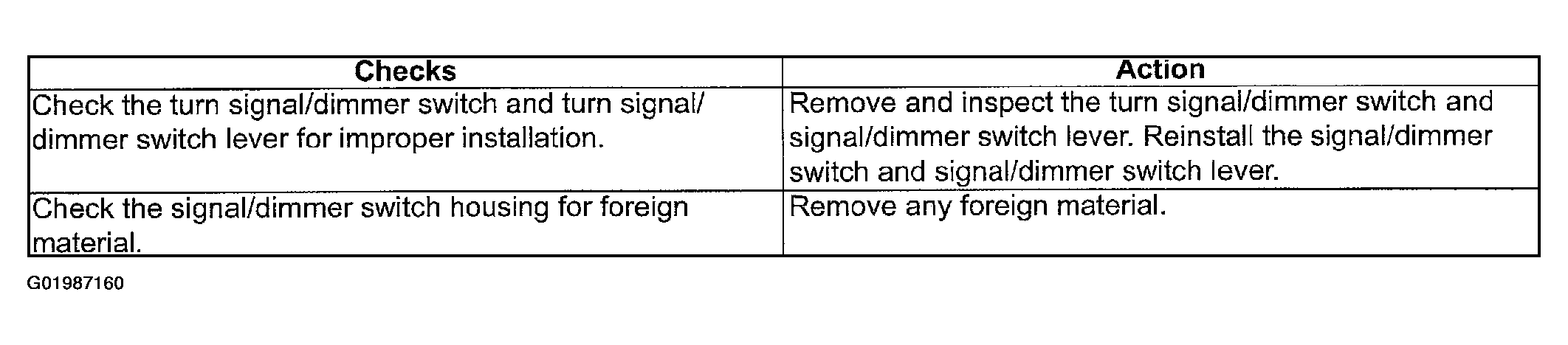

Fig 3: Turn Signal/Dimmer Switch Difficult To Operate Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

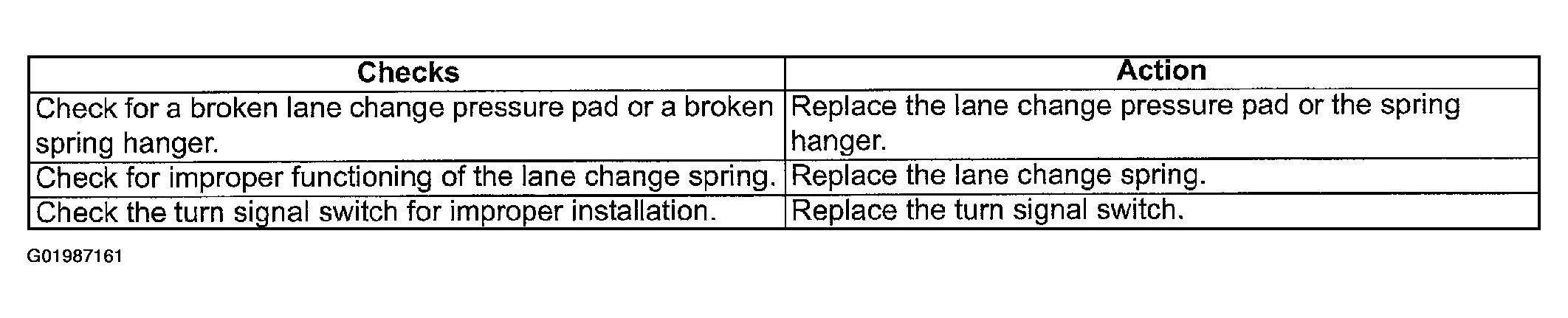

Fig 4: Turn Signal Will Not Indicate Lane Change Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

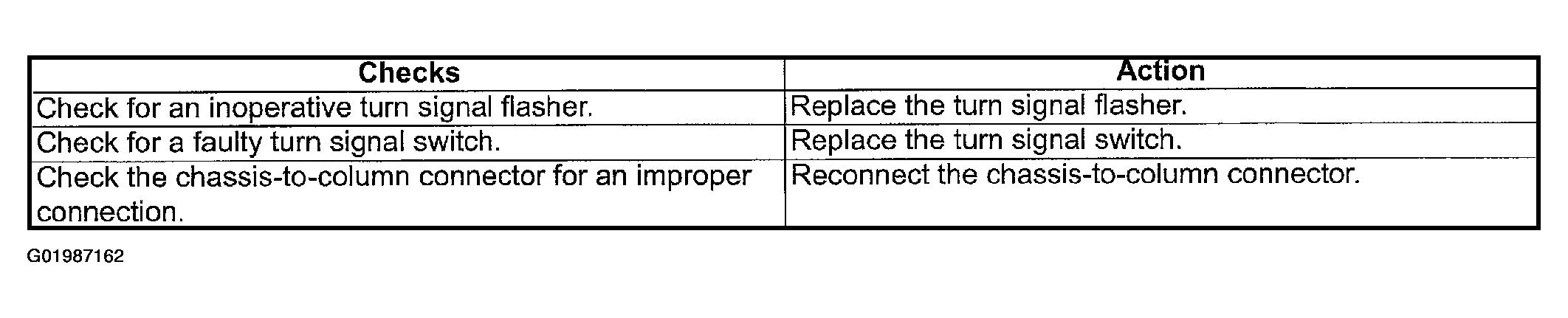

Fig 5: No Turn Signal Lights Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Turn Indicator Light ON, But Not Flashing Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Front Or Rear Turn Signal Lights Not Flashing Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Turn Signal Lights Flash Very Slowly Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.
