Rear Window Glass Removal

Tools Required

J-24402 Glass Sealant Remover

1. Disconnect the negative battery cable.
2. Disconnect the rear window defogger electrical connector.
   Fig 1: Disconnecting Rear Window Defogger Electrical Connector

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the weatherstrip around the rear window.

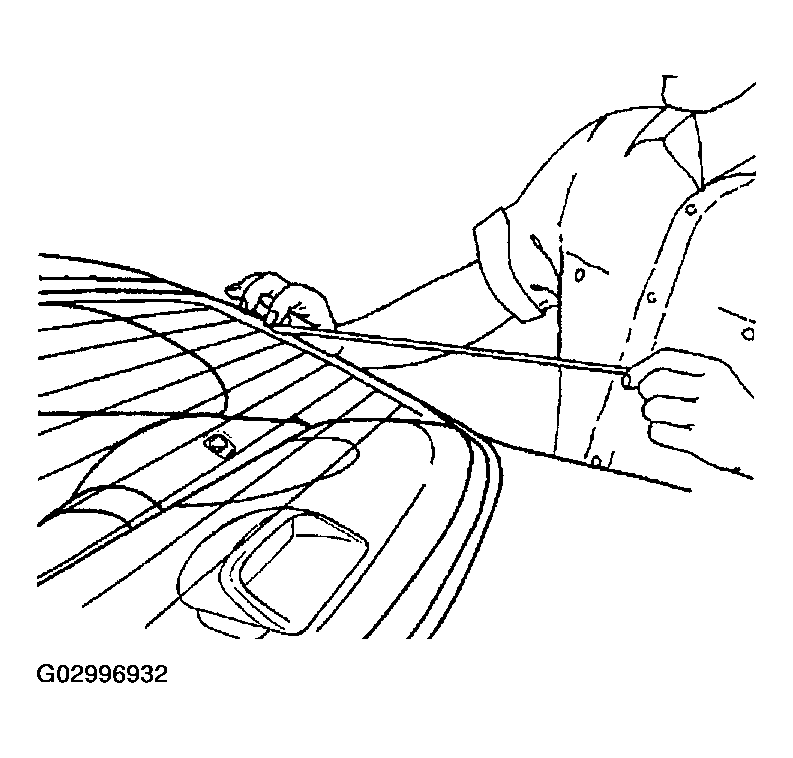

   Fig 2: Removing Weatherstrip Around Rear Window

   Courtesy of SUZUKI OF AMERICA CORP.
4. Using the glass sealant remover J-24402, cut the adhesive around the rear window.

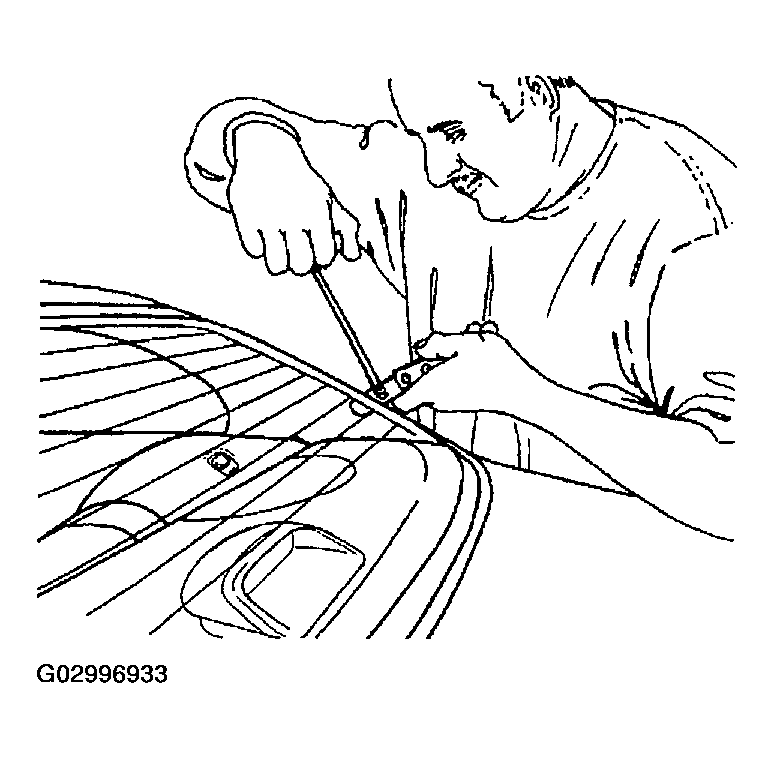

   Fig 3: Cutting Adhesive Around Rear Window Using Glass Sealant Remover

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the rear window from the vehicle.
6. Using a knife, remove the adhesive from the rear window.
7. Using a knife, remove the adhesive from the rear window frame.

Fig 4: Removing Adhesive From Rear Window Using Knife

Courtesy of SUZUKI OF AMERICA CORP.
