Rear Door Trim Panel Installation

  1. Install the trim panel.
  2. Connect the power window control switch electrical connector, if equipped.
  3. Install the power window control switch.
  4. Install the door trim panel screws.
    1. Tighten the door trim panel screws to 2.5 N.m (22 lb-in).
  5. Install the inside door handle trim bezel.
  6. Raise the rear window.

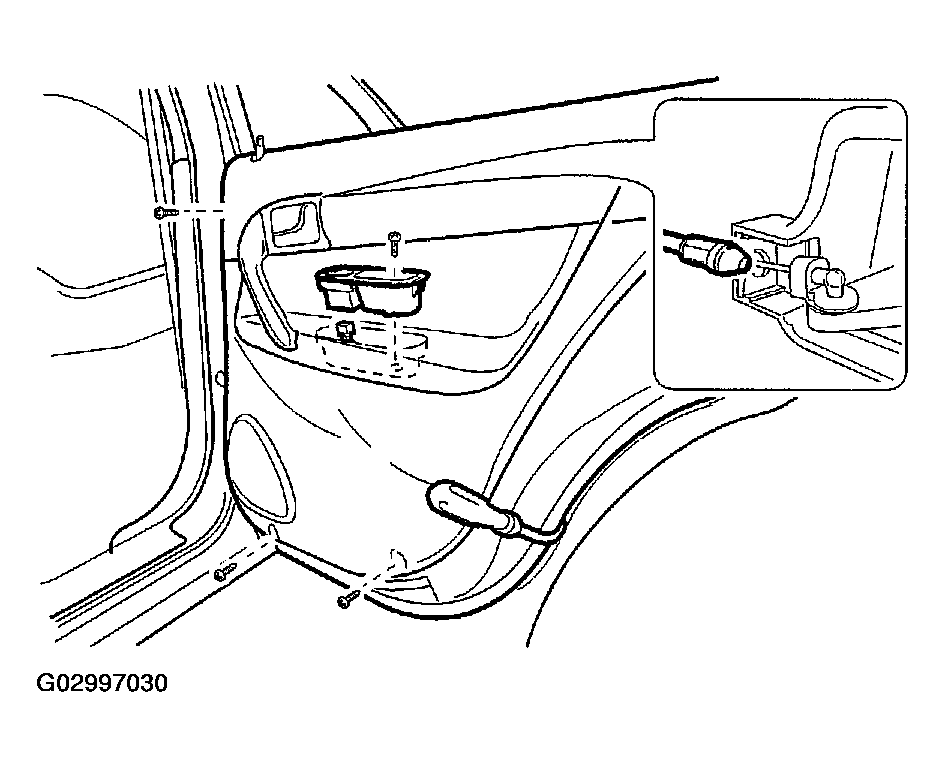

Fig 1: Installing Inside Door Handle Trim Bezel
G02997030Courtesy of SUZUKI OF AMERICA CORP.
