Deck Lid Sill Plate Cover Installation

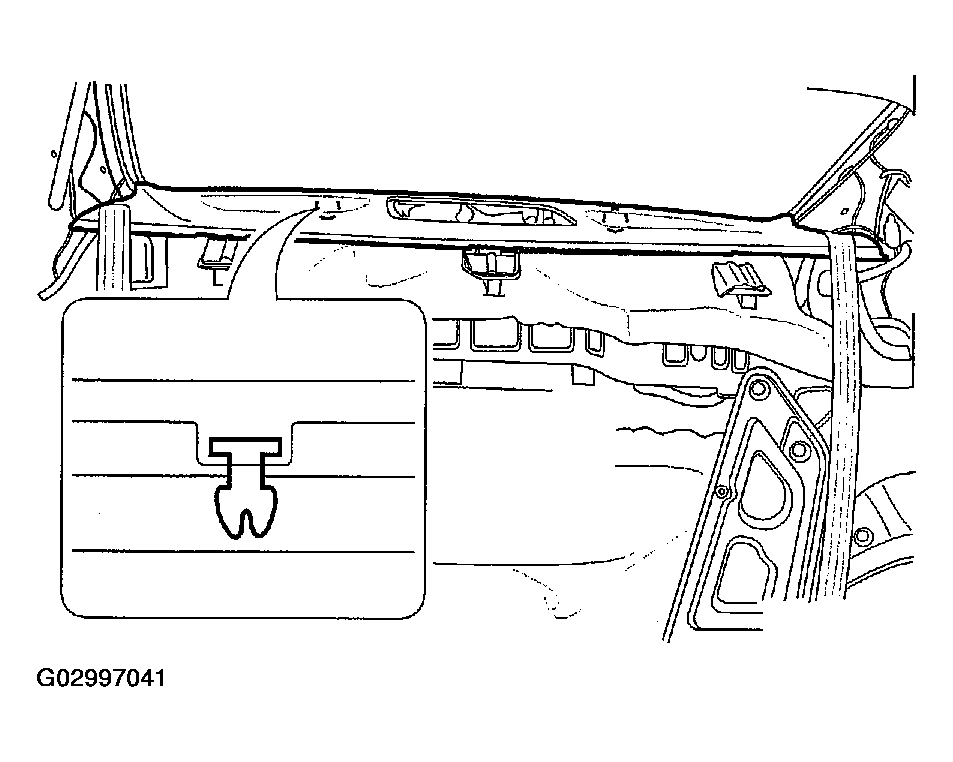

Install the rear deck lid sill plate cover with the plastic retaining clips.
Install the child seat anchorage. CHILD SEAT ANCHORAGE INSTALLATION

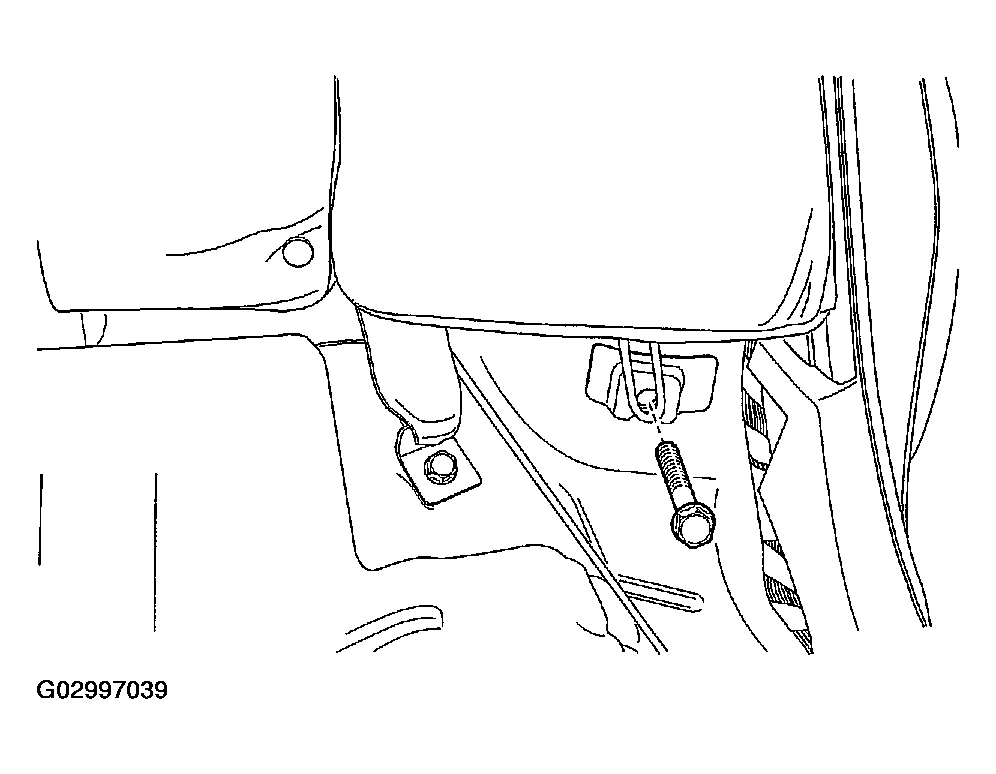

Fig 1: Installing Child Seat Anchorage
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear seat belts, Refer to Figure .
Install the C-pillar trim panel.
Install the rear seat, side bolster cushion. Refer to REAR SEAT SIDE BOLSTER CUSHION INSTALLATION .

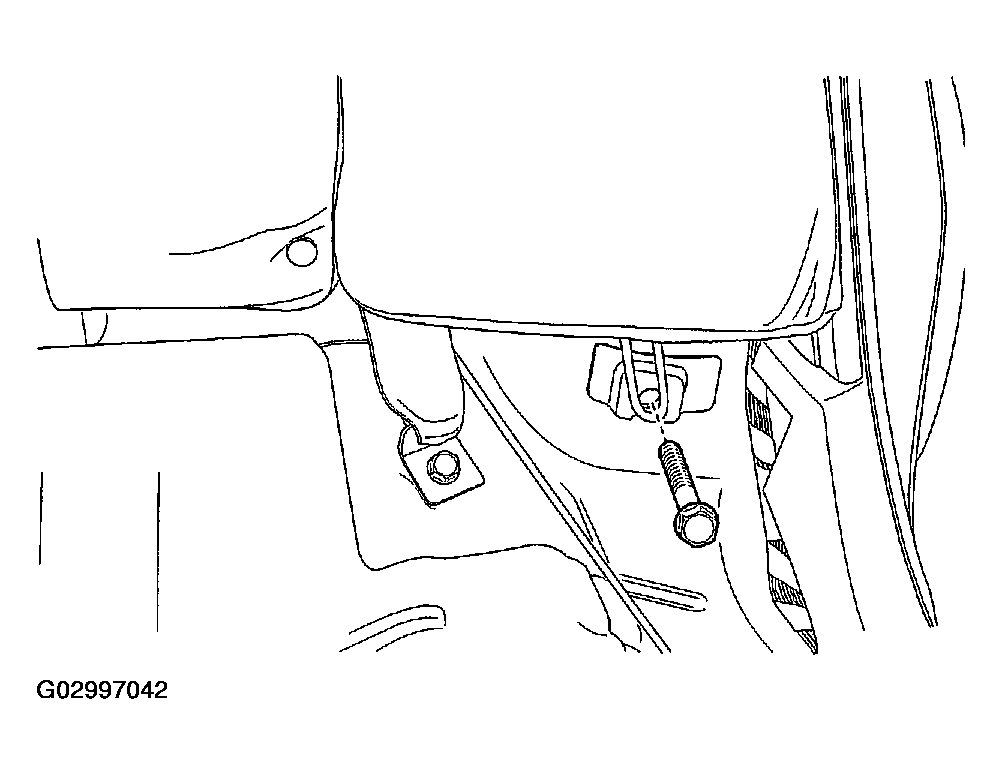

Fig 2: Installing Rear Seat

Courtesy of SUZUKI OF AMERICA CORP.
