Siren Installation

  1. Install the siren bracket with the mounting bolt. Make sure that the siren bracket mounting bolt also fastens the auxiliary fan relay.
    1. Tighten the siren bracket mounting bolt to 11 N.m (97 lb-in).
  2. Connect the siren electrical connector.
  3. Connect the negative battery cable.

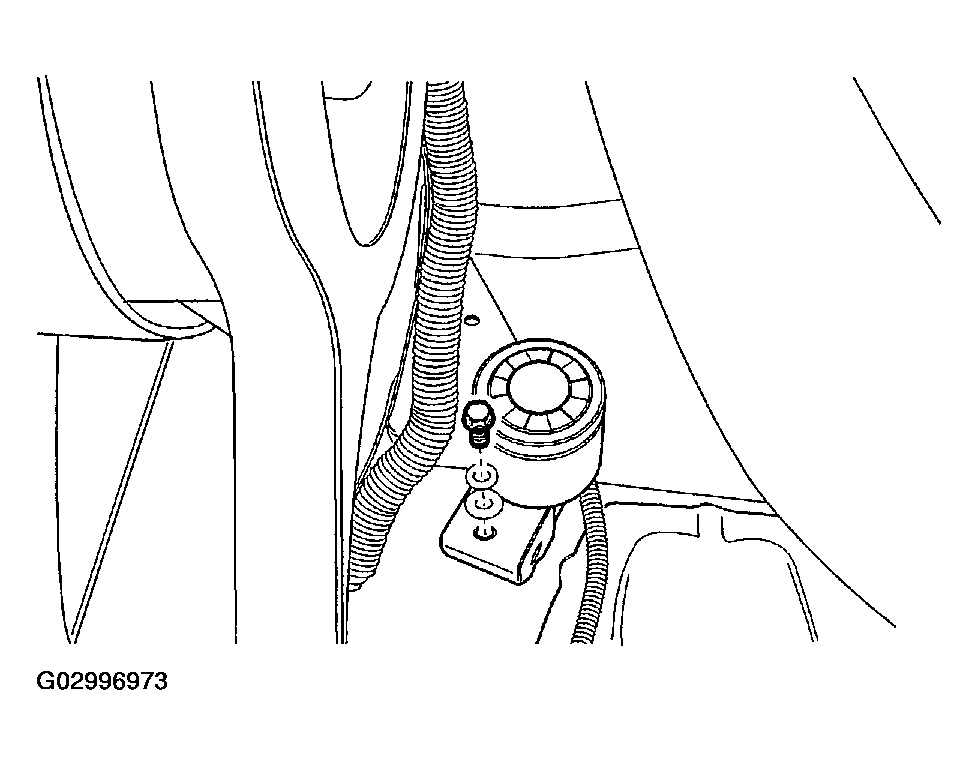

Fig 1: Installing Siren Bracket Mounting Bolt
G02996973Courtesy of SUZUKI OF AMERICA CORP.
