Hood Open Switch Removal

  1. Disconnect the negative battery cable.
  2. Reach underneath the hood open switch and hold the mounting nut while removing the hood open mounting bolt.
  3. After the mounting bolt and nut are removed, push the hood open switch upward from below.
  4. Disconnect the electrical connector from the hood open switch.
  5. Remove the hood open switch.

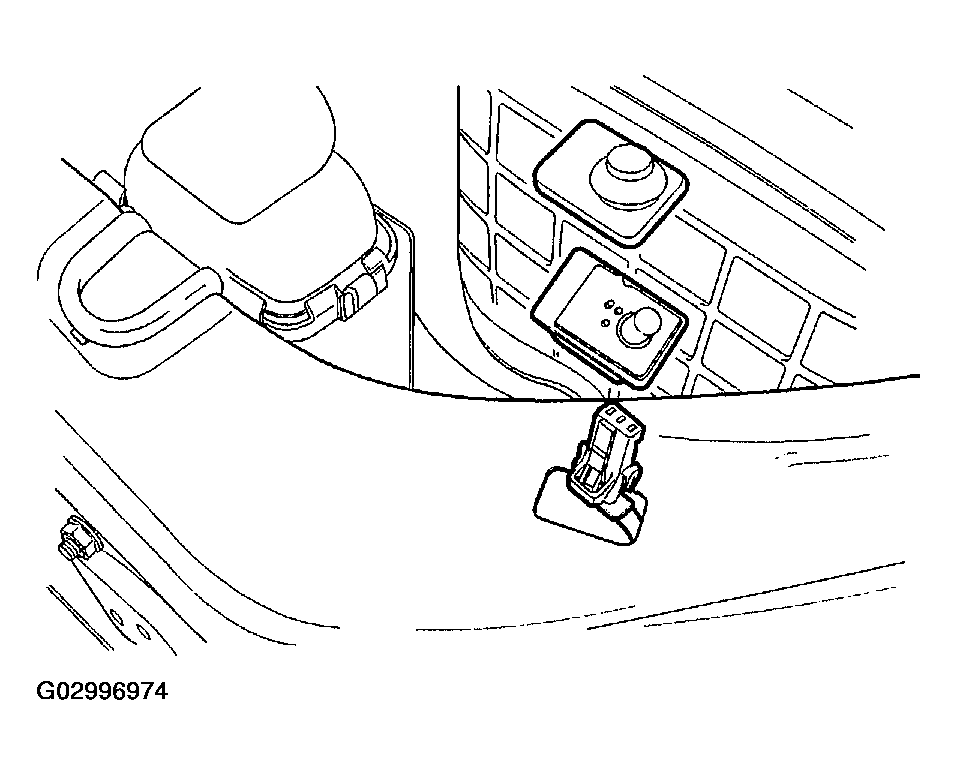

Fig 1: Removing Hood Open Switch
G02996974Courtesy of SUZUKI OF AMERICA CORP.
