Front Door Lock Removal

  1. Disconnect the negative battery cable.
  2. Remove the seal trim. Refer to DOOR SEAL TRIM REMOVAL (FOR FRONT DOOR) .
  3. Remove the screws and the front door lock.
  4. Disconnect the lock rods.
  5. Disconnect the electrical connector.

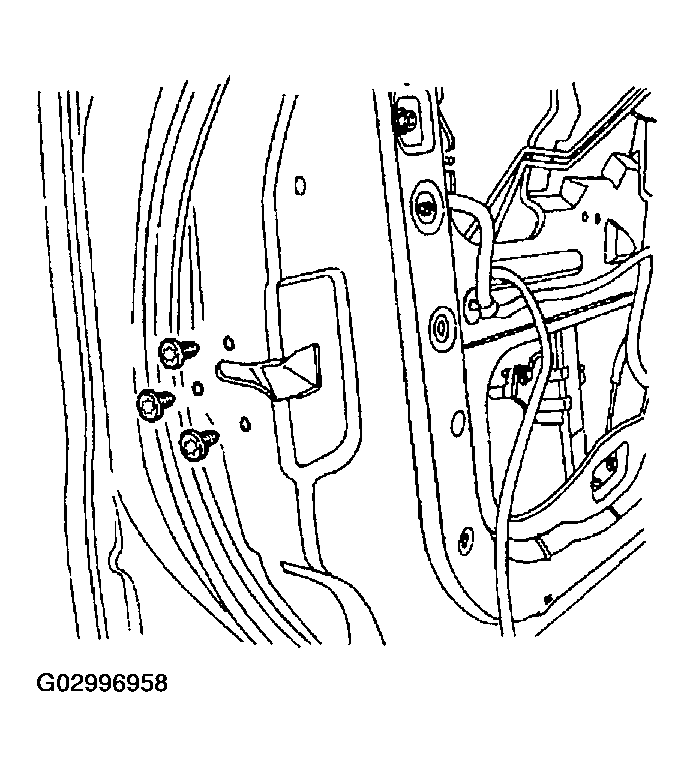

Fig 1: Removing Screws & Front Door Lock
G02996958Courtesy of SUZUKI OF AMERICA CORP.
