Childproof Rear Door Lock Installation

  1. Connect the electrical connector.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the rear door lock with the screws.
    1. Tighten the rear door lock screws to 8 N.m (71 lb-in).

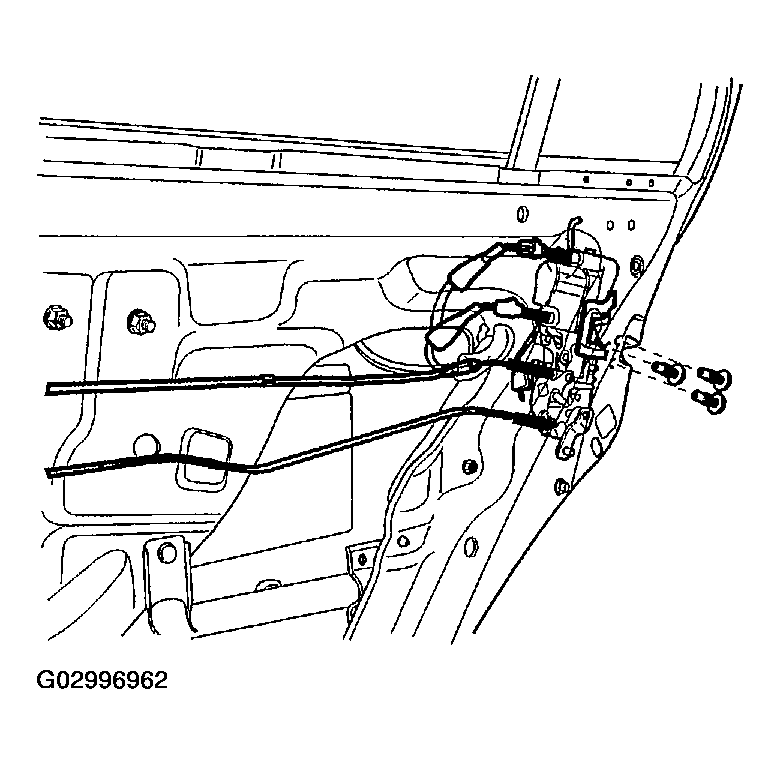

    Fig 1: Installing Rear Door Lock
    G02996962Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the lock rods.
  4. Install the guide rail with the bolts and the screw.
    1. Tighten the rear door guide rail screw to 4 N.m (35 lb-in).
    2. Tighten the rear door guide rail bolts to 8 N.m (71 lb-in).
  5. Install the door seal trim. Refer to DOOR SEAL TRIM INSTALLATION (FOR FRONT DOOR) .
  6. Connect the negative battery cable.
Fig 2: Installing Guide Rail
G02996963Courtesy of SUZUKI OF AMERICA CORP.
