Schematic and Routing Diagram

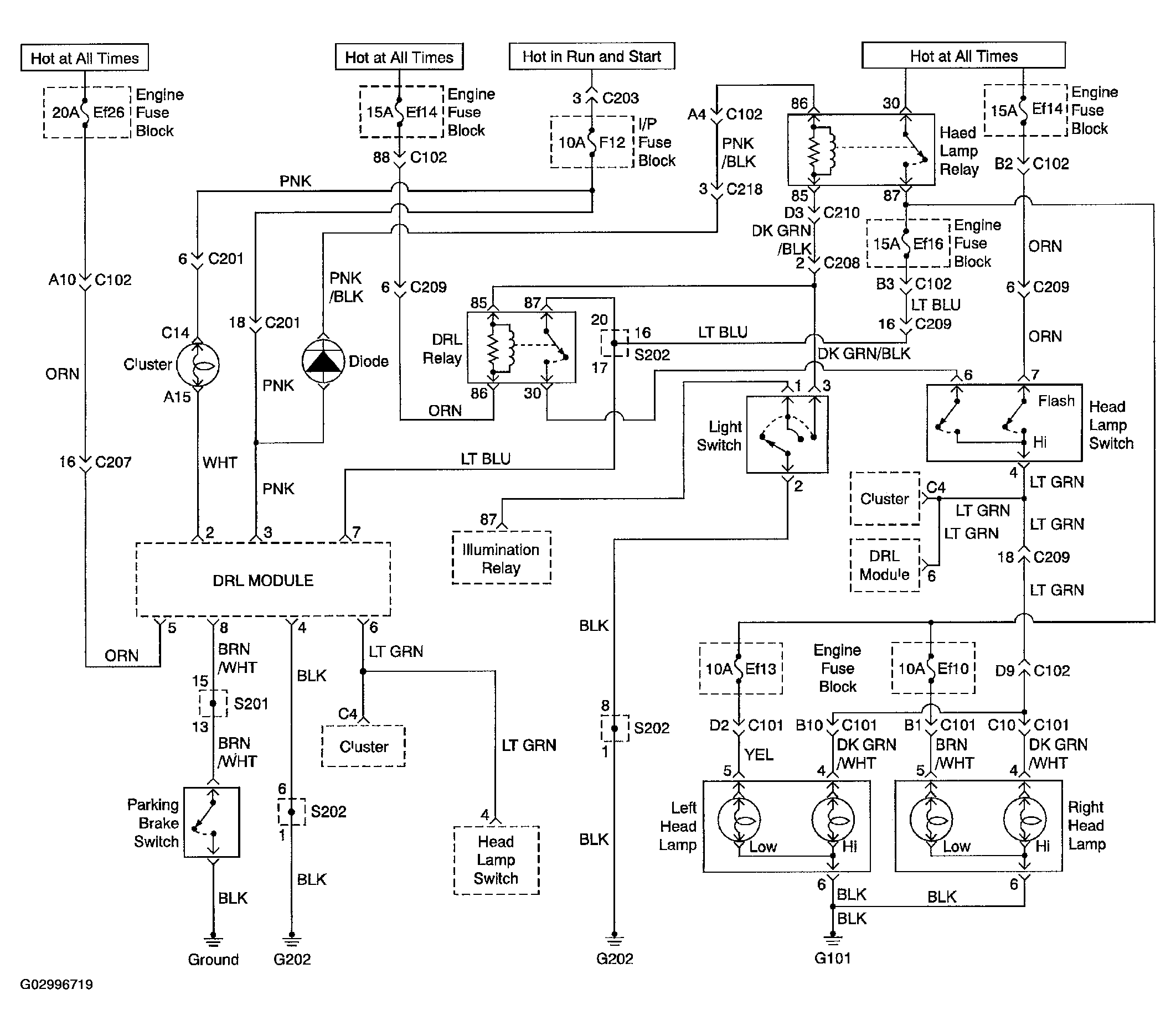

Fig 1: Headlamps & Day Time Running Lamp Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

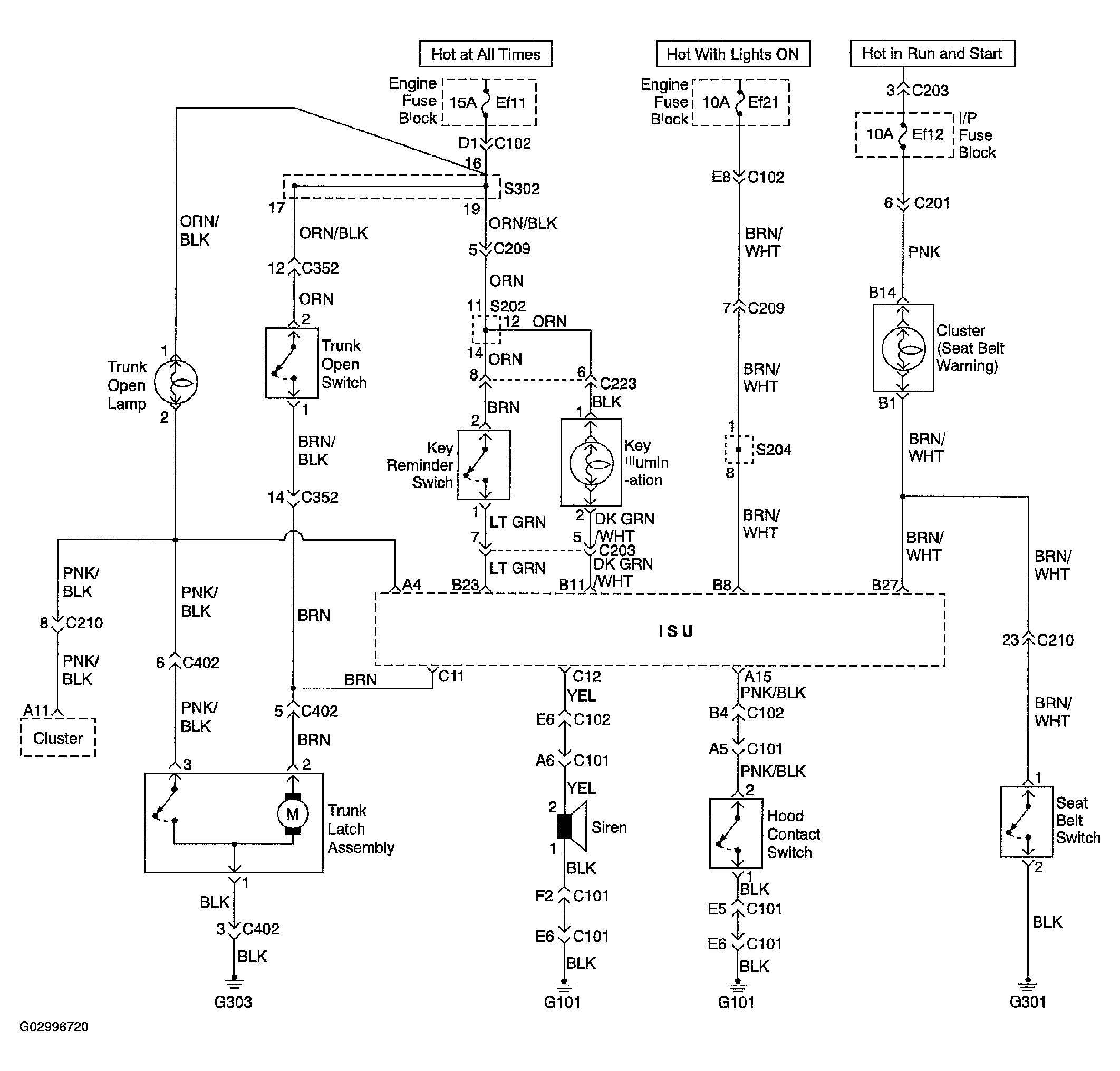

Fig 2: Key Illumination & Luggage Compartment Lamp Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

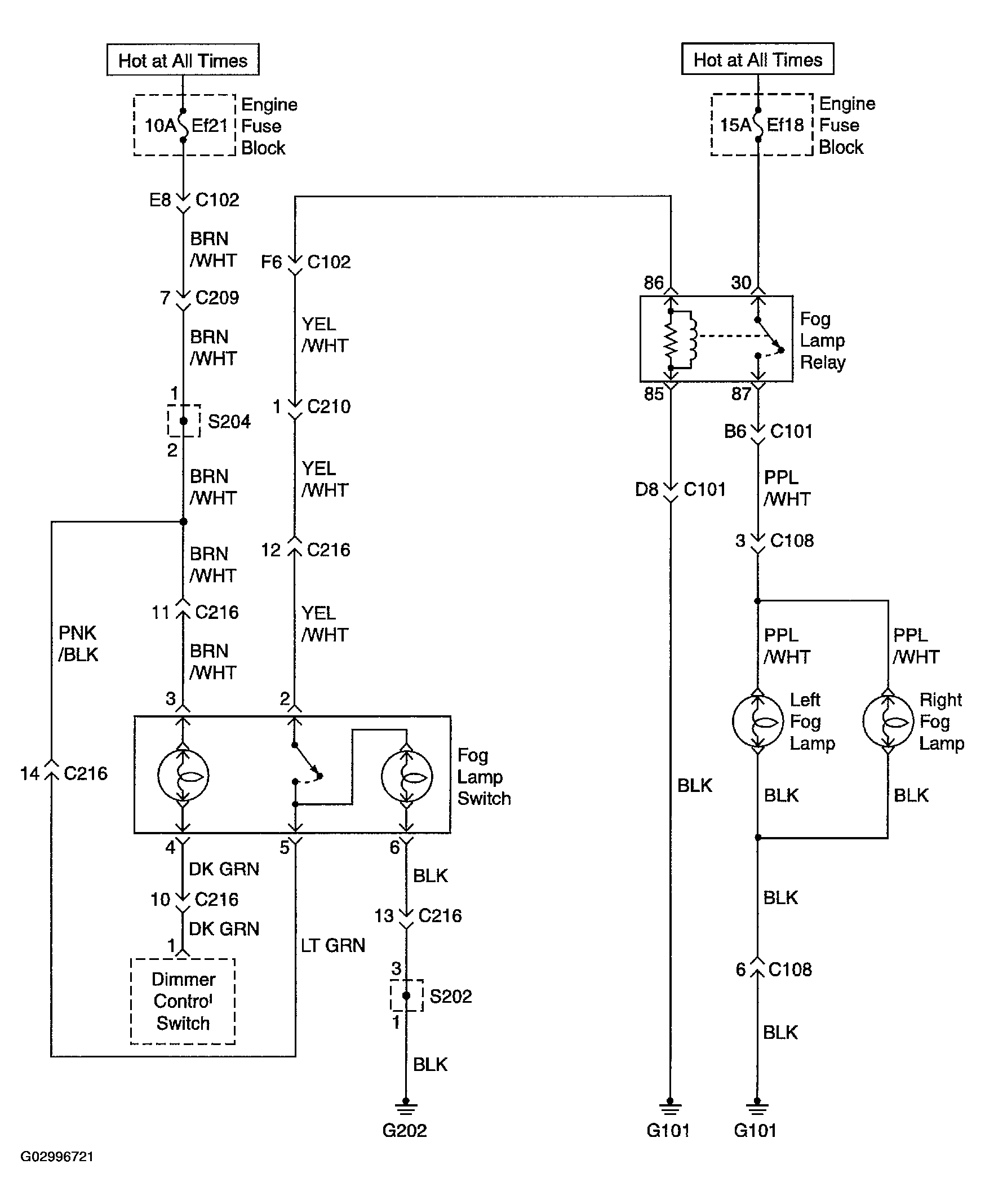

Fig 3: Fog Lamps Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

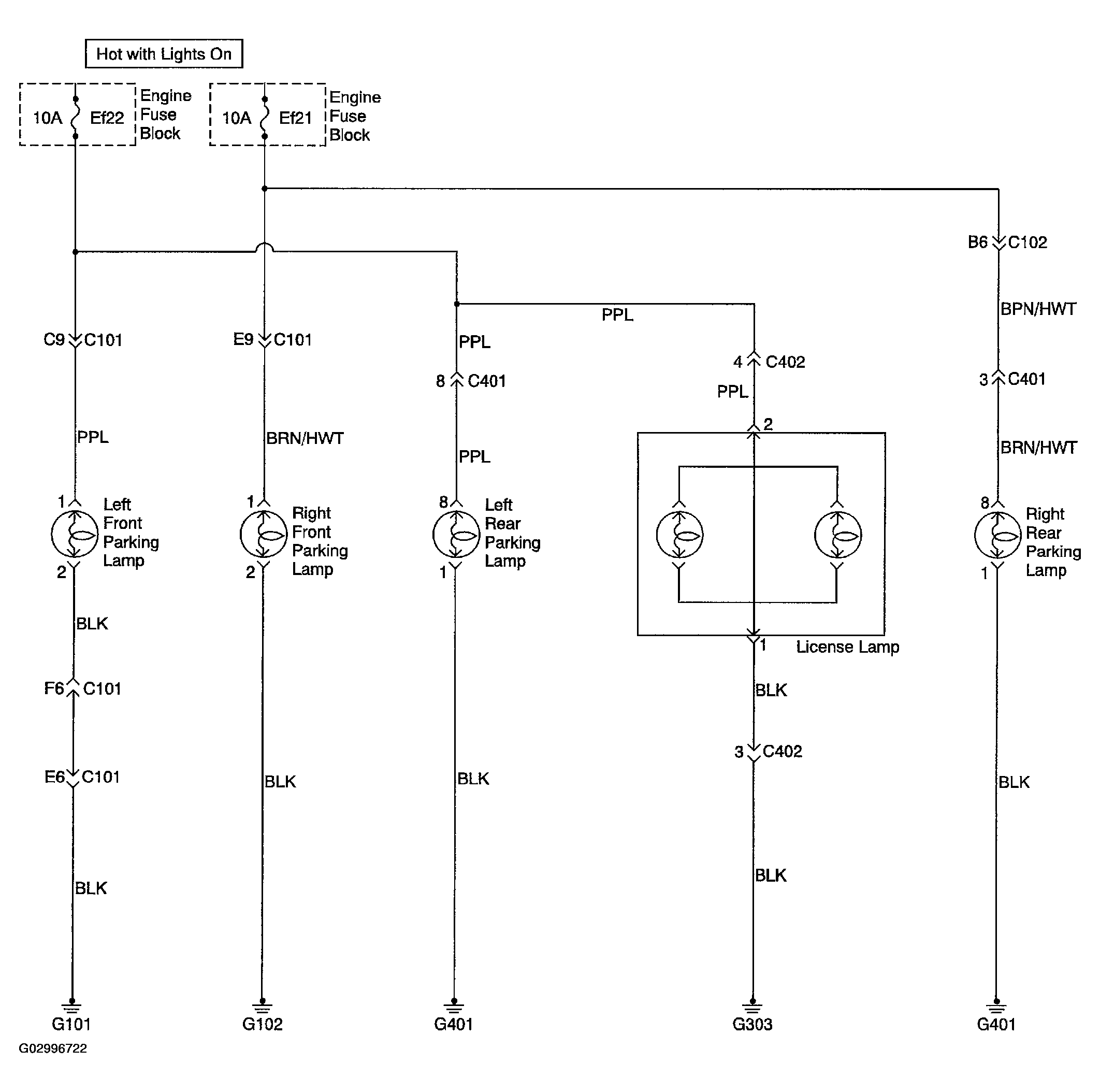

Fig 4: Tail & License Lamps Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

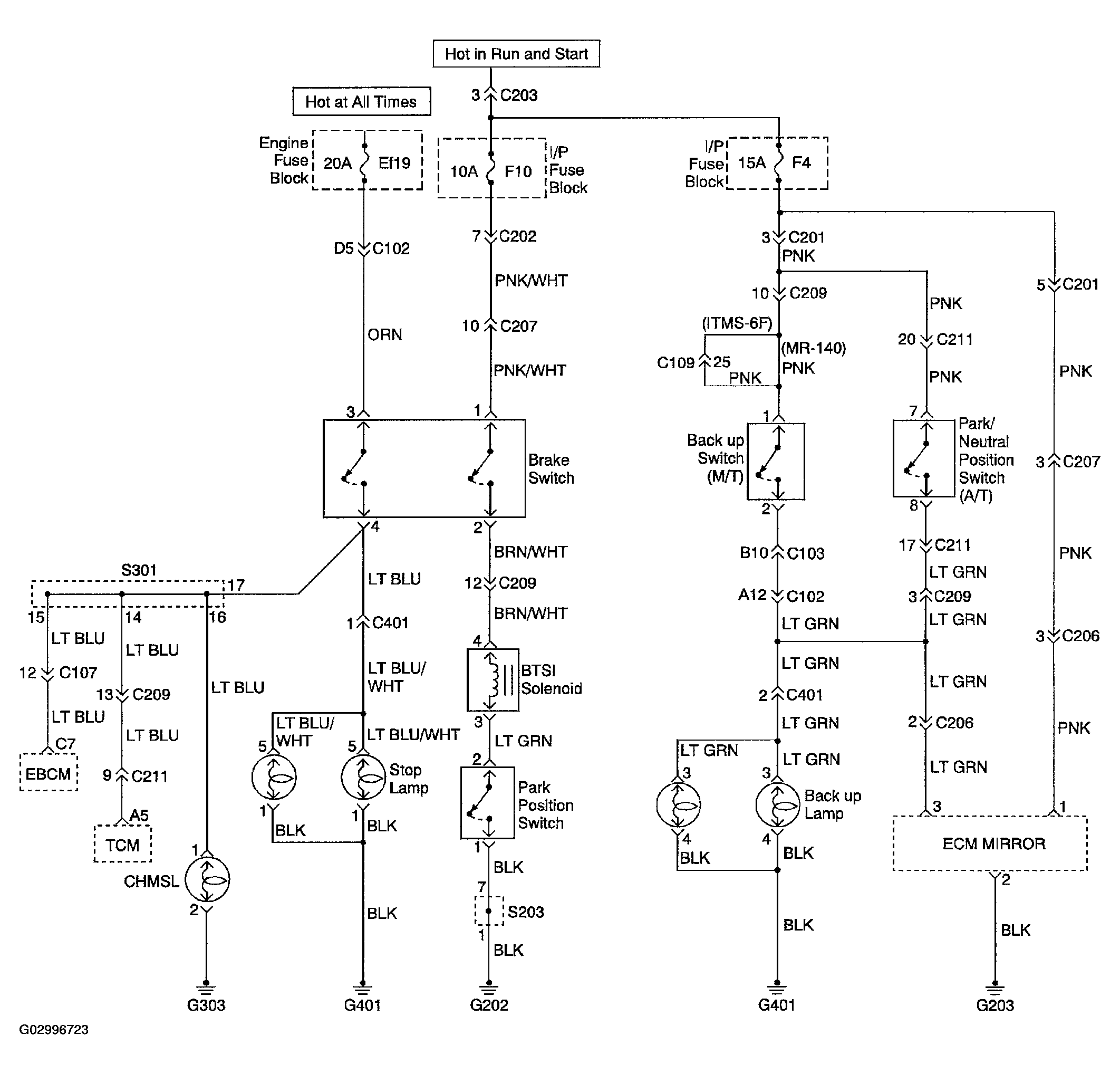

Fig 5: Stop & Backup Lamps Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

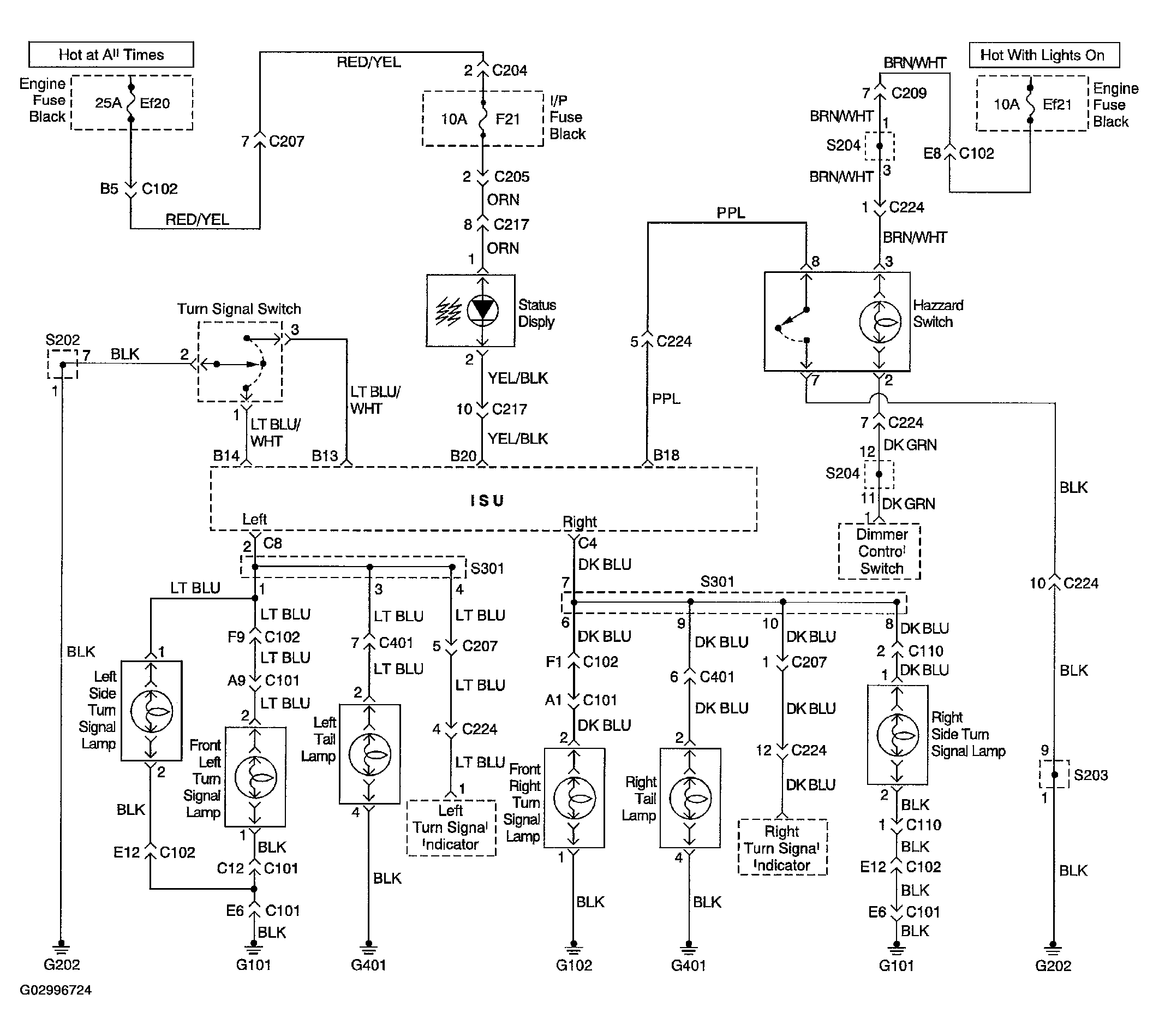

Fig 6: Turn Signal & Hazard Lamps Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

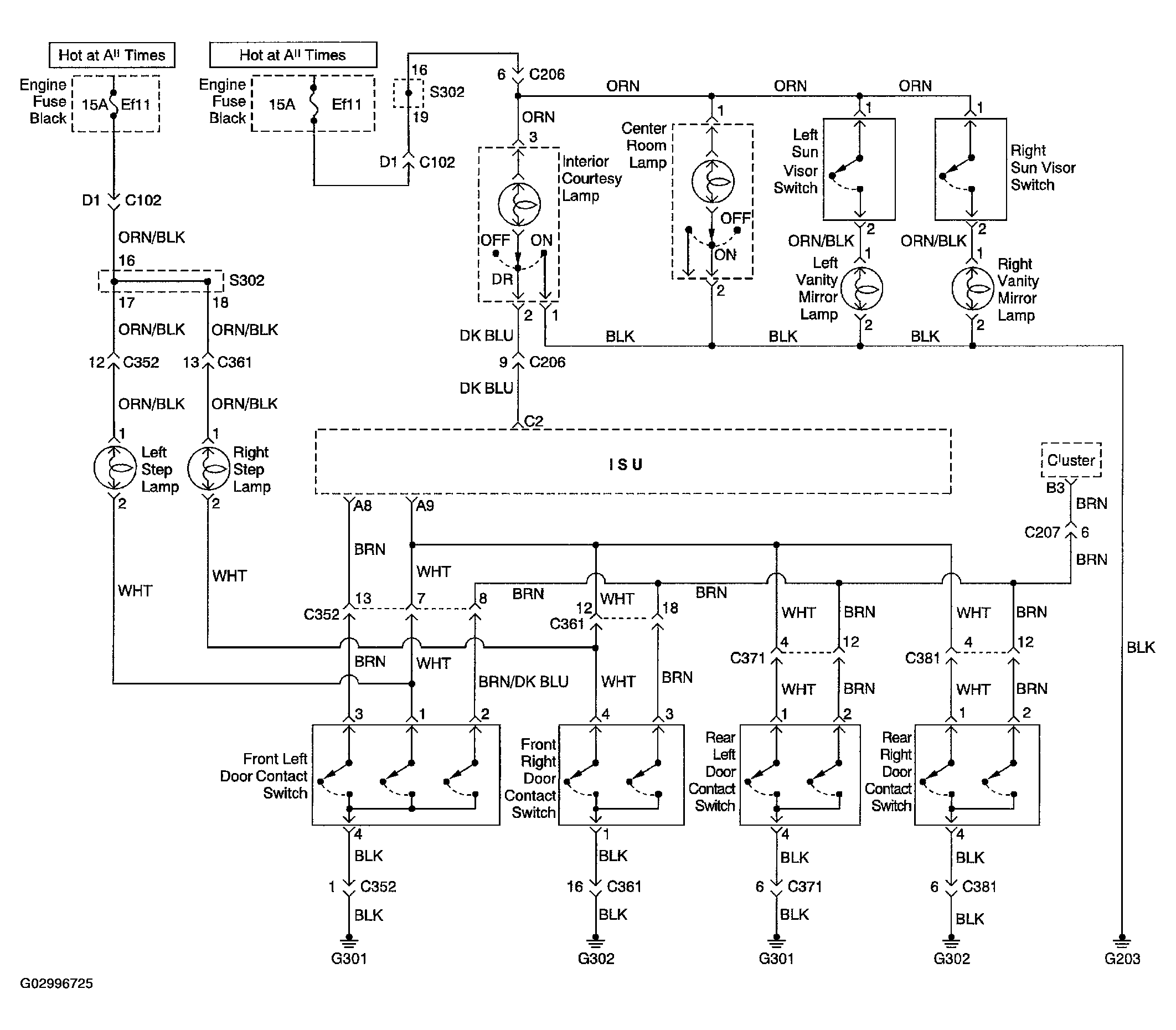

Fig 7: Interior Courtesy Lamps Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

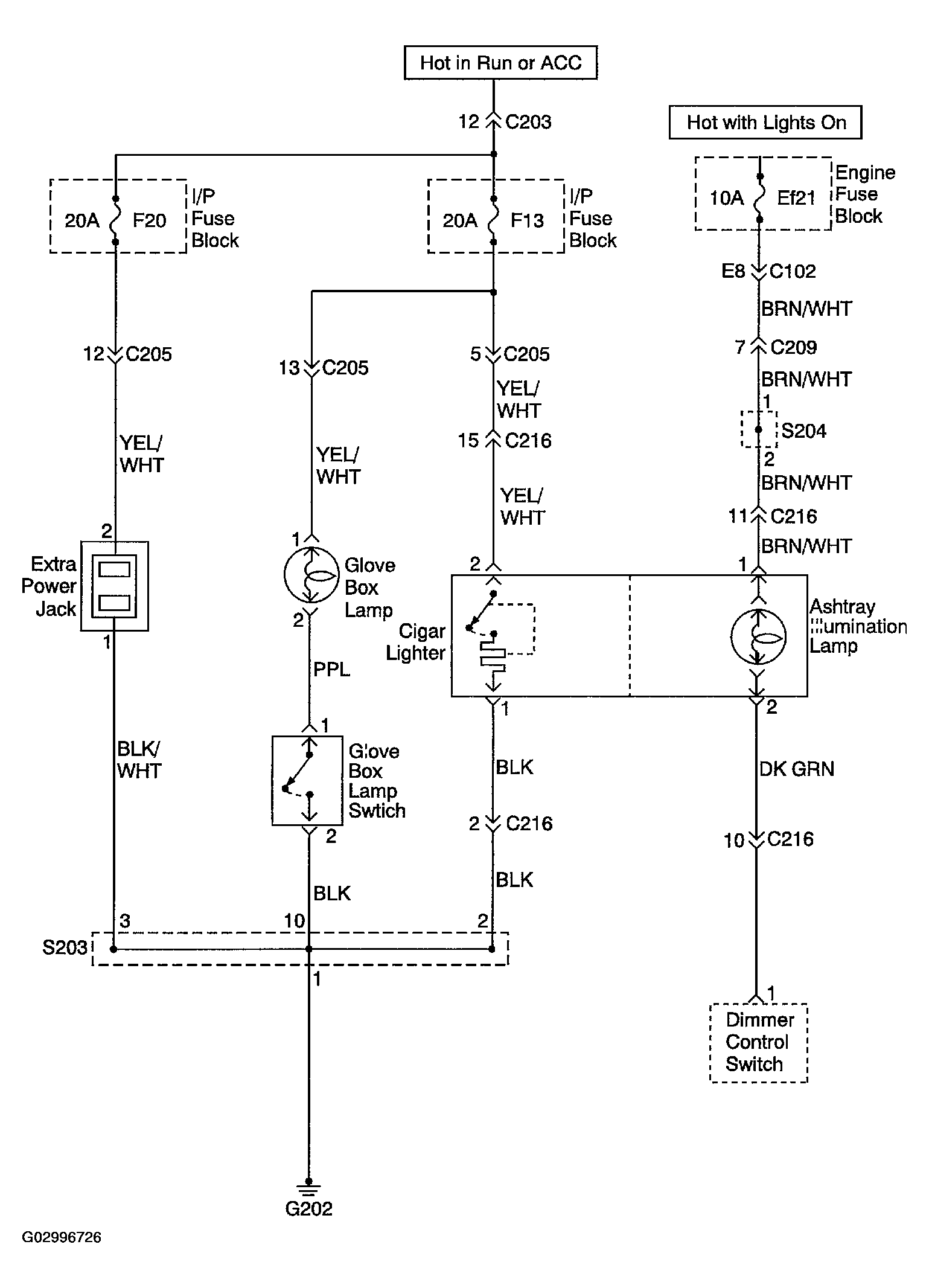

Fig 8: Glove Box Lamp, Ashtray Lamp & Cigar Lighter Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.
