Rear Combination Lamps Installation

  1. Install the replacement bulbs.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the lamp assembly with the nuts.
    1. Tighten the rear combination lamp assembly nuts to 2 N.m (18 lb-in).
  3. Connect the electrical connectors.
  4. Connect the negative battery cable.

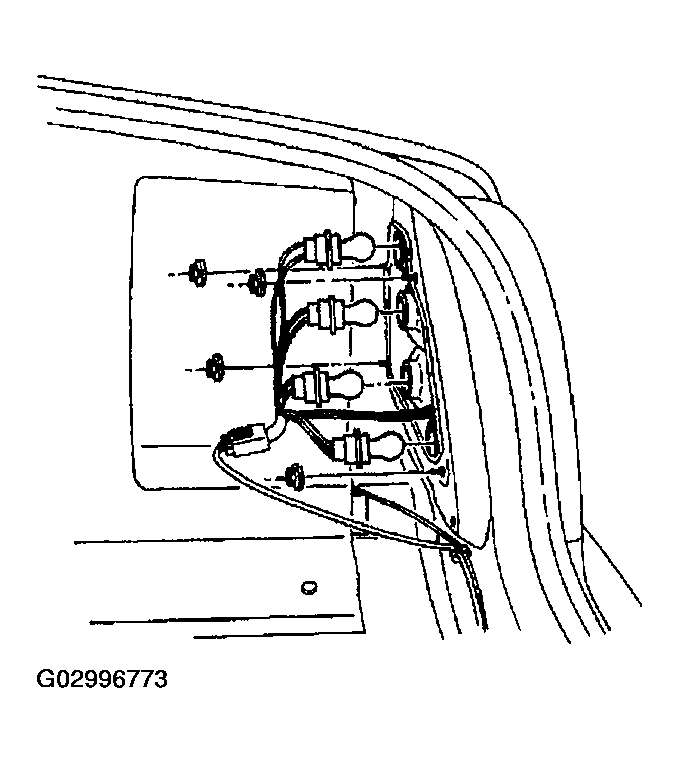

Fig 1: Installing Lamp Assembly
G02996773Courtesy of SUZUKI OF AMERICA CORP.
