License Plate Lamps Installation

  1. Install the replacement bulb.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the license plate lamp assembly with the screws.
    1. Tighten the license plate lamp assembly screws to 2 N.m (18 lb-in).
  3. Connect the negative battery cable.

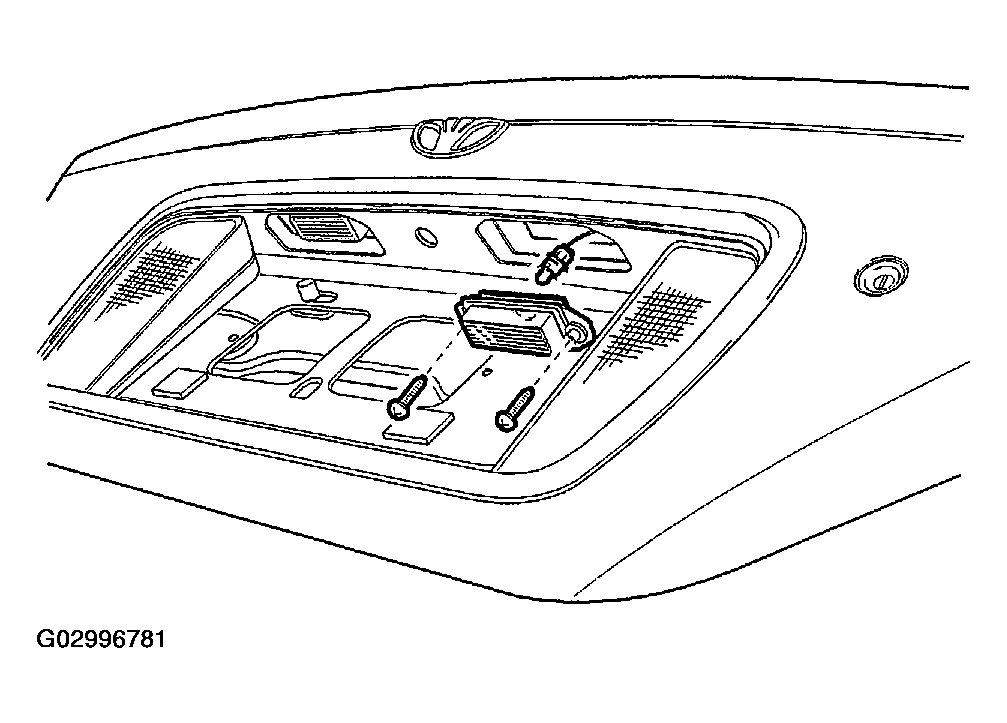

Fig 1: Installing License Plate Lamp Assembly
G02996781Courtesy of SUZUKI OF AMERICA CORP.
