Ignition Switch Keyhole Lamp Removal

Disconnect the negative battery cable.
Remove the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER REMOVAL ".
Remove the instrument cluster trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL REMOVAL .

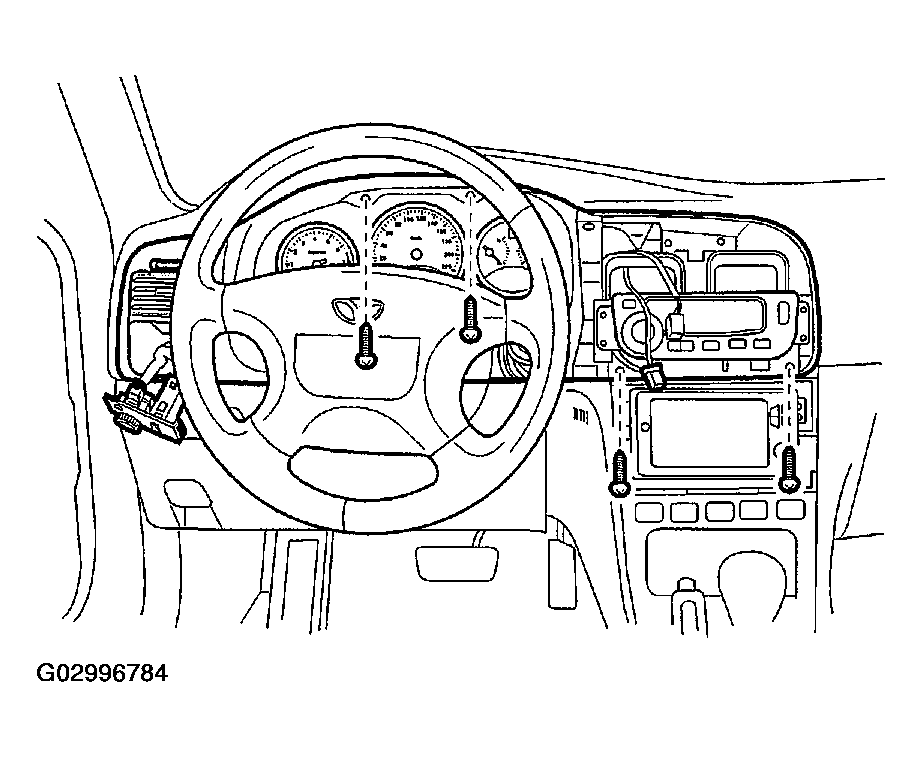

Fig 1: Removing Instrument Cluster Trim Panel
Courtesy of SUZUKI OF AMERICA CORP.
Remove the steering column upper, lower cover.
Remove the nuts and the bolts securing the steering column.
Disconnect the steering column electrical connector.
Lower the steering column.

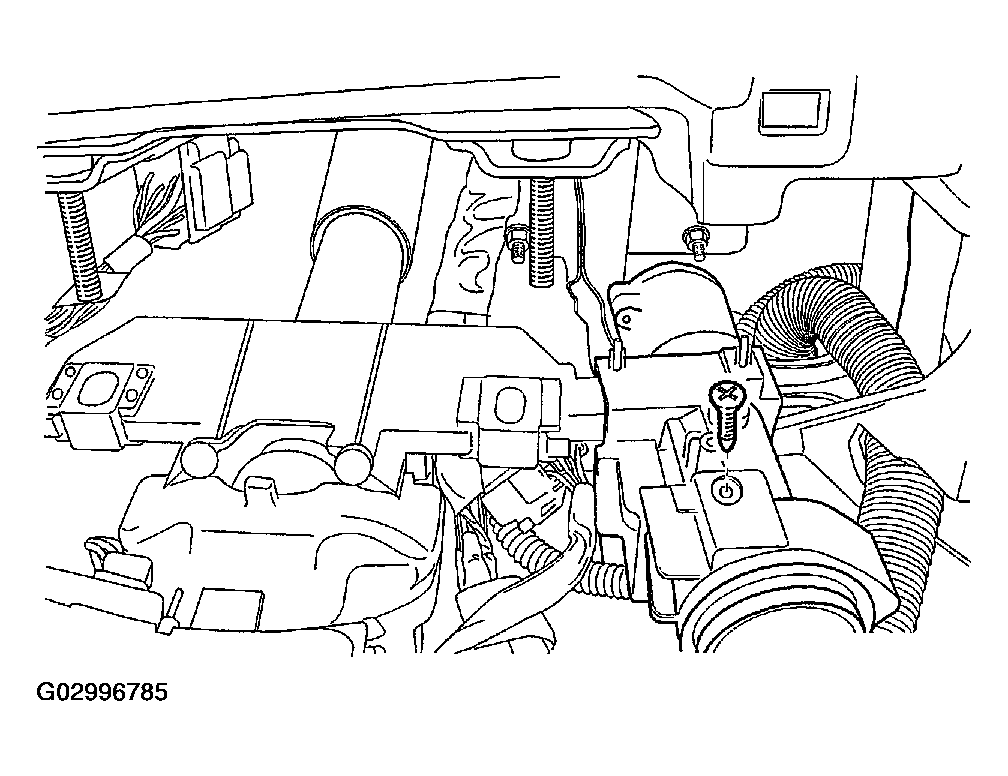

Fig 2: Removing Nuts/Bolts Securing Steering Column
Courtesy of SUZUKI OF AMERICA CORP.
Remove the ignition switch keyhole lamp and the bulb.

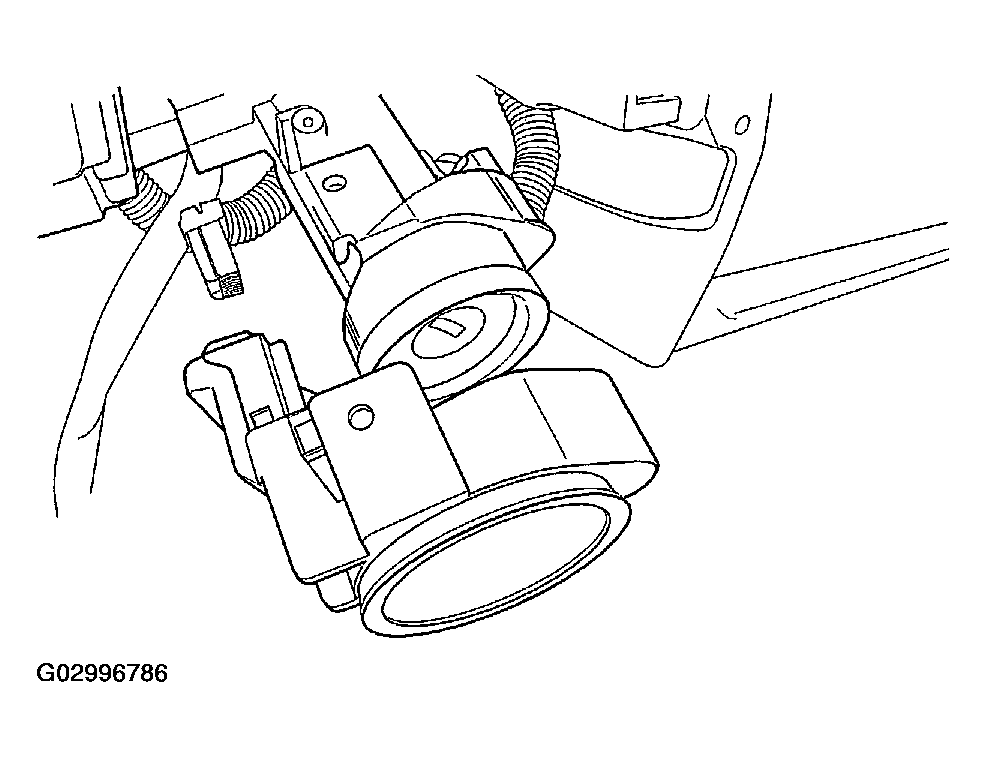

Fig 3: Removing Ignition Switch Keyhole Lamp

Courtesy of SUZUKI OF AMERICA CORP.
