Fog Lamps Installation

  1. Connect the bulb electrical connector.
  2. Install the bulb from the fog lamp assembly.
  3. Install the retaining wire.
  4. Install fog lamp access cover with the screws.

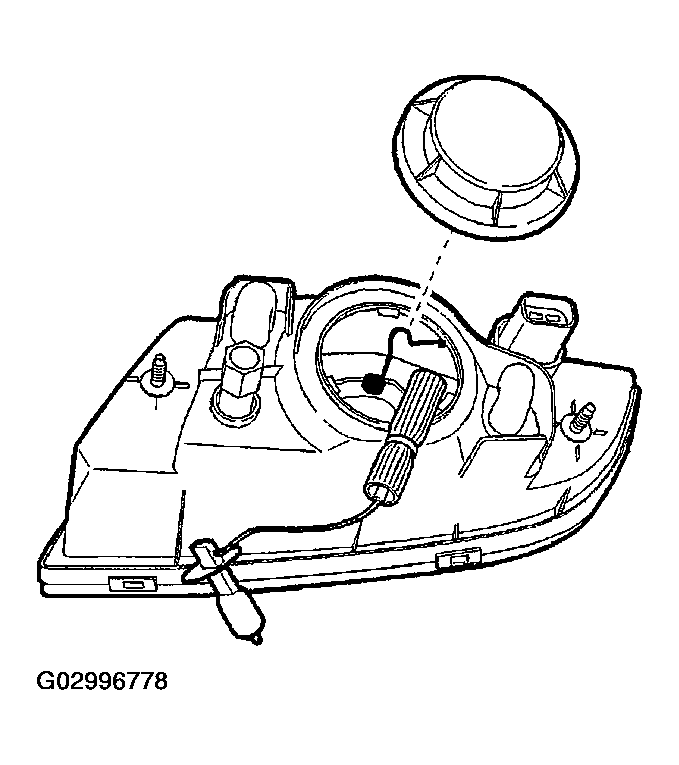

    Fig 1: Installing Bulb From Fog Lamp Assembly
    G02996778Courtesy of SUZUKI OF AMERICA CORP.
  5. Connect the fog lamp assembly electrical connector.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  6. Install the fog lamp assembly.
  7. Install the fog lamp assembly with the screws.
  8. Connect the negative battery cable.
Fig 2: Installing Fog Lamp Assembly
G02996779Courtesy of SUZUKI OF AMERICA CORP.
