Daytime Running Lamp Module Installation

  1. Connect the electrical connector.
  2. Install the daytime running lamp module with the screws.
  3. Install the stereo cassette radio. Refer to STEREO CASSETTE AM/FM RADIO INSTALLATION .
  4. Connect the negative battery cable.

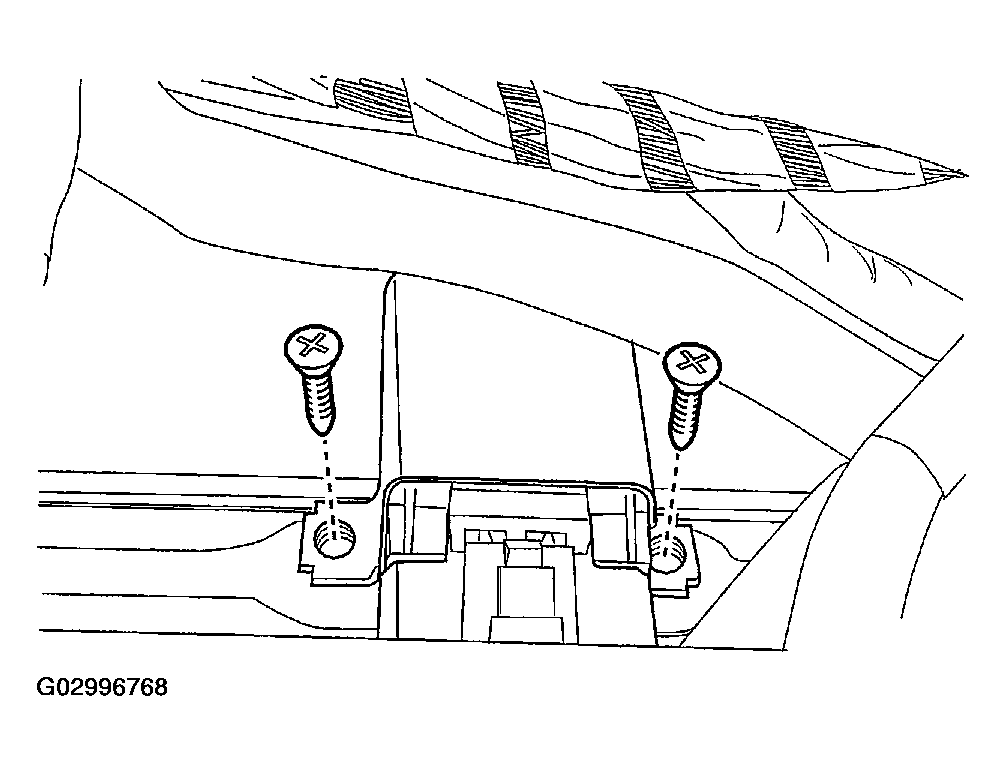

Fig 1: Installing Daytime Running Lamp Module
G02996768Courtesy of SUZUKI OF AMERICA CORP.
