Glass Antenna Module Installation

  1. Install the glass antenna module with the screws.
  2. Connect the electrical connectors.
  3. Install the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL INSTALLATION .
  4. Connect the negative battery cable.

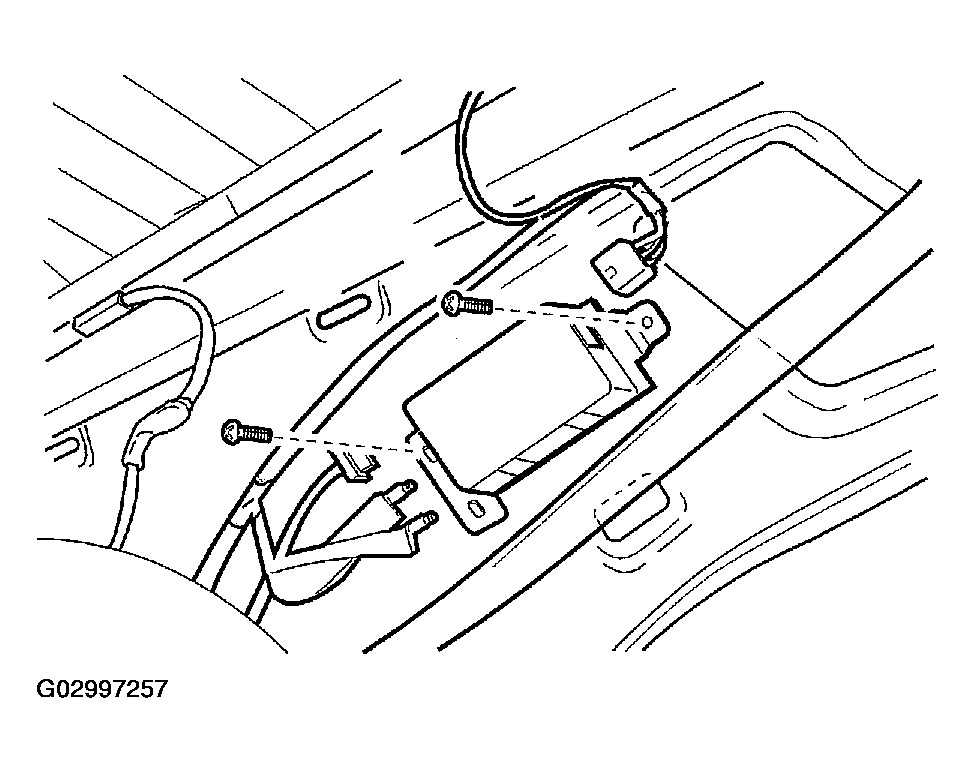

Fig 1: Installing Glass Antenna Module
G02997257Courtesy of SUZUKI OF AMERICA CORP.
