Cruise Control System Circuit Diagram

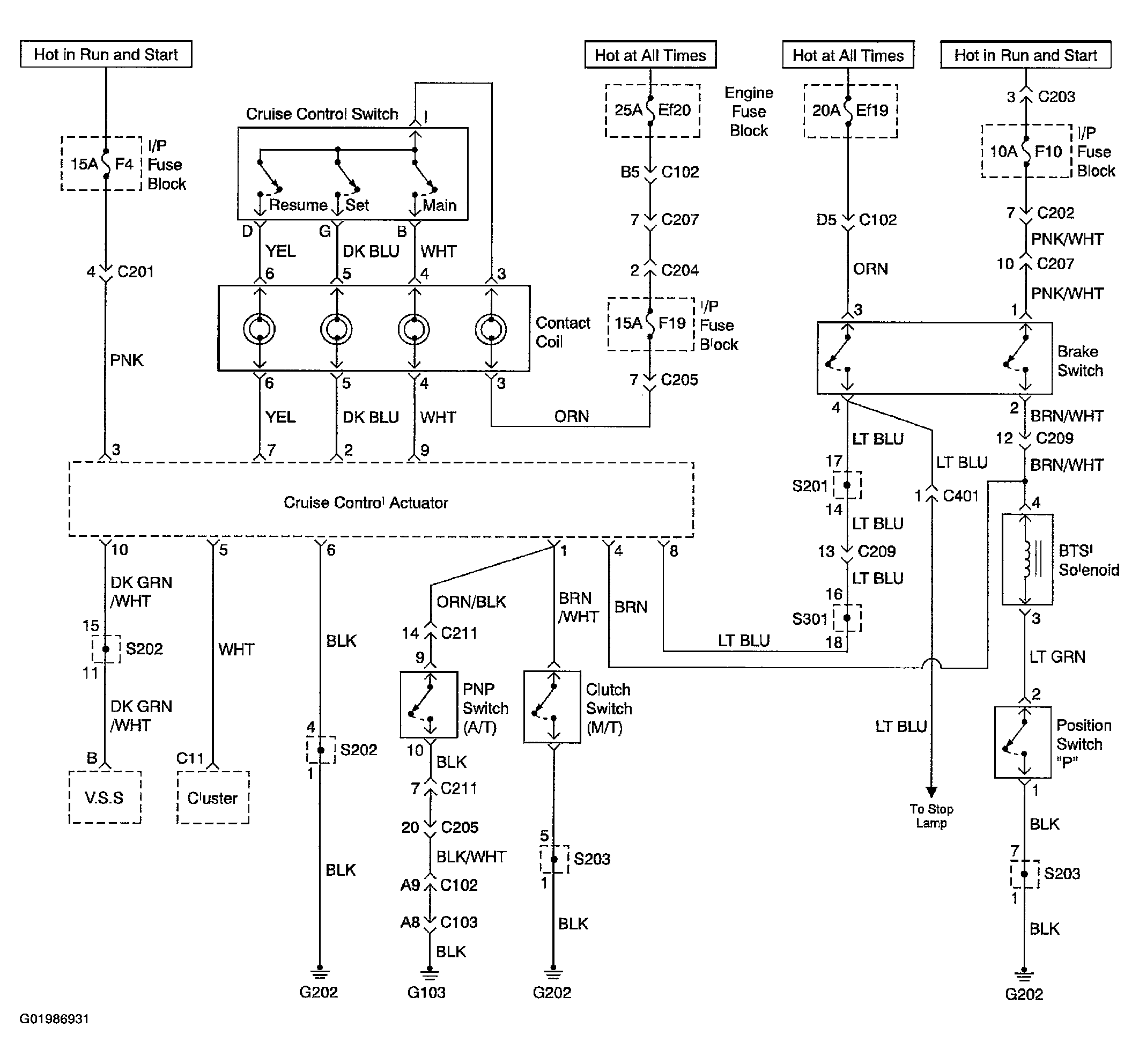

Fig 1: Cruise Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
