Test Description

The number(s) below refer to step(s) on the diagnostic table.

Step 5  . The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

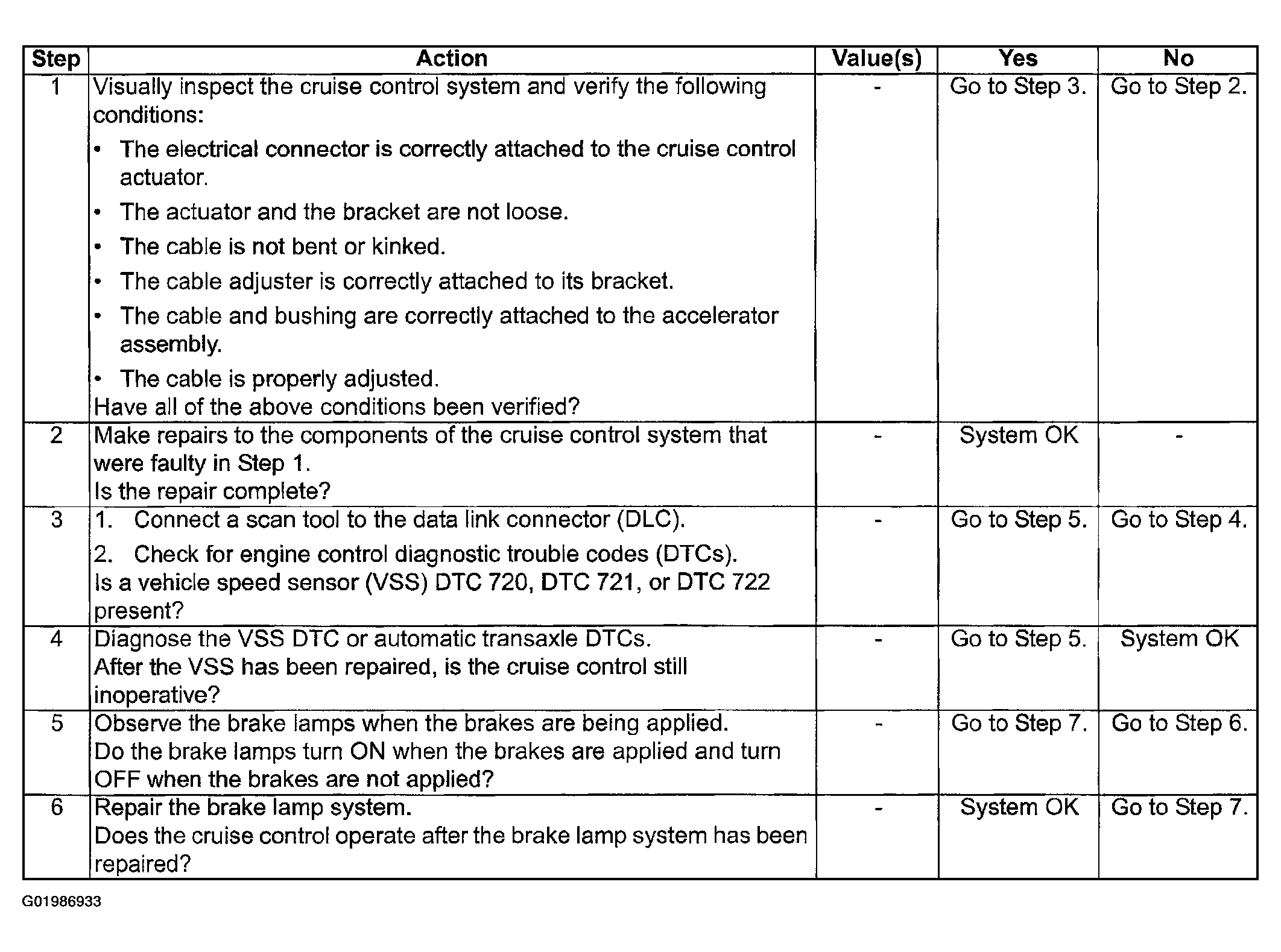

Fig 1: Cruise Control Does Not Operate Diagnosis Chart (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

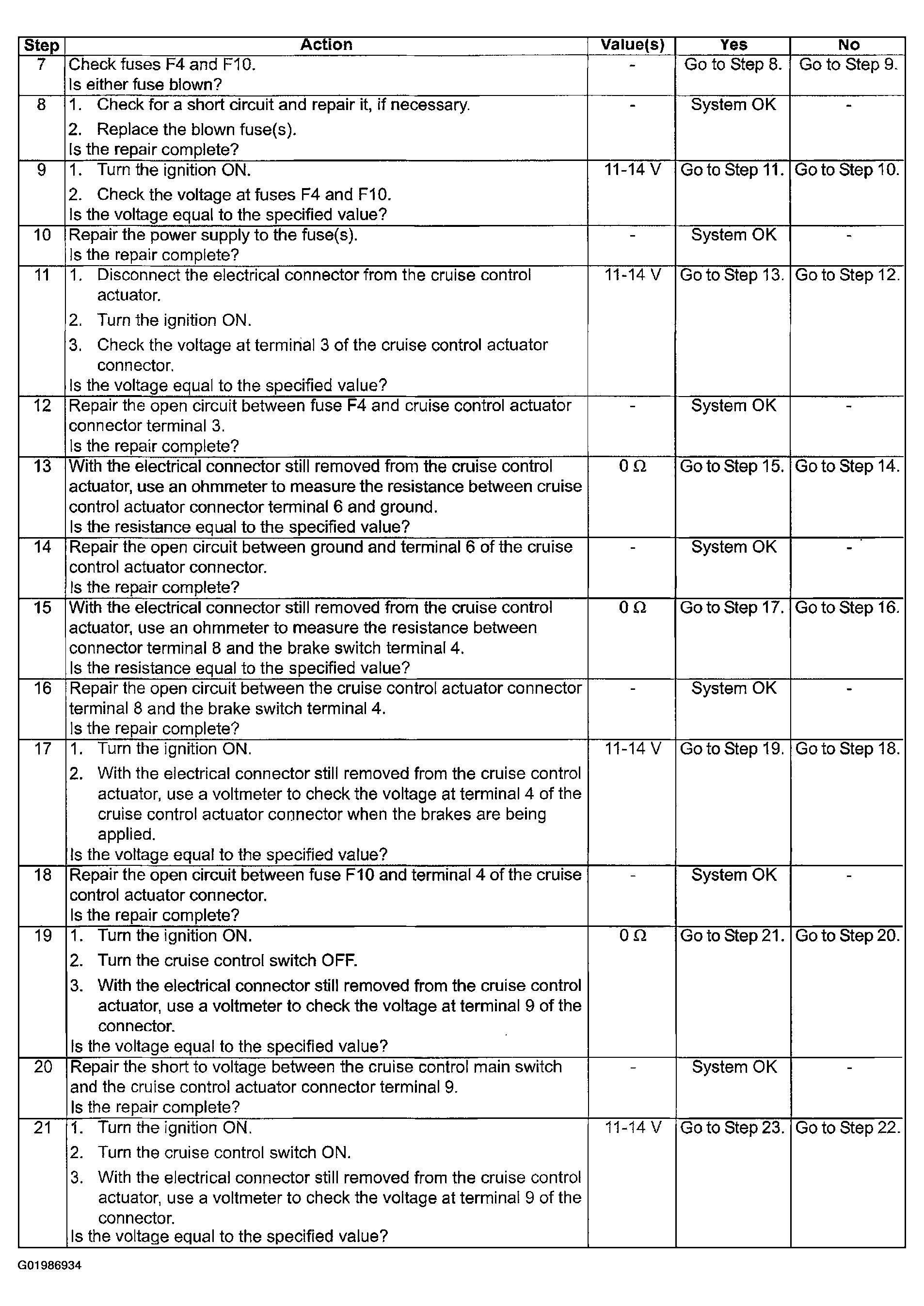

Fig 2: Cruise Control Does Not Operate Diagnosis Chart (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

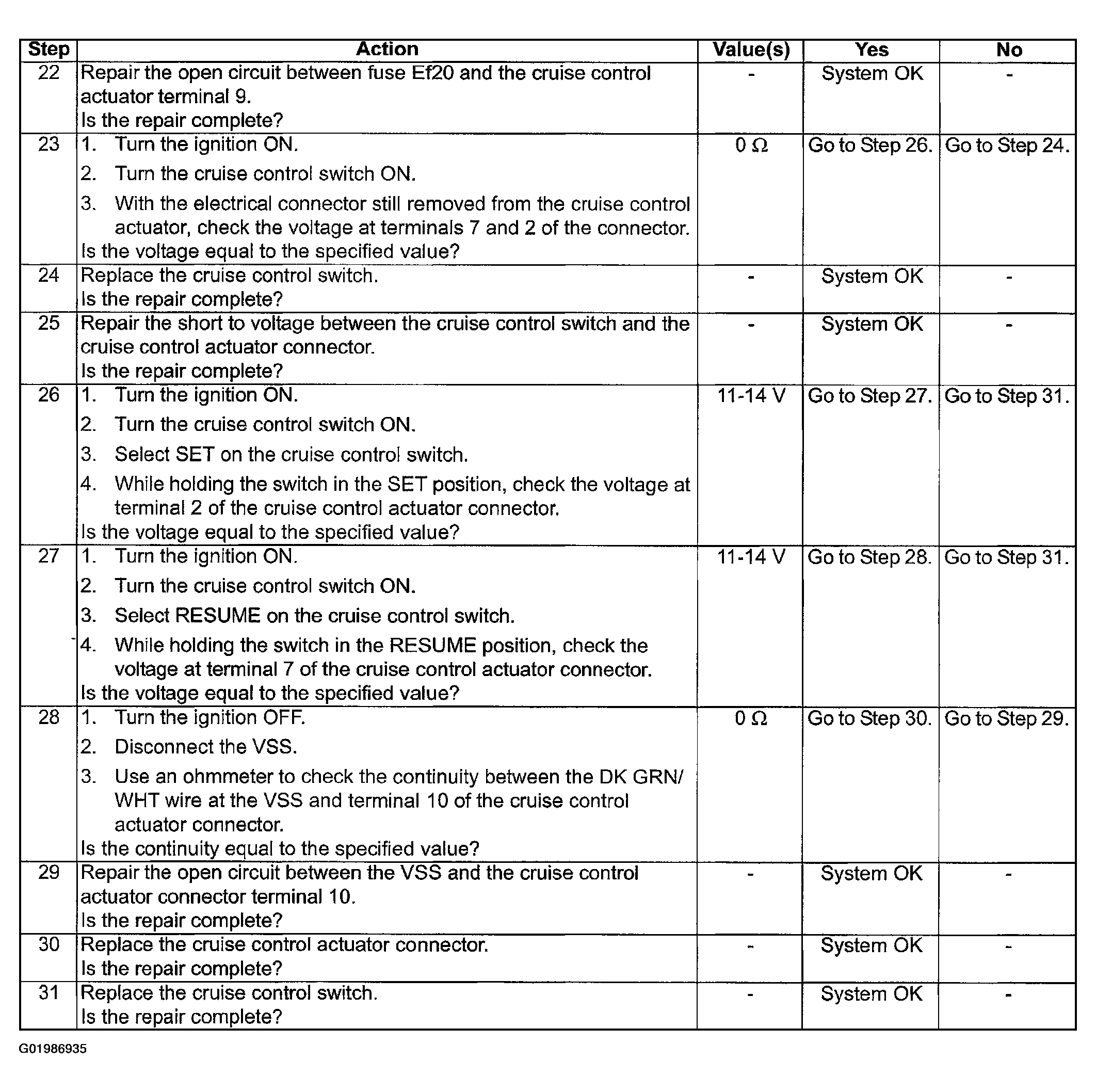

Fig 3: Cruise Control Does Not Operate Diagnosis Chart (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
