Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

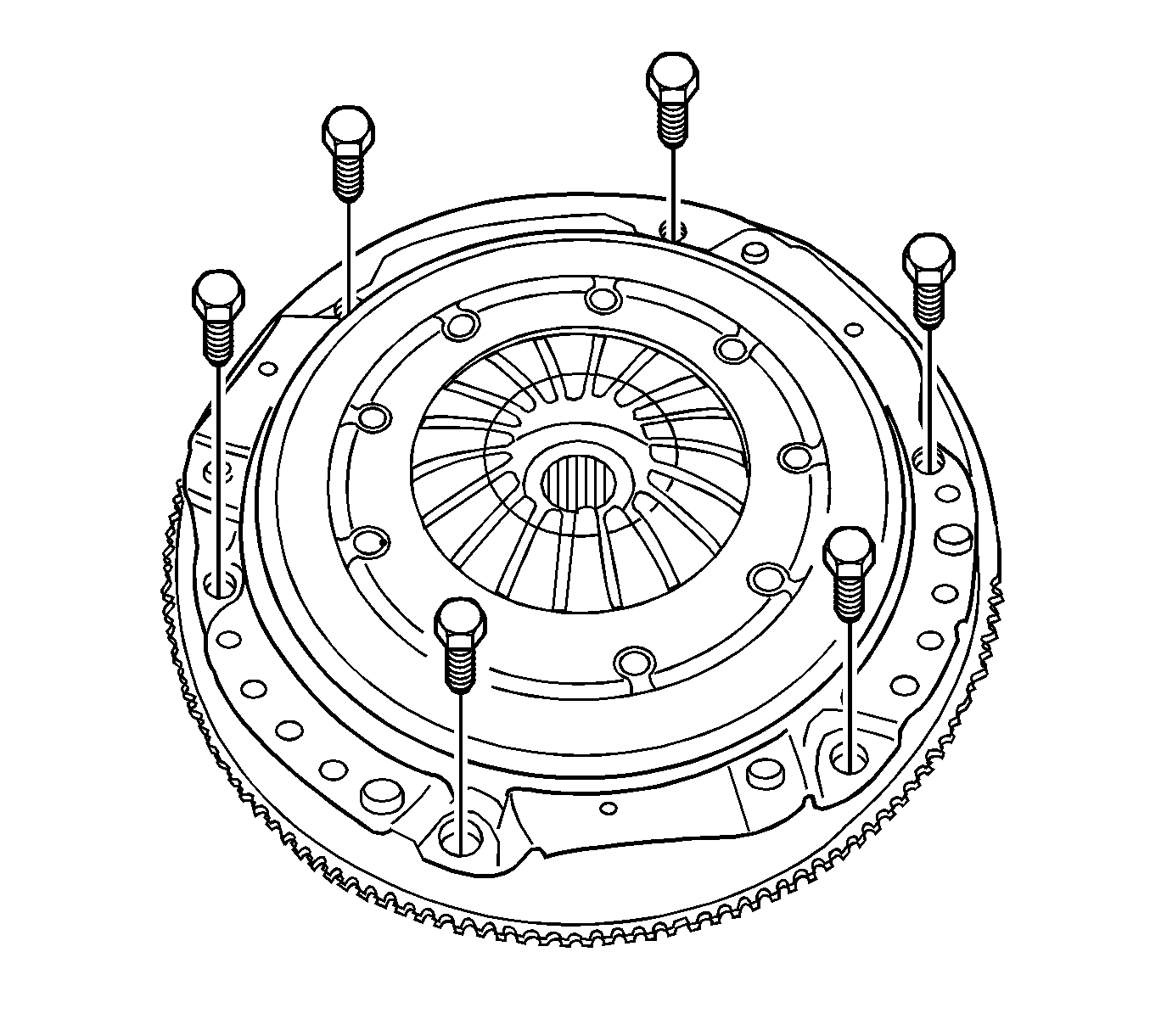

    Fig 1: Pressure Plate & Bolts
    GM1251799Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable.
  2. Remove the transaxle from the vehicle. Refer Transmission Replacement in Manual Transmission - D16.
  3. Remove the pressure plate bolts and the pressure plate.

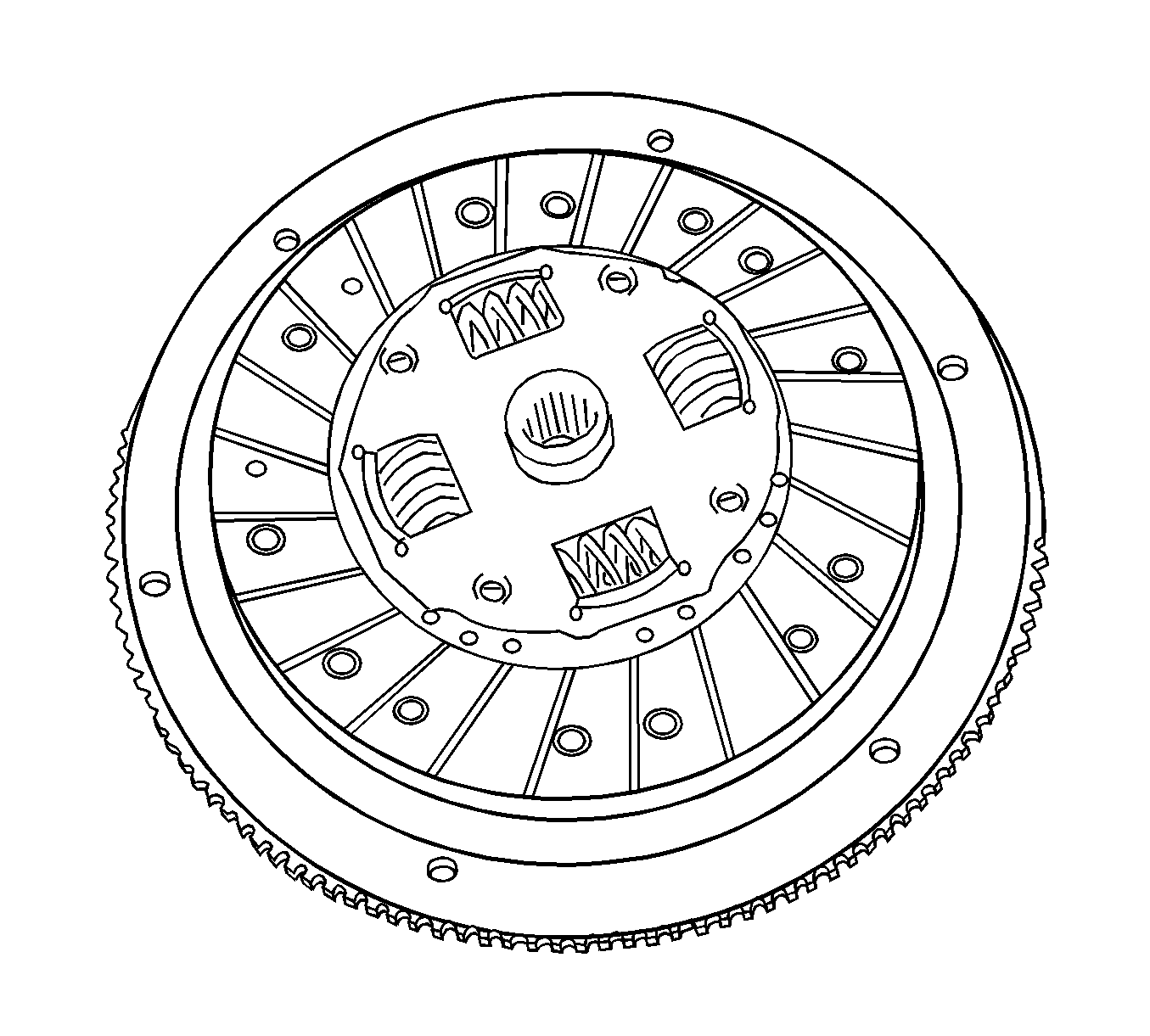

    4. Fig 2: Clutch Disc
    GM1251800Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Support the pressure plate when you remove the last bolt.
  4. Remove the clutch disc from the flywheel
