Installation Procedure

    Fig 1: Push Rod & Clutch Pedal
    GM1251785Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch pedal.
  2. Coat the push rod with multi-purpose grease.
  3. Install the push rod to the clutch pedal.
  4. Install the locking clip and push rod fixing pin.

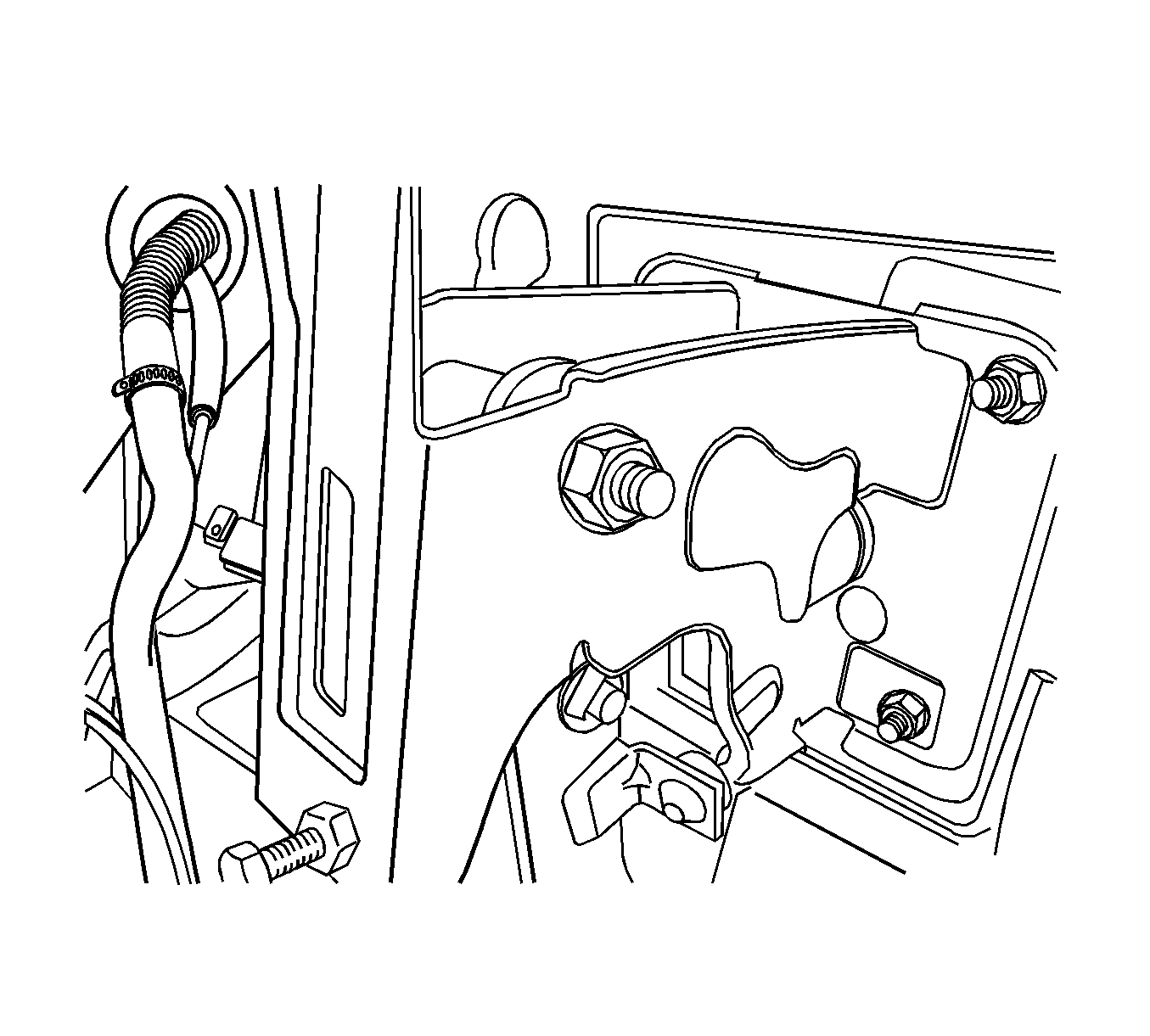

    5. Fig 2: Pedal Mounting Shaft
    GM1251787Courtesy of GENERAL MOTORS CORP.
  5. Coat the pedal mounting shaft with multi-purpose grease.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the nut, the washer, and the pedal mounting shaft.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  7. Connect the return spring to the clutch pedal.
  8. Connect the negative battery cable.
