Rear Suspension Components

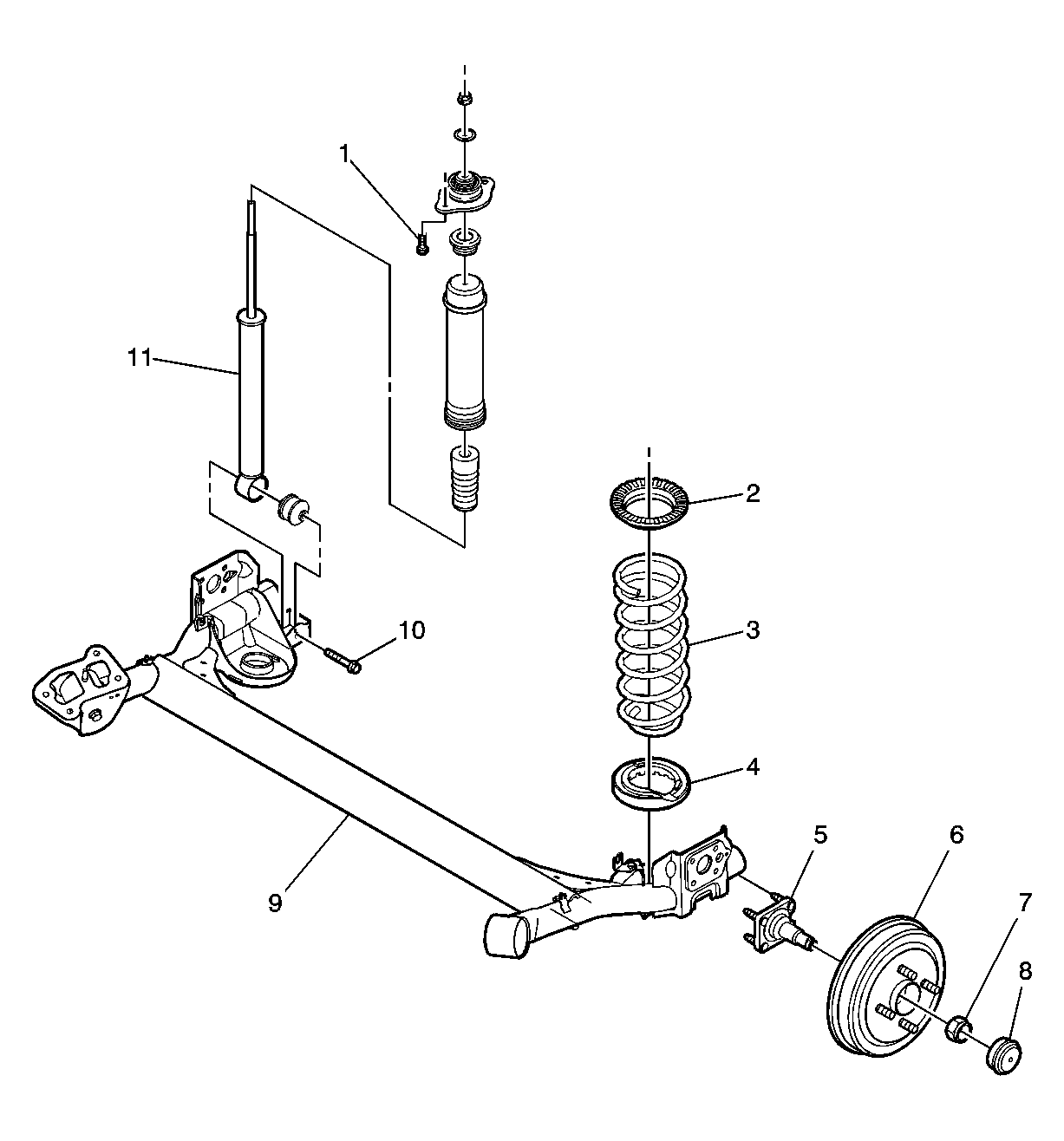

Fig 1: Rear Suspension Components

GM1248520

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shock Absorber Upper Bolt
2	Spring Upper Insulator
3	Coil Spring
4	Spring Lower Insulator
5	Wheel Bearing Spindle
6	Brake Drum
7	Caulking Nut
8	Spindle Cap
9	Rear Axle
10	Shock Absorber Lower Bolt
11	Shock Absorber
