Installation Procedure

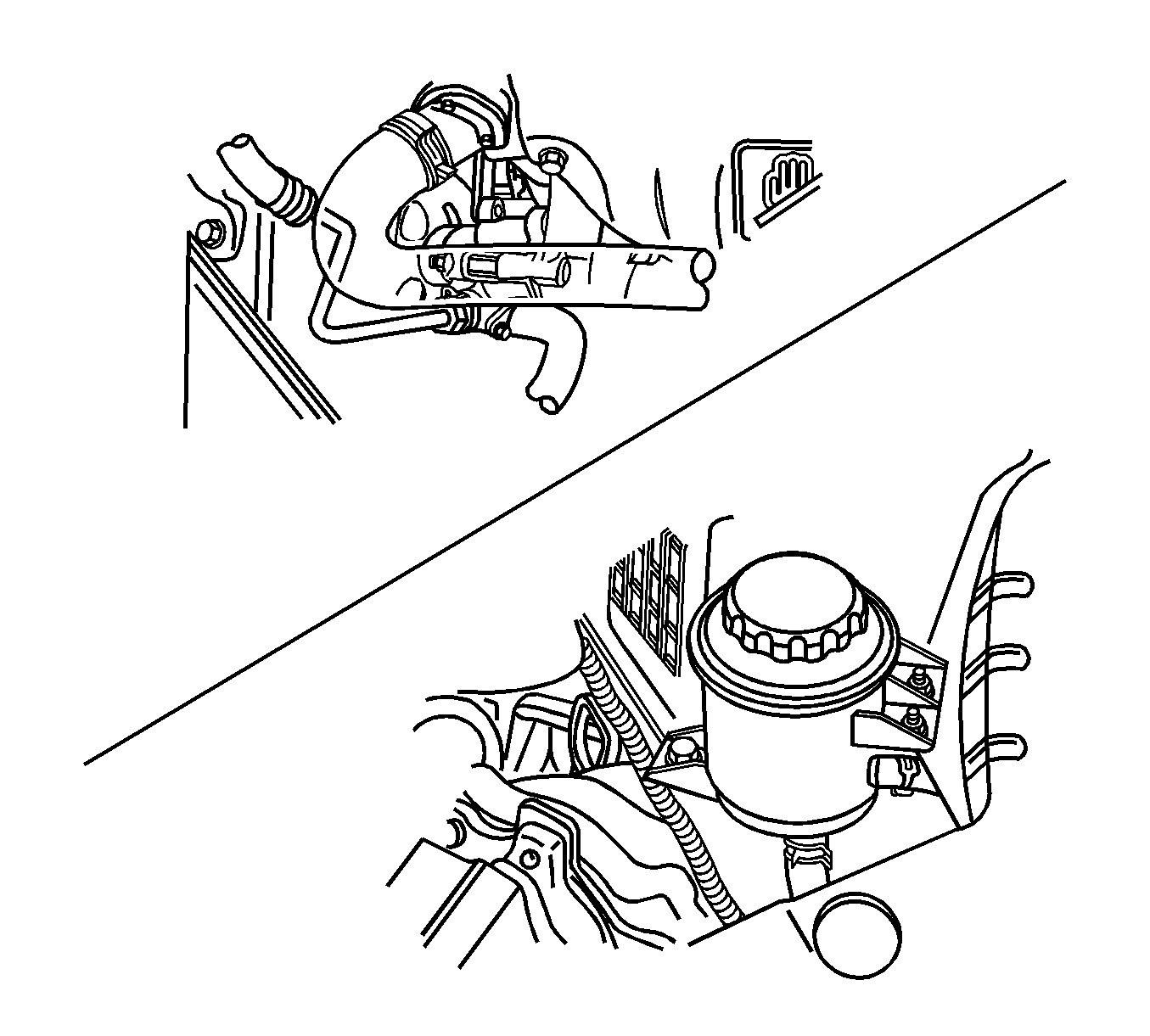

Fig 1: Power Steering Fluid & Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Fig 2: Pressure Line Inlet Pipe & Steering Gear

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Connect the pressure line inlet pipe to the steering gear.
Tighten: Tighten the steering gear inlet pipe fitting to 28 N.m (21 lb ft).

Fig 3: Pressure Line Pipe, Supply Line Hose, Inlet/Outlet Connections & Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Connect the pressure line and return line hoses to the retaining clips at the bottom and the side of the radiator.
Connect the pressure line pipe and the supply line hose to the inlet and outlet connections on the power steering pump.
On dual overhead cam (DOHC) engines, install the air cleaner housing, if removed.
Tighten:
- Tighten the air cleaner housing bolts to 12 N.m (106 lb in).
- Tighten the power steering pump pressure line union nut to 28 N.m (21 lb ft).
Fill the fluid reservoir with power steering fluid.
Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Refer to Bleeding the Power Steering System .
