Removal Procedure

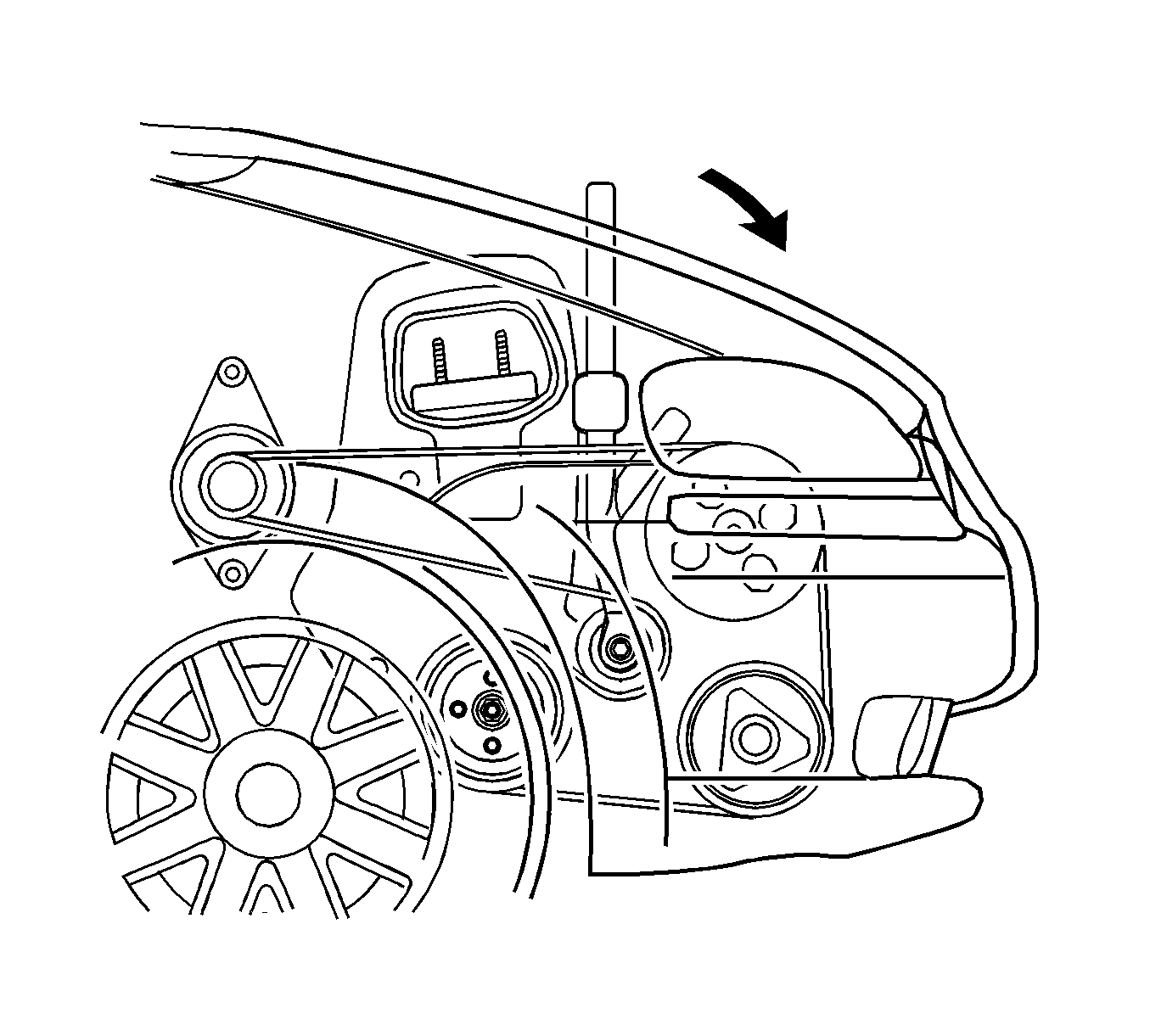

    Fig 1: Steering Pump Pulley & Bolt
    GM1248368Courtesy of GENERAL MOTORS CORP.
  1. Loosen the steering pump pulley bolt.
  2. Remove the pump drive belt from the pulley by moving the auto-tensioner.
  3. Remove the steering pump pulley bolt that connect the pulley to the pump.
  4. Remove the pulley from the pump.
