Installation Procedure

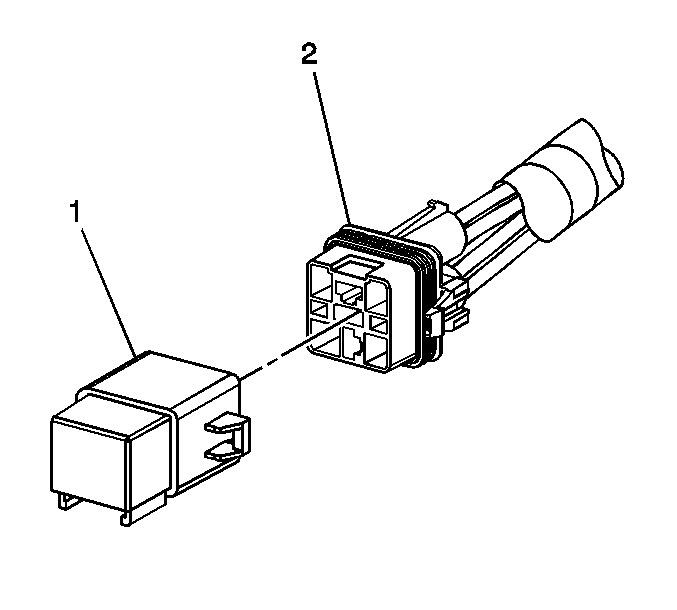

    Fig 1: Identifying Relay & Wire Harness Connector
    GM791846Courtesy of GENERAL MOTORS CORP.
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.
