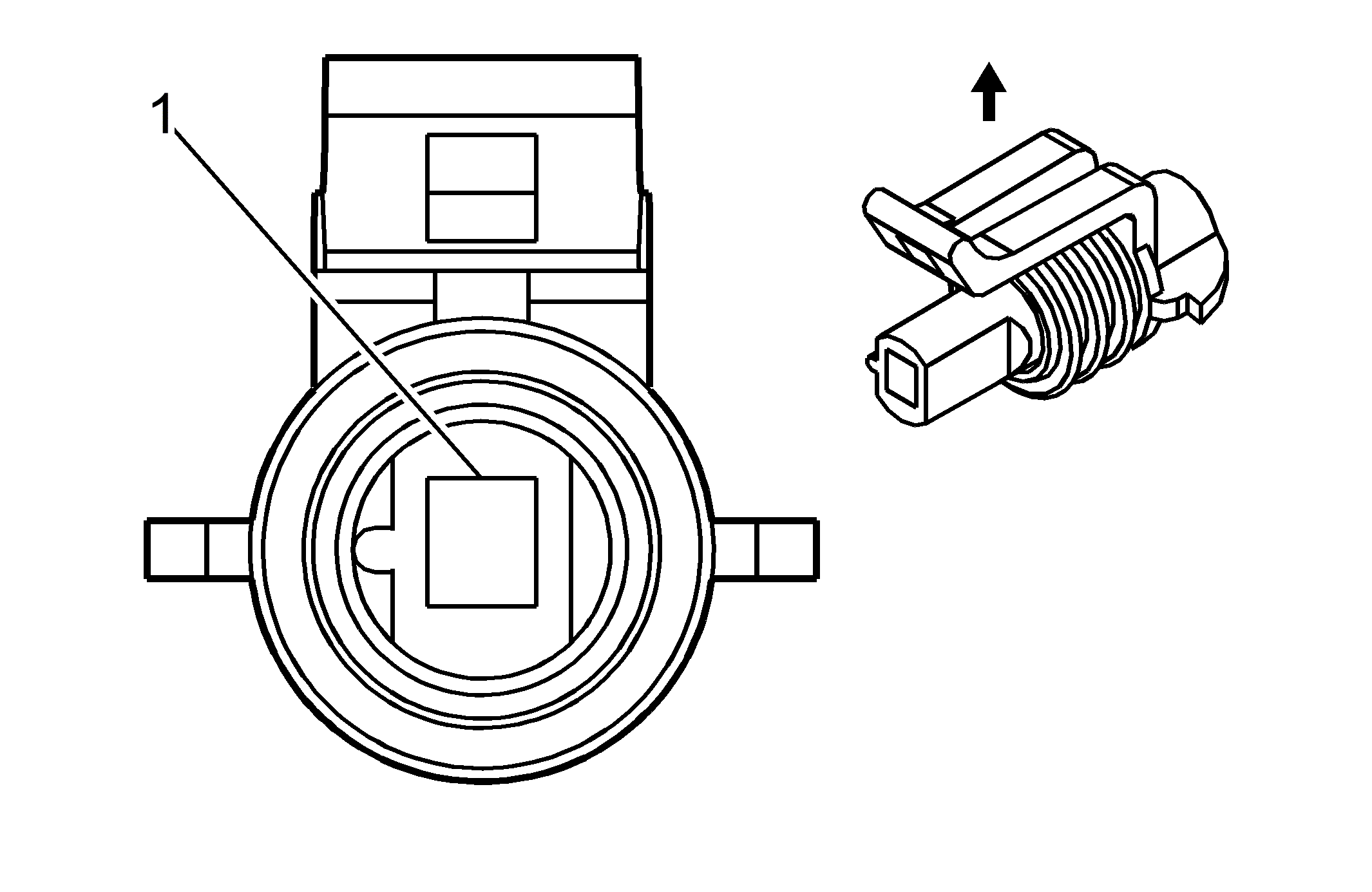

Oil Pressure Switch Connector End View

Oil Pressure Switch

GM95764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32104
  • 1-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 D-GN/WH 31 Oil Pressure Indicator Control
