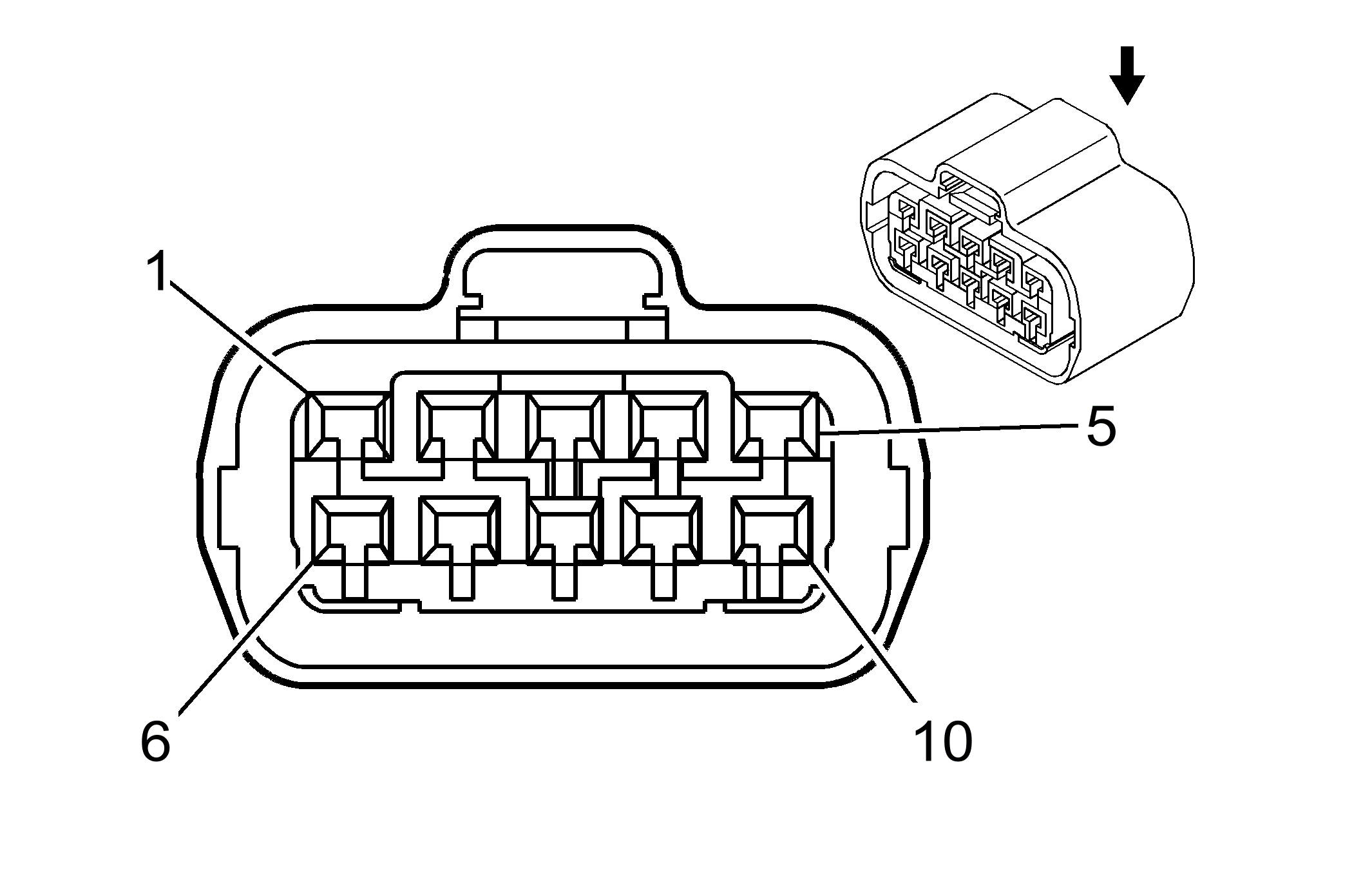

Automatic Transmission Connector End View
Automatic Transmission Connector
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 898 | Transmission Fluid Temperature Sensor Signal |
| 2 | PK | 1224 | Timing Valve Control |
| 3 | RD | 1226 | Pressure Control Solenoid Control |
| 4 | D-BU | 1225 | Torque Converter Clutch Solenoid Control |
| 5 | L-GN | 1222 | Shift Solenoid 1 Valve Control |
| 6 | OG/BK | 586 | Transmission Fluid Temperature Sensor Low Reference |
| 7 | - | - | Not Used |
| 8 | YE/BK | 1227 | Low Reference |
| 9 | - | - | Not Used |
| 10 | YE/BK | 1223 | Shift Solenoid 2 Valve Control |
