Disassembly Procedure

  1. Disconnect the negative battery cable.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  3. Remove the compressor. Refer to Compressor Replacement .
  4. Remove the clutch plate and hub assembly. Refer to Compressor Clutch Plate and Hub Assembly Removal .
  5. Remove the clutch rotor and bearing. Refer to Clutch Rotor and/or Bearing Removal .
  6. Mark the clutch coil terminal location on the compressor housing.
  7. Install the J 33023-A  (1) on the compressor housing. See Special Tools and Equipment . Also install the J 8433-1  (3) with theJ 33025  (4). See Special Tools and Equipment .

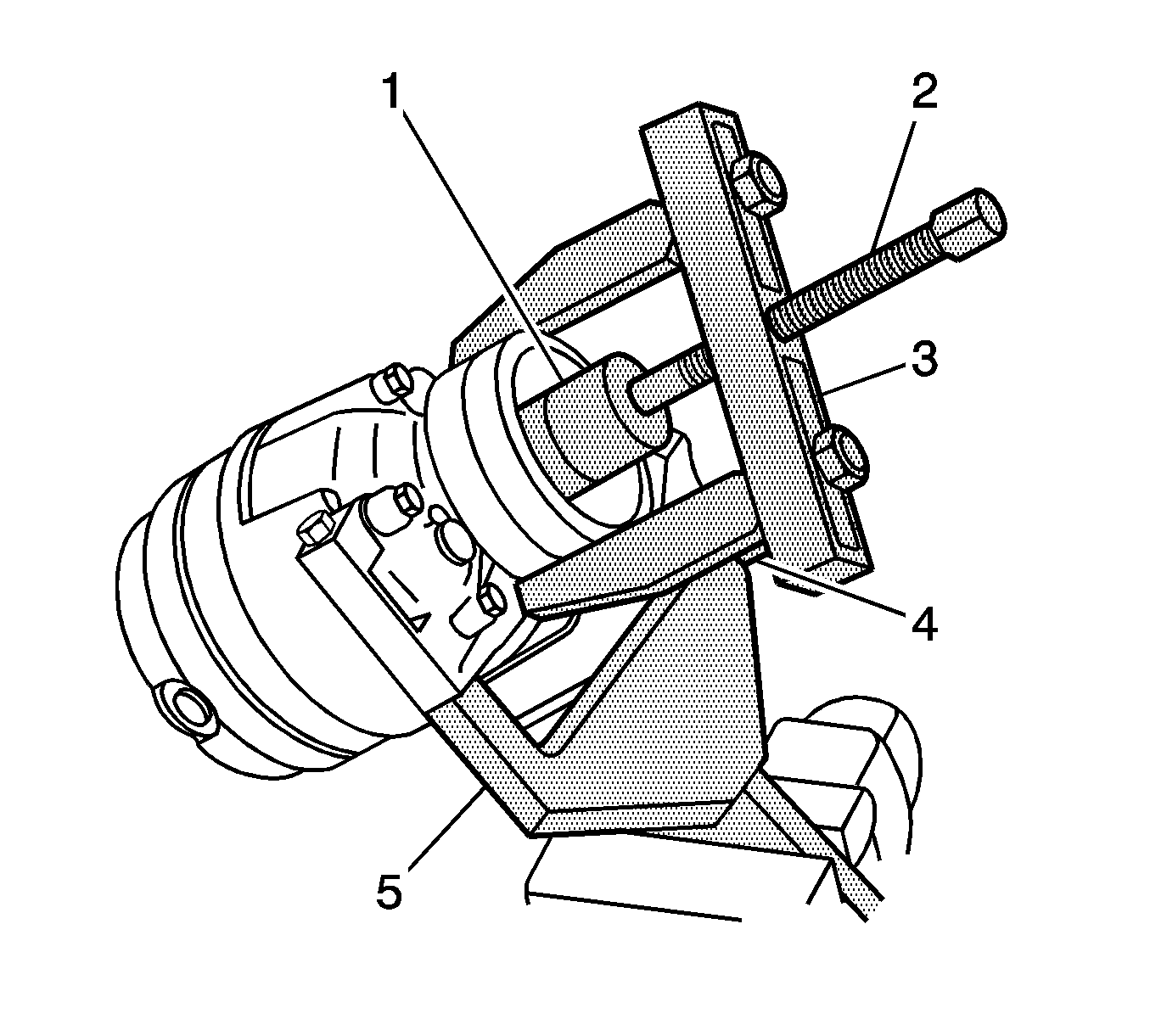

    Fig 1: Removing The Clutch Coil Using J 33023-A, J 8133-1, J 33025 & J 8433-3
    GM1251997Courtesy of GENERAL MOTORS CORP.
  8. Tighten the J 8433-3  (2) against theJ 33023-A  (1) to remove the clutch coil. See Special Tools and Equipment .
