Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.

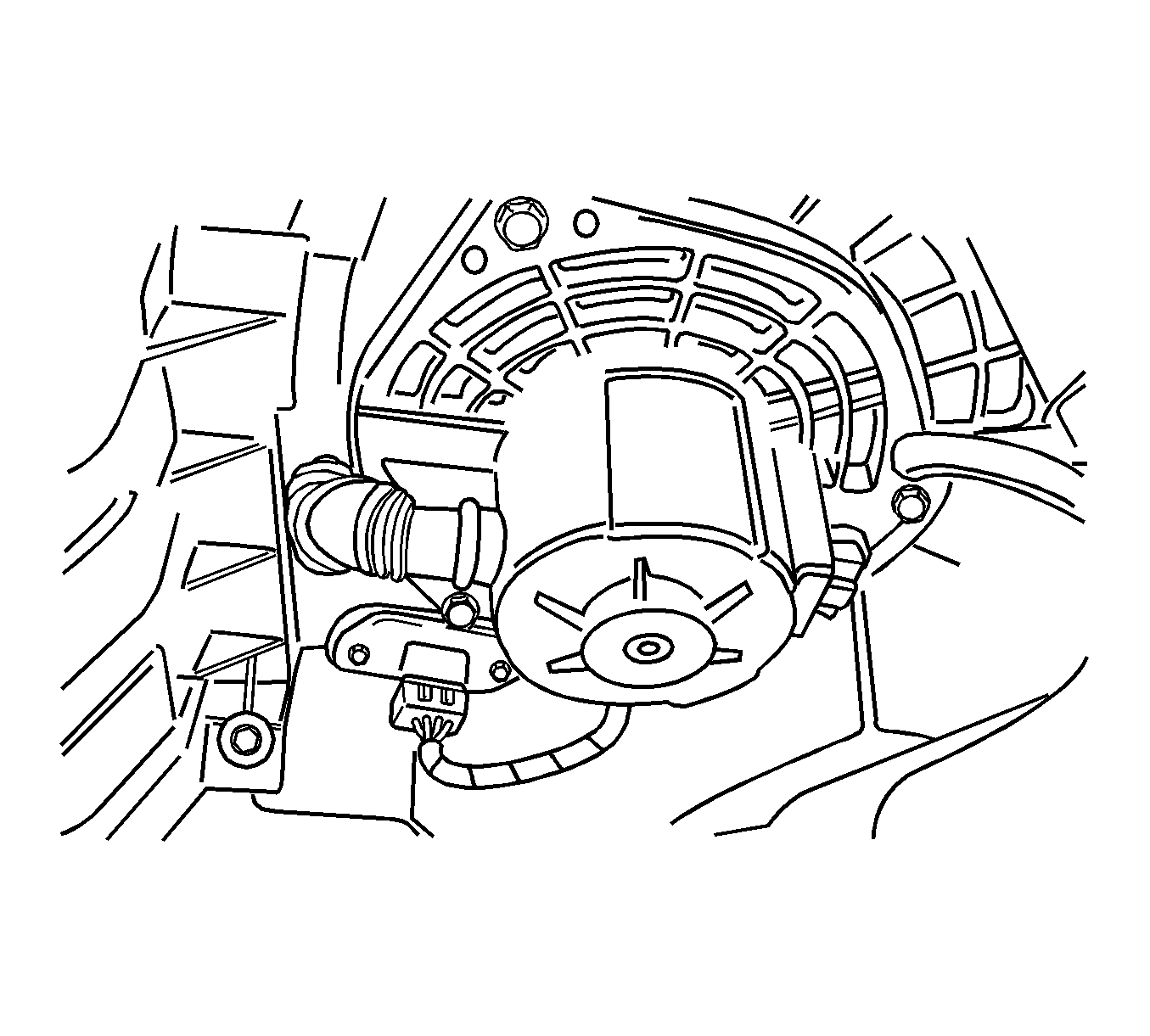

    Fig 1: Electrical Connector & Blower Motor Resistor
    GM1251909Courtesy of GENERAL MOTORS CORP.
  1. Install the new resistor into the heater/air distribution case with the screws.

    Tighten:  Tighten the blower resistor retaining screws to 6 N.m (53 lb in).

  2. Connect the electrical connector at the resistor.
  3. Connect the negative battery cable.
  4. Confirm the proper performance of the blower.
