Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the instrument panel fuse cover.
    Fig 1: Instrument Panel Fuse Cover
    GM1251912Courtesy of GENERAL MOTORS CORP.

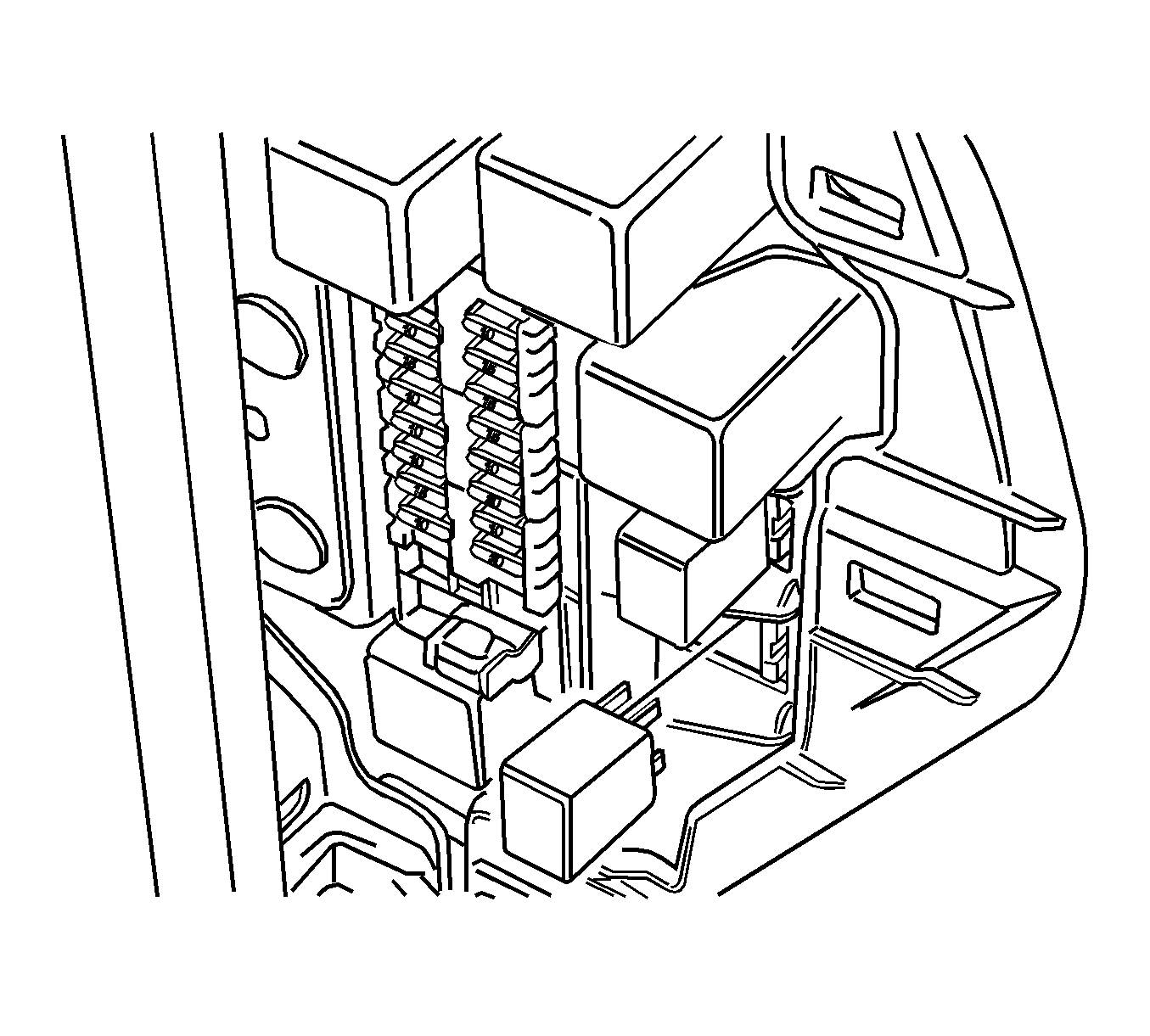

    3. Fig 2: Relay & Relay Box
    GM1251910Courtesy of GENERAL MOTORS CORP.
  3. Pull out the relay at the front of the relay box.
