Installation Procedure

  1. Align the relay contacts with the relay terminal slots.
  2. Push the relay firmly into the base. The relay must be seated and flushed with the base edge.
  3. Replace the instrument panel access panel.

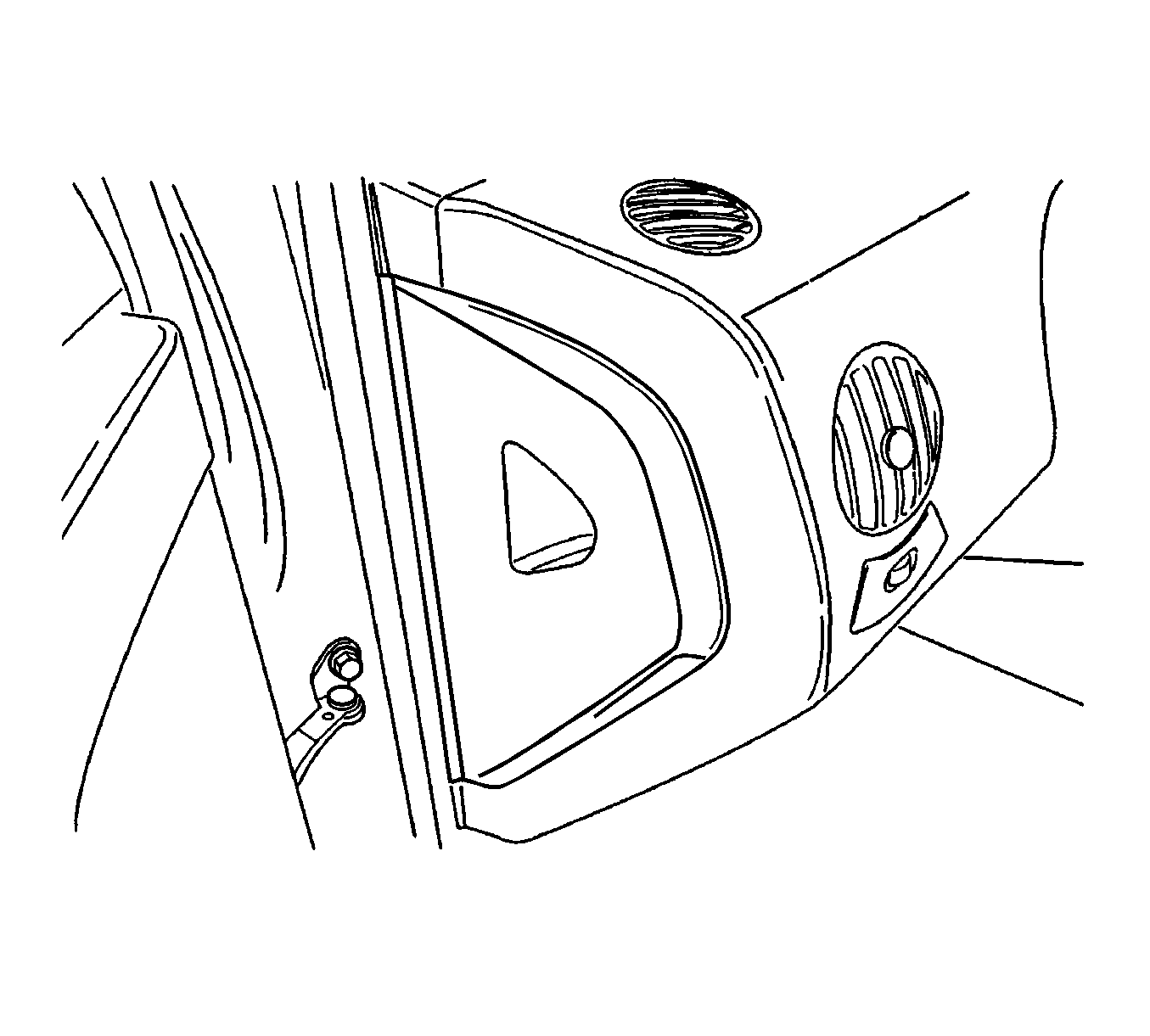

    Fig 1: Instrument Panel Fuse Cover
    GM1251912Courtesy of GENERAL MOTORS CORP.
  4. Replace the remote mirror/lighting control panel.
  5. Connect the negative battery cable.
