Disabling System

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Turn the steering wheel so that the vehicle's wheels are pointing straight ahead. Turn the ignition switch to the OFF position.
    1. Zone 3  - Locate and remove the SIR fuse from the Instrument Panel (I/P) fuse panel (1), which is located near the base of the steering column. See Fig 1 . Disconnect the battery negative cable. Remove the upper steering column trim cover. Release the inflatable restraint steering wheel module coil connector locking mechanism (3). Disconnect the inflatable restraint steering wheel module coil connector (1). See Fig 2 .
    2. Zone 5  - Open and remove the I/P compartment door. Release then unlock the I/P module connector (2). Disconnect the I/P module connector (2). See Fig 3 .
    3. Zone 8  - To disable zone 8, zones 3 and 5 must be disconnected.

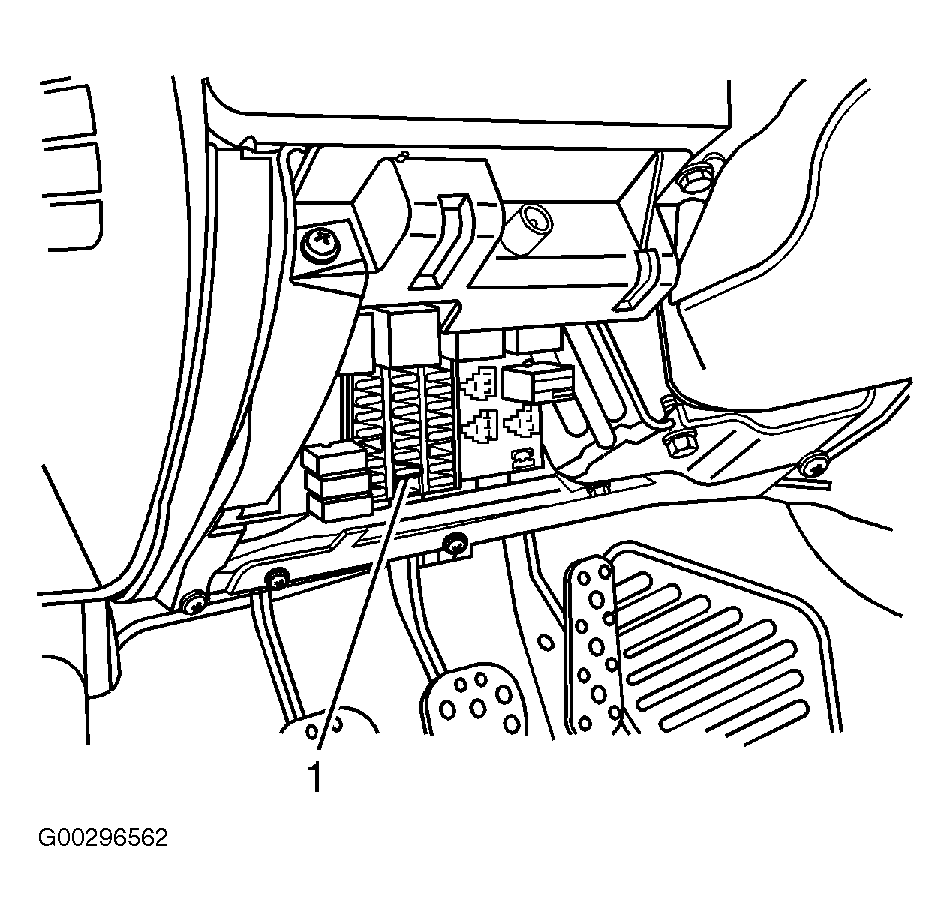

Fig 1: Identifying Fuse Block Under Steering Column
G00296562Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying SIR Connectors In Zone 3
G00296561Courtesy of GENERAL MOTORS CORP.

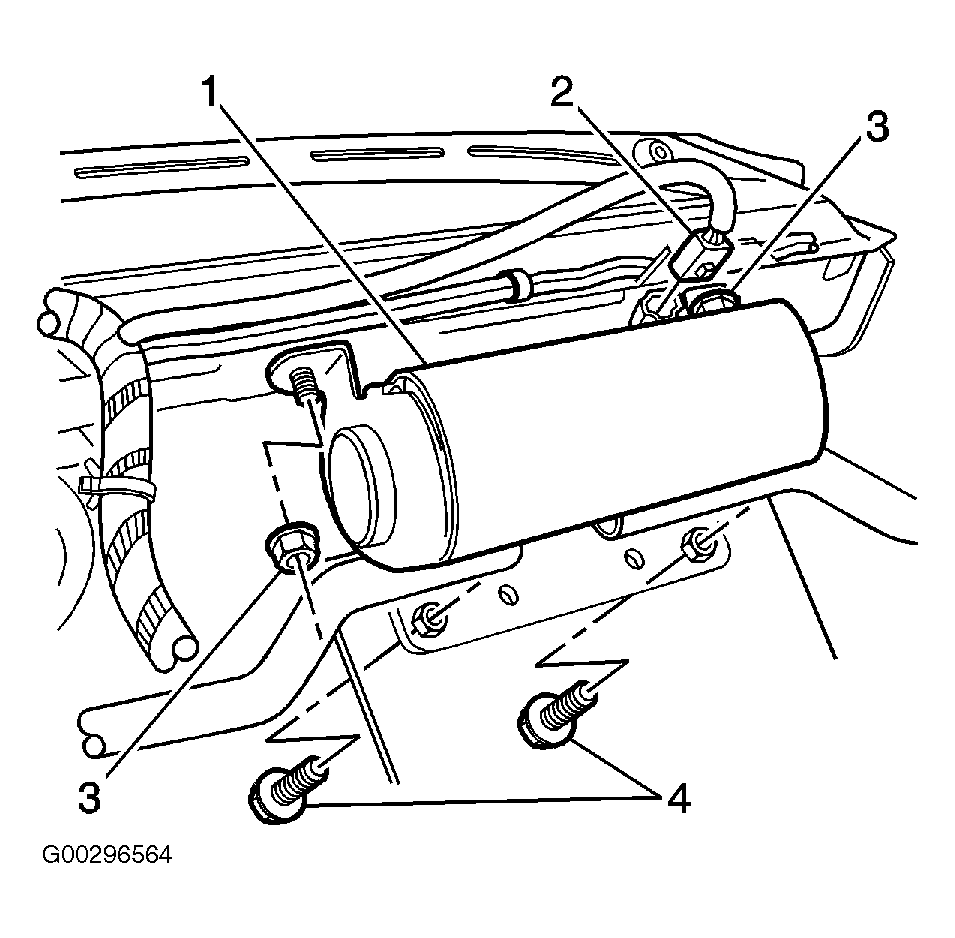

Fig 3: Identifying SIR Connectors In Zone 5
G00296564Courtesy of GENERAL MOTORS CORP.
