Disabling System

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Turn front wheels to straight-ahead position. Turn ignition switch to LOCK position and remove key from ignition switch. Remove rear seat cushion. Locate rear fuse block under rear seat cushion. Remove SIR fuse from rear fuse block. Wait one minute.
    1. Zone 1  - To disable inflatable restraint front end sensor located in SIR Zone 1, open front hood. Locate front end sensor sometimes referred to as Electronic Frontal Sensor (EFS). See Fig 1 . Remove Connector Position Assurance (CPA) clip from the EFS connector. Remove EFS connector from EFS.
    2. Zones 2 Or 6  - To disable inflatable restraint Side Impact Sensor (SIS) located in SIR Zone 2 (left) or Zone 6 (right), remove appropriate center pillar trim panel. Pull out on center pillar garnish molding to disengage retainer clips. Remove front and rear carpet retainer. Remove center pillar garnish molding. Remove appropriate side air bag sensor CPA clip from SIS. See Fig 2 . Remove SIS connector from SIS.
    3. Zone 3  - To disable driver air bag module and coil located in SIR Zone 3, remove driver side sound insulator. Remove CPA clip and disconnect Yellow 2-pin SIR connector at base of steering column. See Fig 3 .
    4. Zone 5  - To disable passenger air bag module located in SIR Zone 5, remove right sound insulator from bottom of instrument panel. Remove CPA clip from passenger air bag module Yellow connector located below instrument panel. See Fig 4 . Disconnect passenger air bag module Yellow connector from vehicle harness Yellow connector.
    5. Zones 7 Or 9  - To disable seat side air bag module and seat belt pretensioner located in SIR Zone 7 (left) or Zone 9 (right), move front seats fully forward. Remove both CPA clips from appropriate side air bag module and pretensioner Yellow connector located under driver or passenger seat. See Fig 5 . Disconnect Yellow connector from appropriate side air bag module and pretensioner Yellow harness connector.
    6. Zone 8  - To disable inflatable restraint Sensing and Diagnostic Module (SDM) located in SIR Zone 8, disable Zones 3, 5, 7 and 9. Remove CPA clip from components Yellow connector. Disconnect components Yellow connector from vehicle harness Yellow connectors.
    7. Zones 10 Or 12  - To disable rear inflatable restraint side air bag module located in SIR Zone 10 (left) or Zone 12 (right), remove rear seat back. Remove CPA clip from rear side air bag module Yellow connector. Disconnect side air bag module Yellow connector from vehicle harness Yellow connector. See Fig 6 .

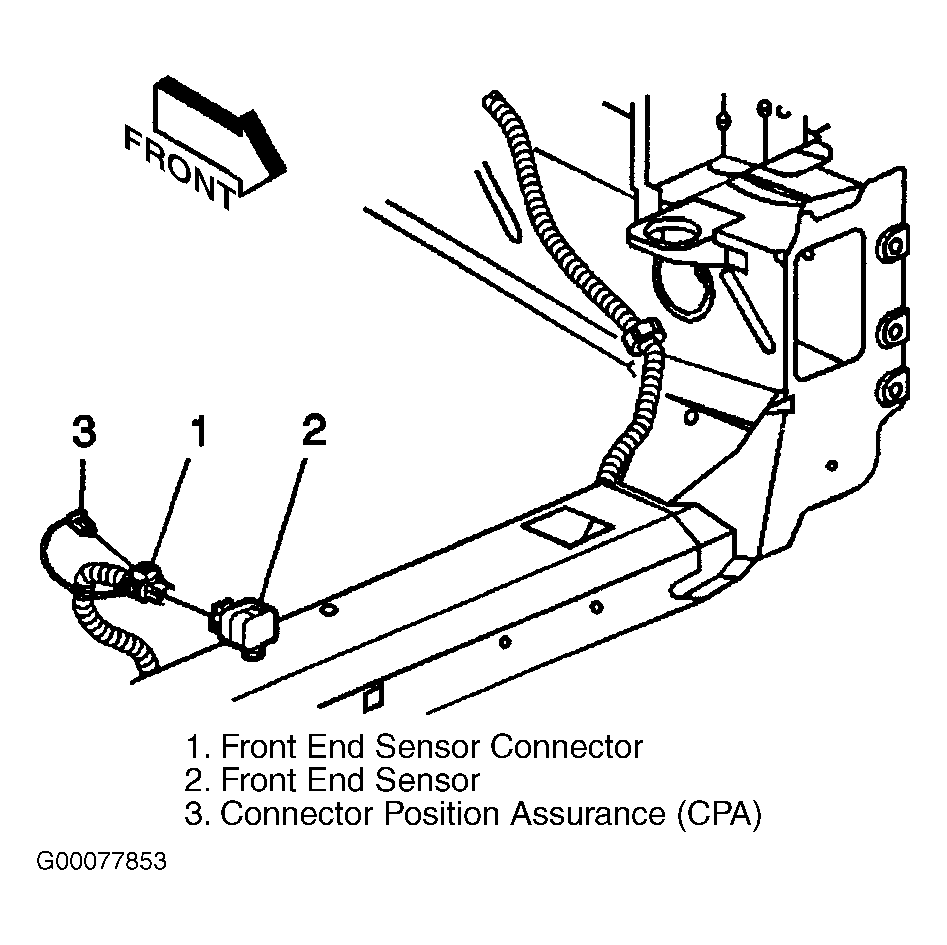

Fig 1: Locating Front End Sensor (DeVille & Seville)
G00077853Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Left Side Impact Sensor (SIS), Right Side Is Similar (DeVille & Seville)
G00077854Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Driver Air Bag Module Yellow Connector (DeVille & Seville)
G00077855Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Passenger Air Bag Yellow 2-Pin Connector (DeVille & Seville)
G99E00301Courtesy of GENERAL MOTORS CORP.
Fig 5: Locating Side Air Bag & Seat Belt Pretensioner Yellow Connector (DeVille & Seville)
G99E54472Courtesy of GENERAL MOTORS CORP.

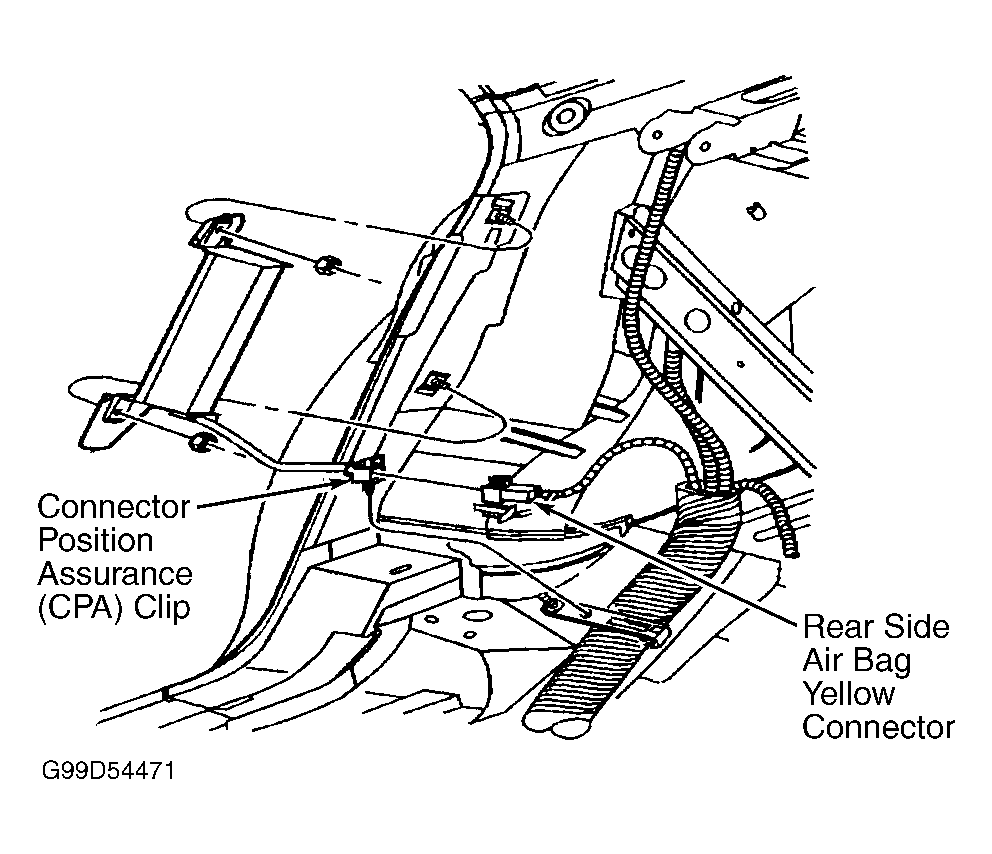

Fig 6: Locating Passenger Rear Air Bag Yellow Connector, Driver Side Is Similar (DeVille)
G99D54471Courtesy of GENERAL MOTORS CORP.
