Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Caliper Assembly Retaining Frame
    GM1245692Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Brake Caliper Notice .
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. To maintain wheel balance, mark the relative positions of the wheel and the hub, and remove the front wheel. Refer to Tire and Wheel Removal and Installation .
    3. IMPORTANT: It is not necessary to remove the caliper to service the brake shoes.
  3. Remove the lower bolt of the caliper assembly retaining frame.

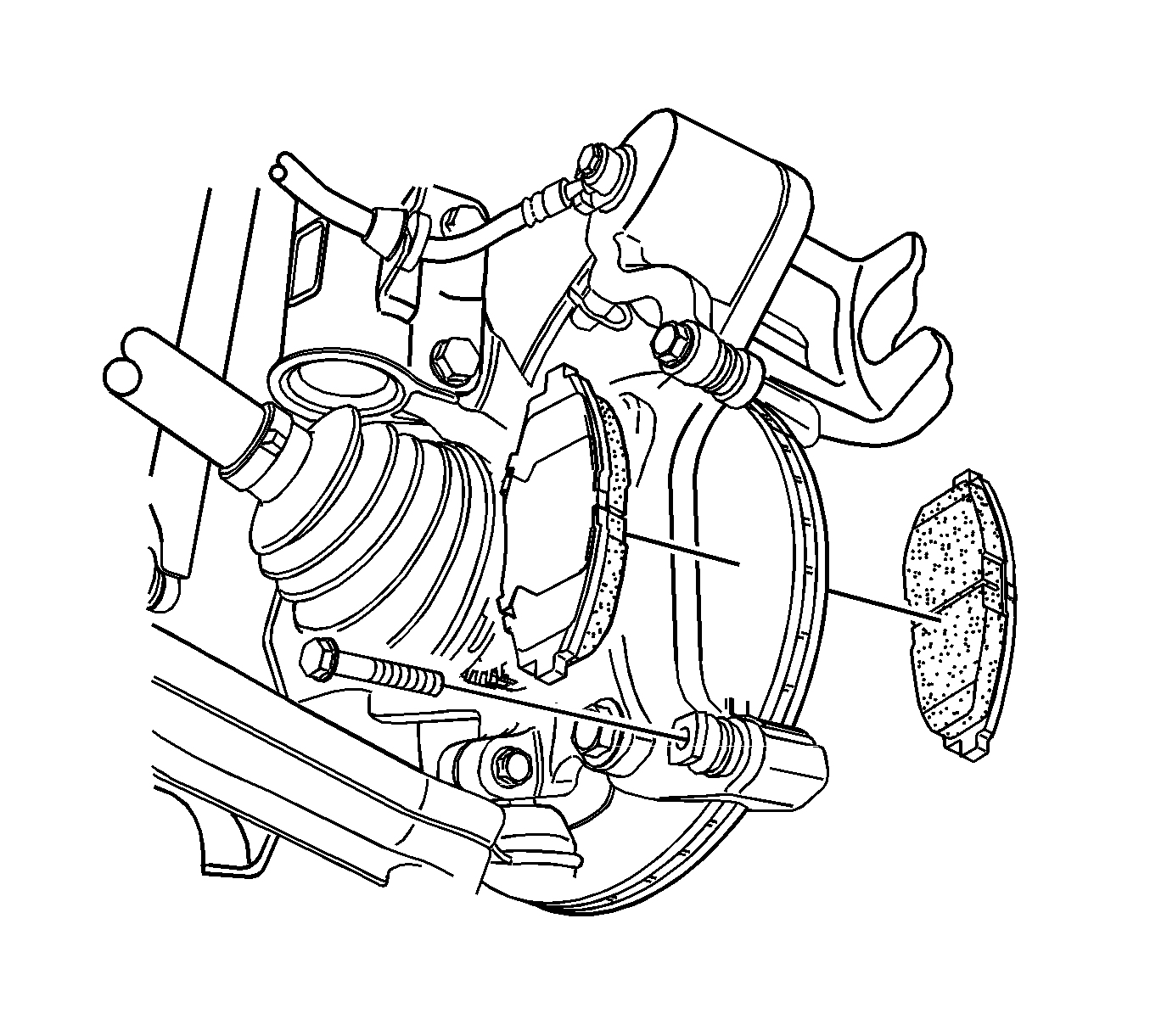

    4. Fig 2: View Of Brake Pads
    GM1245694Courtesy of GENERAL MOTORS CORP.
  4. Pull the caliper piston housing up.
    5. CAUTION: Refer to Brake Dust Caution .
  5. Remove the brake pads.
